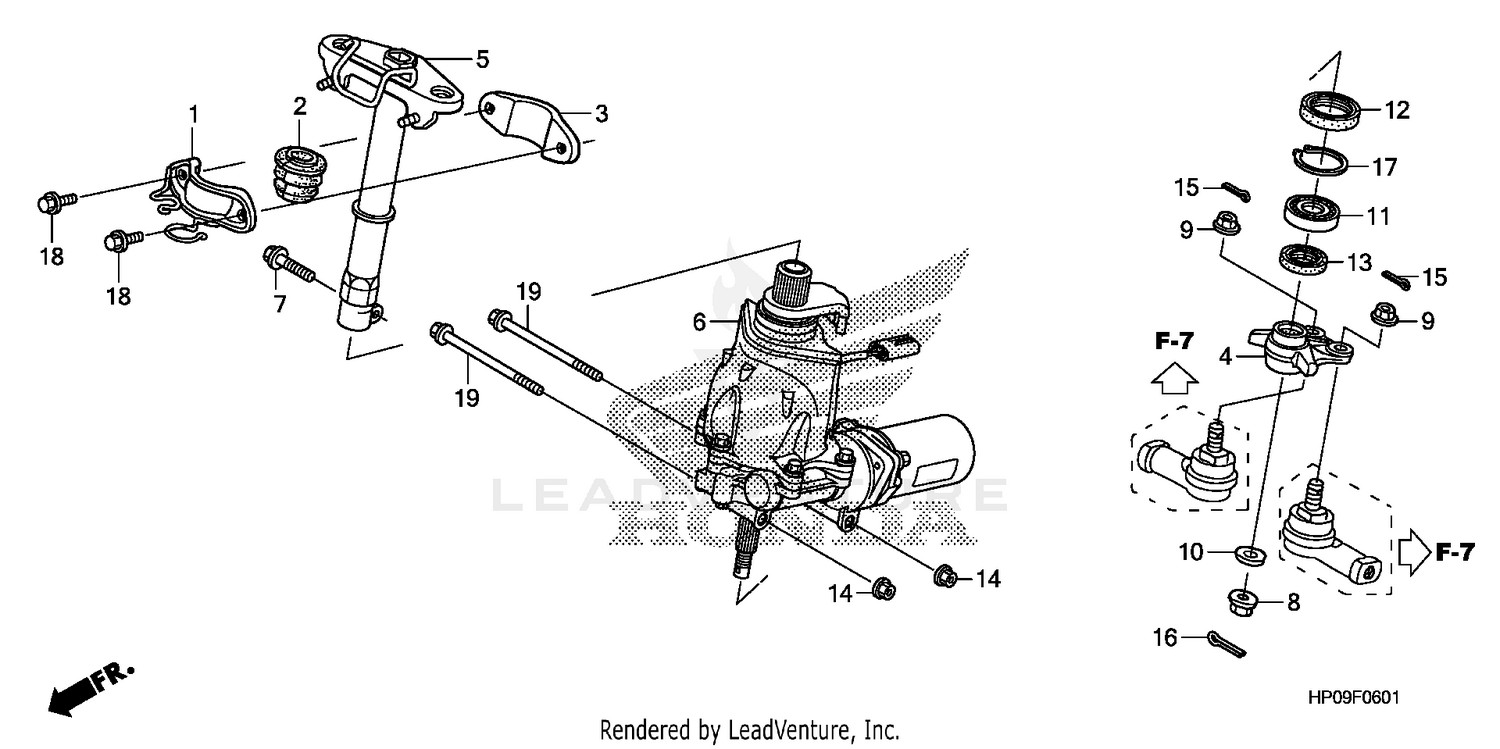

Steering Shaft (power Steering) (trx500fpe/fpm) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOLDER, STEERING SHAFT
53220-HP0-A00
|
$22.58 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSH, STEERING
53221-HP0-B01
|
$20.24 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER, STEERING SHAFT
53223-HP0-A00
|
$28.62 | ||
|
Available to order. Add to View Price |
|||
|
#4
ARM, STEERING
53235-HP0-B00
|
$30.53 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT, STEERING
53310-HP0-B00
|
$556.96 | ||
|
Available to order. Add to View Price |
|||
|
#6
POWER STEERING UNIT ASSY. (EPS) (CONTACT MC TECHLINE 800-421-1 900 OPTION #9 TO ORDER)
53600-HN2-B70
|
$1,615.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE (10X35)
90102-GEZ-000
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, SELF-LOCK (14MM)
90213-S73-003
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, SELF-LOCK (12MM)
90305-HC4-000
|
$5.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
WASHER, THRUST (14MM)
90402-HA0-000
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, SELF-ALIGNING BALL
91051-HP0-B01
|
$42.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
DUST SEAL (38X54X7)
91251-HP0-B02
|
$9.69 | ||
|
Available to order. Add to View Price |
|||
|
#13
DUST SEAL (27X40X5)
91252-HP0-B01
|
$7.33 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, FLANGE (8MM)
94050-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
PIN, SPLIT (2.0X22)
94201-20220
|
$1.08 | ||
|
Unavailable |
|||
|
#15
PIN, COTTER (2.0X35)
94201-20250
Superseded by 94201-20350
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, COTTER (2.0X35)
94201-20280
Superseded by 94201-20350
|
$1.08 | ||
|
Unavailable |
|||
|
#15
PIN, COTTER (2.0X35)
94201-20320
Superseded by 94201-20350
|
$1.08 | ||
|
Unavailable |
|||
|
#15
PIN, SPLIT (2.0X35)
94201-20350
|
$1.08 | ||
|
Unavailable |
|||
|
#16
PIN, COTTER (3.0X45)
94201-30250
Superseded by 94201-30450
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, COTTER (3.0X45)
94201-30300
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#16
PIN, COTTER (3.0X45)
94201-30400
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#16
PIN, SPLIT (3.0X45)
94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#17
CIRCLIP (INNER) (47MM)
94521-47000
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (8X16)
95701-08016-07
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, FLANGE (8X100)
95801-08100-00
|
$3.78 | ||
|
Unavailable |
|||
