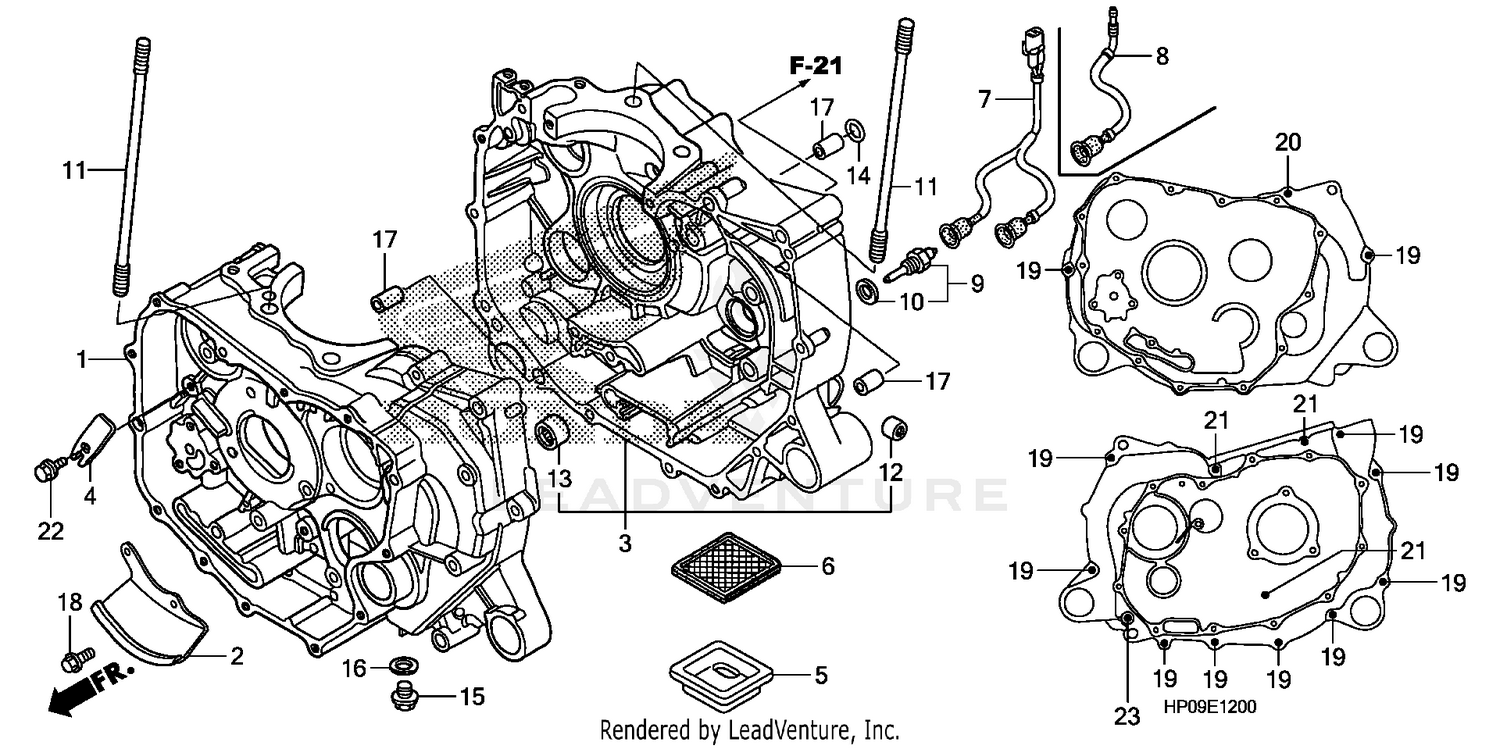

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE, FR.
11100-HP0-A00
Superseded by 11100-HP0-A01
|
$599.00 | ||
|
Available to order. Add to View Price |
|||
|
#1
CRANKCASE, FR.
11100-HP0-A01
|
$599.00 | ||
|
Unavailable |
|||
|
#2
PLATE, OIL SEPARATE
11150-HP0-A01
|
$15.17 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANKCASE SET, RR.
11210-HP0-305
|
$540.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, CAM FIXING
14115-HM7-000
|
$8.04 | ||
|
Available to order. Add to View Price |
|||
|
#5
STRAINER, OIL
15153-HN5-670
|
$7.51 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREEN, OIL FILTER
15421-HC4-005
Superseded by 15421-HR3-A40
|
$14.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
SUB-HARNESS, ENGINE
32103-HP0-A10
|
$31.76 | ||
|
Available to order. Add to View Price |
|||
|
#9
SENSOR ASSY., THERMOSTAT OIL (TOYO)
37750-HC4-751
|
$75.84 | ||
|
Available to order. Add to View Price |
|||
|
#9
SENSOR ASSY., THERMOSTAT OIL (TOYO)
37750-HN5-M41
Superseded by 37750-HC4-751
|
$75.84 | ||
|
Unavailable |
|||
|
#10
WASHER, SEALING
37751-HN5-M40
Superseded by 90401-HA8-000
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SEALING
90401-HA8-000
|
$4.80 | ||
|
Unavailable |
|||
|
#10
WASHER, SEALING
90401-HC4-750
Superseded by 90401-HA8-000
|
$4.80 | ||
|
Unavailable |
|||
|
#11
BOLT, STUD (10X190)
90032-HP0-A00
|
$8.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING, NEEDLE (14X20X12) (TORRINGTON)
91105-HN0-671
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING, NEEDLE (20X26X12)
91106-HN0-671
|
$17.38 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (7.5X1.5)
91302-HB3-004
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, DRAIN PLUG (12MM)
92800-12000
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WASHER, DRAIN PLUG (12MM)
94109-12000
|
$1.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X16)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X40)
95701-06040-00
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X55)
95701-06055-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X75)
95701-06075-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (8X16)
95701-08016-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X140)
95801-06140-00
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
