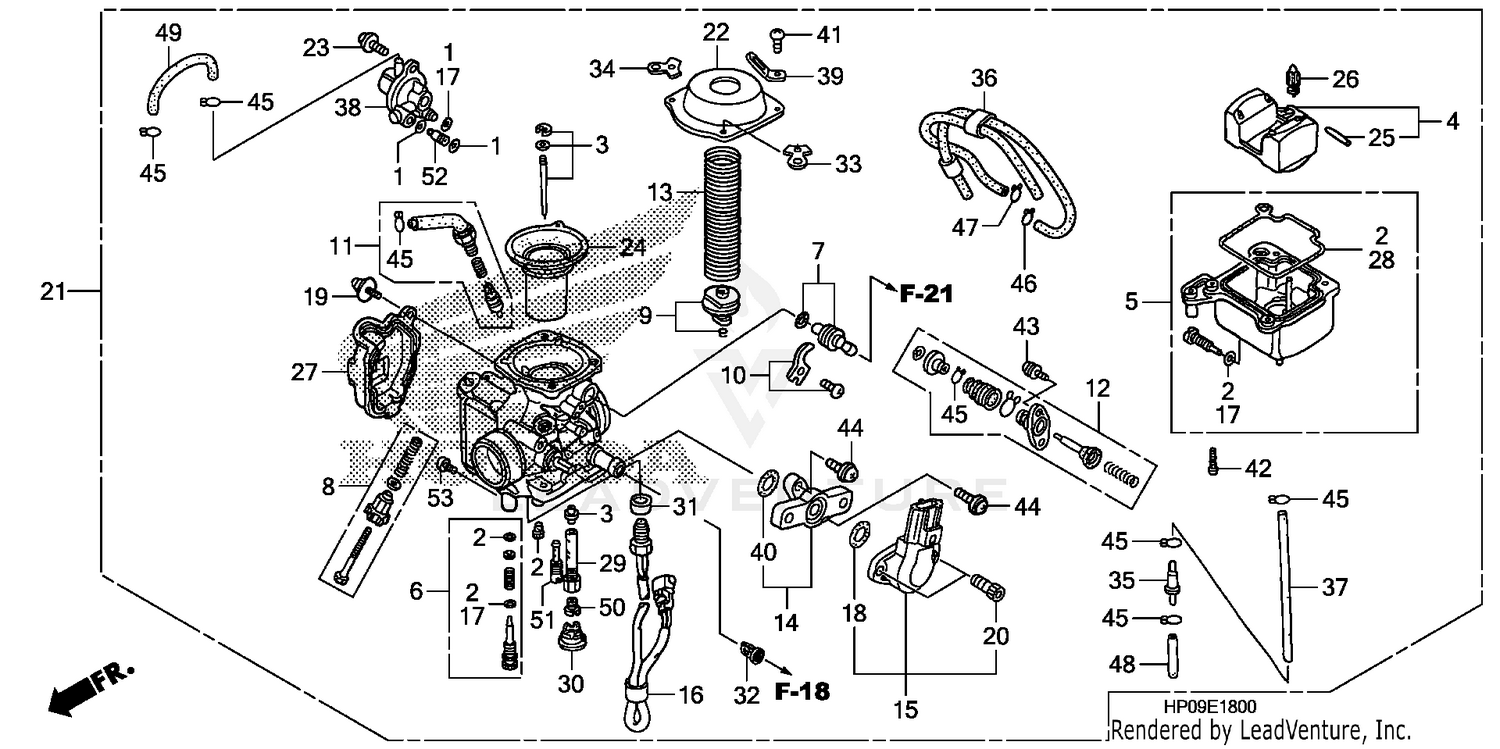

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET C
16010-HM7-670
Superseded by 16041-MZ5-600
|
$21.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
GASKET SET
16010-HN7-003
|
$21.16 | ||
|
Available to order. Add to View Price |
|||
|
#3
NEEDLE SET, JET
16012-HP0-A01
|
$23.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
FLOAT SET
16013-HN8-003
|
$47.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
CHAMBER SET, FLOAT
16015-HP0-A01
|
$47.22 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW SET
16016-HP0-A01
|
$25.47 | ||
|
Available to order. Add to View Price |
|||
|
#7
JOINT SET
16026-MR1-004
|
$49.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW SET
16028-HP0-A01
|
$24.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
VALVE, STARTER
16046-HN2-003
|
$67.24 | ||
|
Available to order. Add to View Price |
|||
|
#12
PUMP SET
16048-HM7-700
Superseded by 16048-HN7-003
|
$106.24 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, COMPRESSION COIL
16050-HP0-A01
|
$11.33 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER SET, THROTTLE SENSOR
16060-HP0-A02
|
$36.85 | ||
|
Available to order. Add to View Price |
|||
|
#15
CARBURETOR ASSY
16061-HP0-A01
Superseded by 16061-HP0-A02
|
$272.05 | ||
|
Unavailable |
|||
|
#16
HEATER ASSY.
16070-HP0-A01
|
$75.33 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING (1.3X4.3)
16075-GHB-640
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING
16075-HN2-A21
|
$3.44 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW-WASHER
16080-HC0-003
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, BREAK HEAD
16083-HP0-A01
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#21
CARBURETOR ASSY
16100-HP0-A03
Superseded by 16100-HP0-A04
|
$730.38 | ||
|
Available to order. Add to View Price |
|||
|
#22
TOP
16107-HN2-003
|
$40.76 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW
16108-MW0-750
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#24
PISTON, VACUUM
16111-HN2-003
|
$144.66 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, ARM
16152-HN8-003
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
|
#26
VALVE, FLOAT
16155-HN7-003
|
$35.00 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER, BODY
16157-HN8-003
|
$33.33 | ||
|
Available to order. Add to View Price |
|||
|
#28
GASKET, FLOAT CHAMBER
16163-MEA-671
|
$28.07 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOLDER, NEEDLE JET
16165-HN2-003
|
$39.05 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOLDER, JET
16168-HC4-003
|
$14.82 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR, SETTING
16172-KEB-610
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREEN, FUEL STRAINER
16176-MW3-A80
|
$8.58 | ||
|
Available to order. Add to View Price |
|||
|
#33
BINDER
16178-HP0-A01
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
BINDER
16179-HP0-A01
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
VALVE, ONE-WAY
16180-HC4-003
|
$21.84 | ||
|
Available to order. Add to View Price |
|||
|
#36
TUBE, AIR VENT
16196-HP0-A01
|
$10.20 | ||
|
Available to order. Add to View Price |
|||
|
#37
TUBE
16198-HP0-A01
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#38
VALVE ASSY., AIR CUT
16510-MBW-601
|
$141.51 | ||
|
Available to order. Add to View Price |
|||
|
#40
O-RING (14.8X1.9)
91304-PT0-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#41
SCREW, PAN (4X8)
93500-04008-0H
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#41
SCREW, PAN (4X8)
93500-04008-1H
Superseded by 93500-04008-0H
|
$0.95 | ||
|
Unavailable |
|||
|
#42
SCREW, PAN (4X14)
93500-04014-0H
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#42
SCREW, PAN (4X14)
93500-04014-1H
Superseded by 93500-04014-0H
|
$0.87 | ||
|
Unavailable |
|||
|
#43
SCREW-WASHER (4X12)
93892-04012-08
|
$0.67 | ||
|
Unavailable |
|||
|
#43
SCREW-WASHER (4X12)
93892-04012-18
Superseded by 93892-04012-08
|
$0.67 | ||
|
Unavailable |
|||
|
#44
SCREW-WASHER (5X14)
93892-05014-08
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#44
SCREW-WASHER (5X14)
93892-05014-18
Superseded by 93892-05014-08
|
$1.15 | ||
|
Unavailable |
|||
|
#45
CLIP, TUBE (B7)
95002-02079
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#46
CLIP, TUBE (B8)
95002-02089
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#47
CLIP, TUBE (B6.5)
95002-02659
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#50
JET, MAIN (#158)
99101-HN2-1580
|
$13.07 | ||
|
Available to order. Add to View Price |
|||
|
#50
JET, MAIN (#162)
99101-HP0-1620
|
$9.40 | ||
|
Available to order. Add to View Price |
|||
|
#51
JET, SLOW (#45)
99104-HN2-0450
Superseded by 99104-KPF-0450
|
$14.36 | ||
|
Available to order. Add to View Price |
|||
|
#52
JET (#170)
99108-HP0-1700
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#53
JET (#60)
99112-HP0-0600
|
$9.80 | ||
|
Available to order. Add to View Price |
|||
