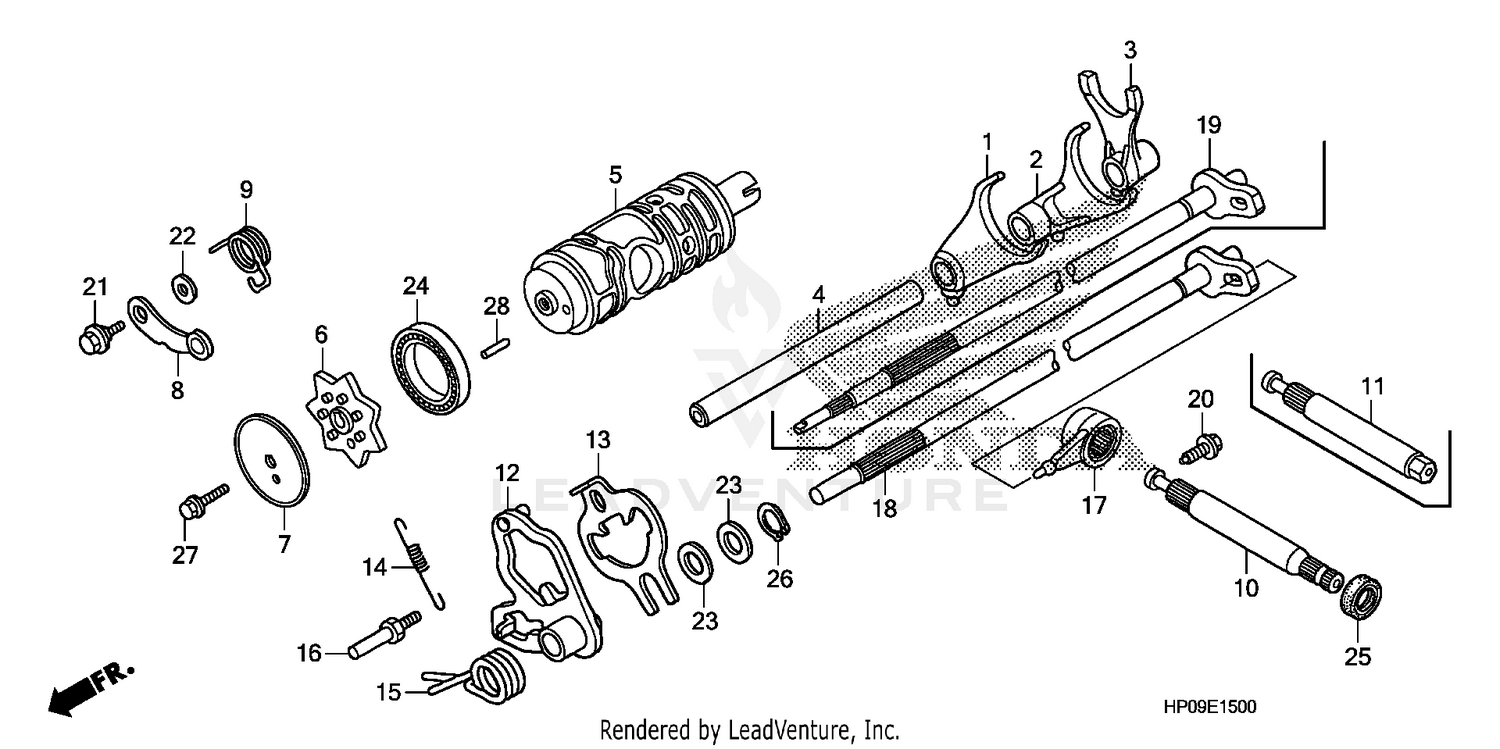

Gearshift Drum Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK, FR. GEARSHIFT
24211-HM7-000
|
$104.58 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK, CENTER GEARSHIFT
24212-HM7-000
|
$104.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWINGARM, GEARSHIFT
24213-HP0-A00
|
$68.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT, GEARSHIFT FORK GUIDE
24241-HP0-A50
Superseded by 24241-HP0-A51
|
$28.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT, GEARSHIFT FORK GUIDE
24241-HP0-A51
|
$28.11 | ||
|
Unavailable |
|||
|
#5
DRUM, GEARSHIFT
24301-HP0-A00
|
$121.36 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIFTER, DRUM
24321-HM8-B40
|
$28.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, SHIFT GUIDE
24328-HB3-000
|
$9.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
STOPPER, GEARSHIFT DRUM
24430-HB3-000
|
$16.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, SHIFT DRUM STOPPER
24435-HB3-770
|
$5.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPINDLE, SECONDARY GEARSHIFT
24611-HP0-A10
|
$47.73 | ||
|
Available to order. Add to View Price |
|||
|
#12
ARM, GEARSHIFT MASTER
24620-HM7-000
|
$29.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, GEARSHIFT
24631-HM7-010
|
$11.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, SHIFT ARM
24641-HB3-004
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, GEARSHIFT RETURN
24651-HN0-A10
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, RETURN SPRING
24652-KY4-900
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#17
ARM A, GEARSHIFT
24661-HP0-A00
|
$27.96 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPINDLE, SUB-GEARSHIFT
24680-HP0-A10
|
$136.18 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, SPECIAL FLANGE (6X15.2)
90009-HN5-670
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT
90023-MR5-670
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, DRUM STOPPER
90417-360-000
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, THRUST (12MM)
90451-GF6-000
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING, RADIAL BALL (6807) (KOYO)
91010-HB7-003
|
$68.27 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL (14X24X6) (ARAI)
91202-444-023
|
$4.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
CIRCLIP (OUTER) (12MM)
94510-12000
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X20)
95701-06020-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
ROLLER (4X13.8)
96220-40138
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
