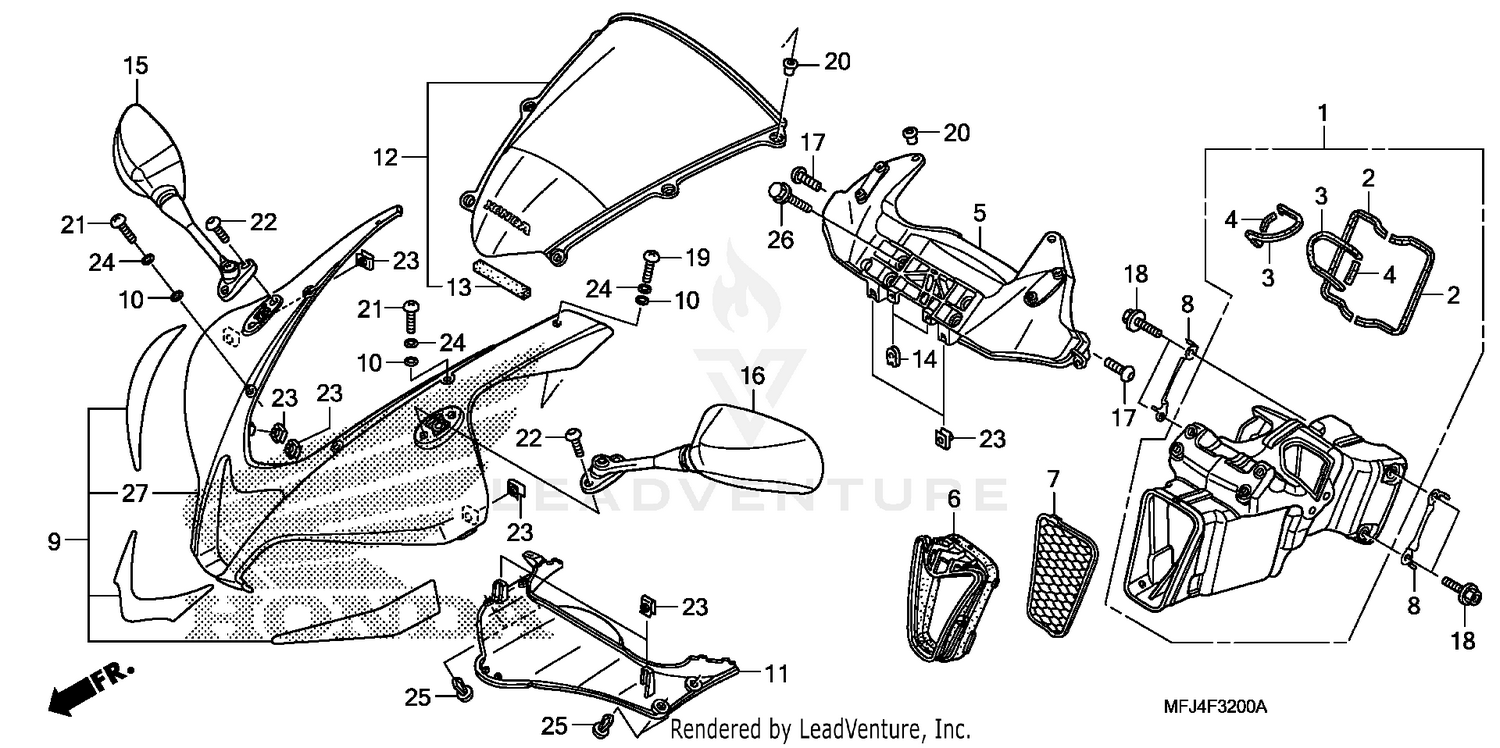

Upper Cowl Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DUCT, AIR IN.
17300-MFJ-A00
|
$235.22 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL A, AIR IN. DUCT
17311-MFJ-D00
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL C, AIR IN. DUCT
17313-MFJ-D00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL D, AIR IN. DUCT
17314-MFJ-D00
|
$1.33 | ||
|
Available to order. Add to View Price |
|||
|
#5
STAY, MIRROR & METER
17340-MFJ-A40
|
$124.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
ATTACHMENT, DUCT
17370-MFJ-D01
|
$20.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
GRILL, AIR IN. DUCT
17380-MFJ-D00
|
$24.58 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, TONGUED
17390-MFJ-D00
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COWL SET (UPPER) (TYPE1) (WL)
64100-MFJ-A40ZE
|
$387.20 | ||
|
Unavailable |
|||
|
#9
COWL SET (UPPER) (TYPE3) (WL)
64100-MFJ-A40ZG
|
$379.60 | ||
|
Unavailable |
|||
|
#10
WASHER, SCREEN SETTING
64205-166-610
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPOILER, FR.
64220-MFJ-D00
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
WINDSCREEN SET (TYPE1) (WL)
64250-MFJ-D00ZA
|
$243.44 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL, SPONGE
64251-MFJ-D00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, CLIP (4MM)
64521-MN5-000
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#15
MIRROR ASSY., R. BACK (COO)
88110-MEL-013
Superseded by 88110-MEL-305
|
$101.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
MIRROR ASSY., L. BACK (COO)
88120-MEL-013
Superseded by 88120-MEL-305
|
$101.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, SPECIAL (6X17)
90085-MZ1-000
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X20)
90102-MN1-670
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, TRUSS (5X15)
90109-MCJ-750
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
NUT, COWL SETTING (5MM)
90111-KW3-003
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, TRUSS (5X18)
90111-MEL-000
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, SOCKET (6X13)
90130-MEE-000
|
$2.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
NUT, CLIP (5MM)
90312-MT3-000
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, THRUST (5MM)
90504-964-000
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP, BODY COVER
90683-GR1-003
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
