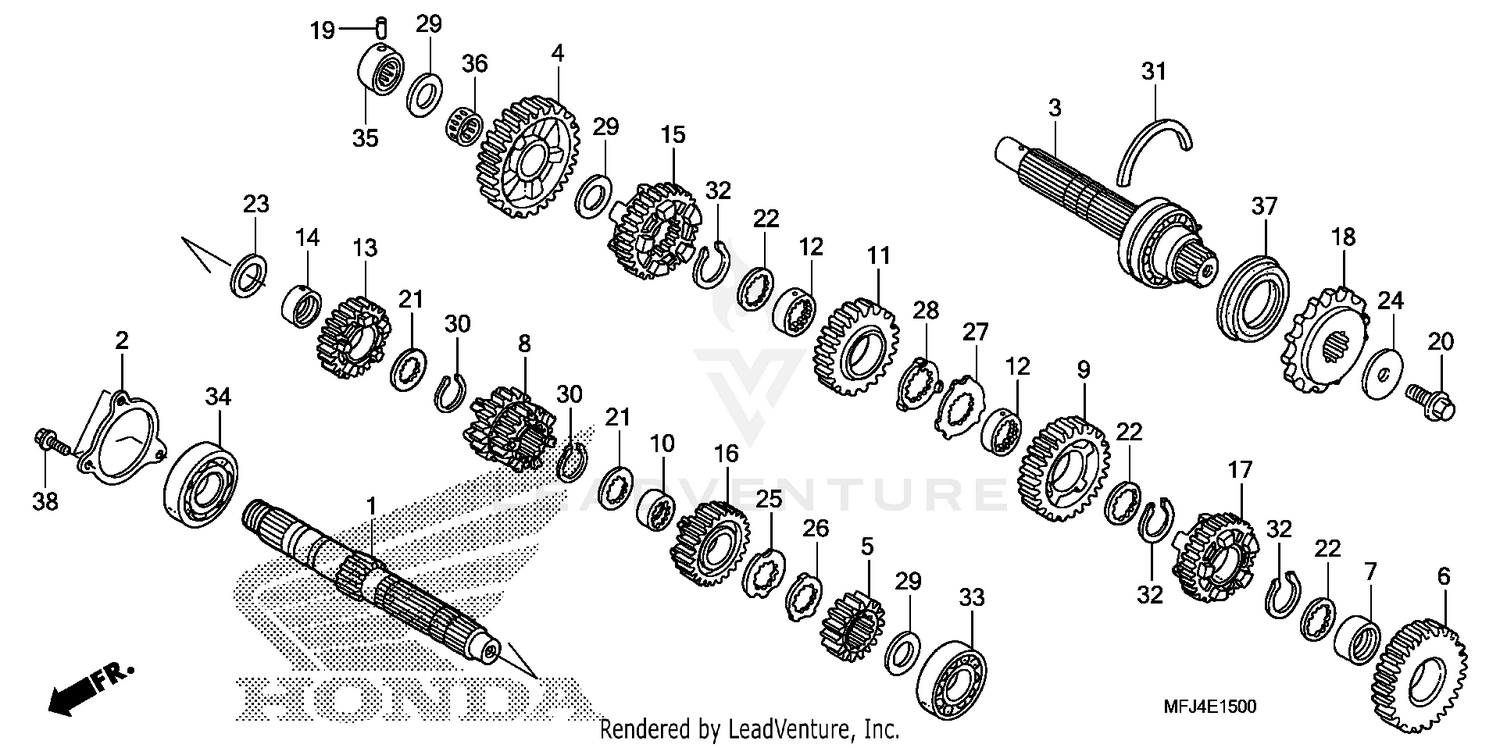

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT (12T)
23211-MFJ-D00
|
$198.40 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, BEARING SETTING
23212-MFJ-D00
|
$13.73 | ||
|
Available to order. Add to View Price |
|||
|
#3
COUNTERSHAFT
23220-MFJ-A40
|
$209.42 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, COUNTERSHAFT FIRST (33T)
23421-MFJ-D00
|
$139.02 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, MAINSHAFT SECOND (16T)
23431-MFJ-D00
|
$67.96 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, COUNTERSHAFT SECOND (32T)
23441-MFJ-D00
|
$139.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR (28MM)
23442-MM4-000
|
$26.98 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, MAINSHAFT THIRD & FOURTH (18T/18T)
23451-MFJ-D00
|
$166.07 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, COUNTERSHAFT THIRD (30T)
23461-MFJ-D00
|
$139.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, SPLINE (25X28X15)
23472-MR1-000
|
$26.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, COUNTERSHAFT FOURTH (26T)
23481-MFJ-D00
|
$132.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, SPLINE (28X31X9)
23482-MV9-670
|
$21.91 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, MAINSHAFT FIFTH (23T)
23491-MFJ-D00
|
$123.64 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR (25X14)
23495-MEE-000
|
$13.33 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, COUNTERSHAFT FIFTH (30T)
23501-MFJ-D00
|
$156.91 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, MAINSHAFT SIXTH (24T)
23511-MFJ-D00
|
$123.64 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR, COUNTERSHAFT SIXTH (29T)
23521-MFJ-D00
|
$150.44 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPROCKET, DRIVE (16T)
23801-MEE-D00
|
$69.96 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, GEARSHIFT FORK GUIDE
24261-283-000
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, SPECIAL (10MM)
90037-422-003
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPLINE (25X31X1.5)
90451-KY2-000
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPLINE (28X34X1.5)
90452-MR7-000
|
$7.24 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, THRUST (25MM)
90456-MA6-000
|
$3.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
WASHER (10.2MM)
90459-438-000
|
$7.33 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPLINE (25MM)
90461-MW0-000
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, LOCK (25MM)
90462-MBW-000
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPLINE (28MM)
90463-MR7-000
|
$12.07 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, LOCK (28MM)
90464-MR7-000
|
$12.07 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, THRUST (20X0.9)
90469-ME5-000
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
CIRCLIP (25MM)
90601-107-000
|
$4.71 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
SET-RING (62MM)
90602-ML7-000
|
$10.33 | ||
|
Available to order. Add to View Price |
|||
|
#32
CIRCLIP (28MM)
90603-MN4-000
|
$4.71 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
BEARING, RADIAL BALL (6204U) (TOYO)
91001-464-003
|
$26.44 | ||
|
Available to order. Add to View Price |
|||
|
#34
BEARING, BALL (6305)
91004-MFJ-D01
|
$19.71 | ||
|
Available to order. Add to View Price |
|||
|
#35
BEARING, NEEDLE (20X34X16.8) (NTN)
91023-MKP-D01
|
$38.15 | ||
|
Available to order. Add to View Price |
|||
|
#35
BEARING, NEEDLE (20X34X16.8) (NTN)
91023-MM4-003
Superseded by 91023-MKP-D01
|
$38.15 | ||
|
Unavailable |
|||
|
#36
BEARING, NEEDLE (20X24X11)
91026-MN0-003
|
$31.60 | ||
|
Available to order. Add to View Price |
|||
|
#37
OIL SEAL (40X62X8.4)
91207-MAL-601
|
$16.36 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
