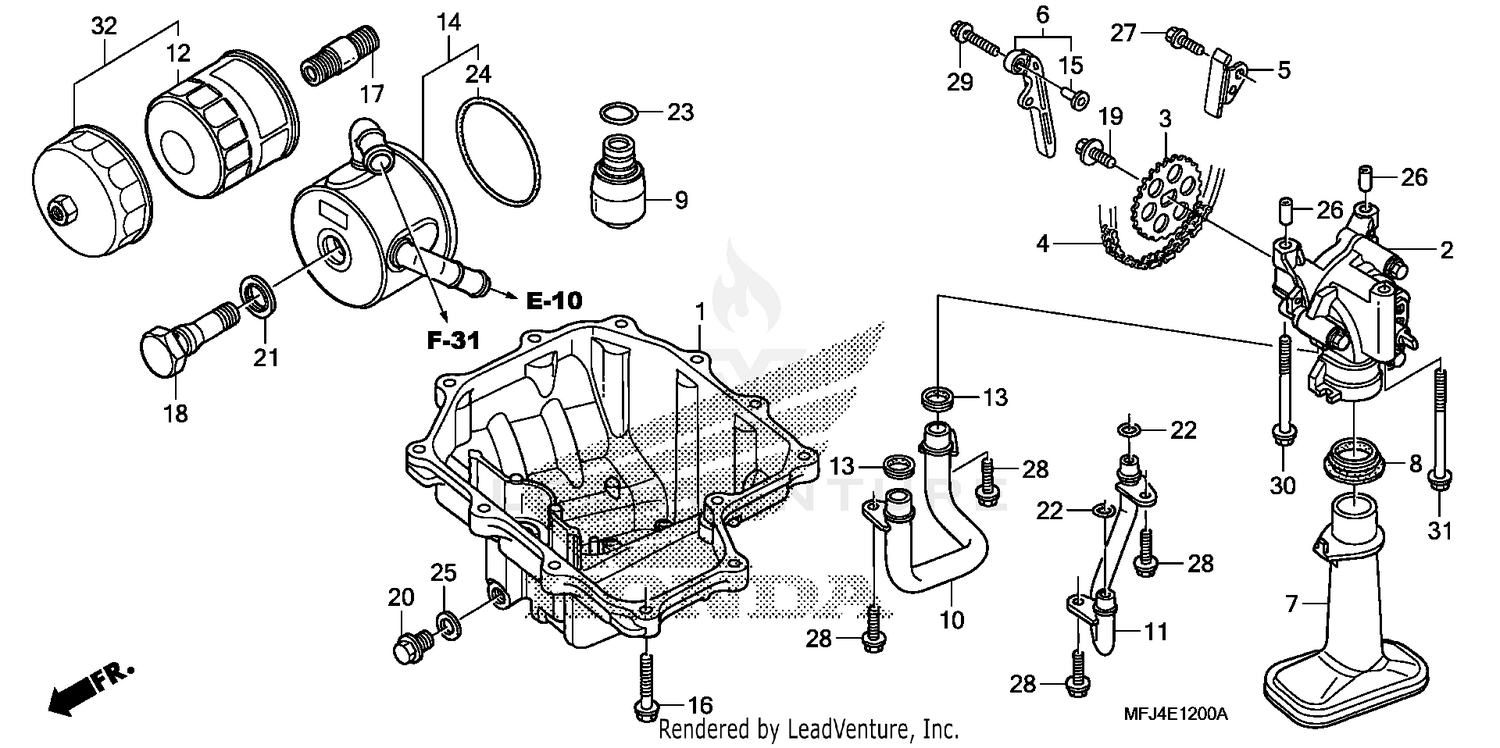

Oil Pan@oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PAN, OIL
11210-MFJ-D00
Superseded by 11210-MFJ-D01
|
$259.89 | ||
|
Available to order. Add to View Price |
|||
|
#1
PAN, OIL
11210-MFJ-D01
|
$259.89 | ||
|
Unavailable |
|||
|
#2
PUMP ASSY., OIL
15100-MFJ-D00
|
$271.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPROCKET, OIL PUMP DRIVEN (25T)
15134-MAL-600
|
$28.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
CHAIN, OIL PUMP DRIVE (DID25H-72L)
15141-MFJ-D01
|
$26.13 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE A, OIL PUMP CHAIN
15145-MFJ-D00
|
$11.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUIDE B, OIL PUMP CHAIN
15146-MFJ-D00
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
|
#7
STRAINER, OIL
15150-MFJ-D01
|
$38.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, OIL STRAINER
15154-MAT-000
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#9
VALVE ASSY., RELIEF
15220-MBW-000
|
$44.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE A, OIL
15310-MFJ-D01
|
$89.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIPE B, OIL
15320-MFJ-D00
|
$41.76 | ||
|
Available to order. Add to View Price |
|||
|
#12
FILTER, OIL (WAKO FILTER)
15410-MFJ-D01
Superseded by 15410-MFJ-D02
|
$18.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
FILTER, OIL (WAKO FILTER)
15410-MFJ-D02
|
$18.63 | ||
|
Unavailable |
|||
|
#13
RING, SEAL
15433-MFJ-D01
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#14
COOLER, OIL
15700-MFJ-D01
|
$342.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR, FR. FENDER
61107-MCR-D00
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X28) (NSHF)
90006-GHB-680
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOSS, OIL FILTER (Honda Code 1243435)
90019-MB0-000
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, OIL COOLER
90019-MFJ-D00
|
$73.25 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT-WASHER (6X12) (Honda Code 2551760)
90021-MM5-000
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, DRAIN PLUG (12X15)
90131-883-000
Superseded by 90131-896-650
|
$2.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, DRAIN PLUG (12X15)
90131-896-650
|
$2.76 | ||
|
Unavailable |
|||
|
#21
WASHER, SEALING (34.5MM)
90402-MFJ-D01
|
$9.07 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING (9.6X2.6) (ARAI)
91309-ML7-003
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING (14.8X2.2)
91313-MB0-003
Superseded by 91313-MG7-004
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING (14.8X2.2) (Honda Code 3353620)
91313-MG7-004
|
$4.62 | ||
|
Unavailable |
|||
|
#24
O-RING, OIL COOLER
91354-MCT-003
|
$9.96 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, DRAIN PLUG (12MM)
94109-12000
|
$1.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X16) (Honda Code 2410892)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)
95701-06020-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X50) (Honda Code 2410975)
95701-06050-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X60)
95701-06060-00
|
$0.36 | ||
|
Available to order. Add to View Price |
|||
|
#32
FILTER SET, OIL
15010-MCE-H51
Superseded by 15010-MKR-305
|
$23.88 | ||
|
Available to order. Add to View Price |
|||
|
#32
FILTER SET, OIL
15010-MKR-305
|
$23.88 | ||
|
Unavailable |
|||
