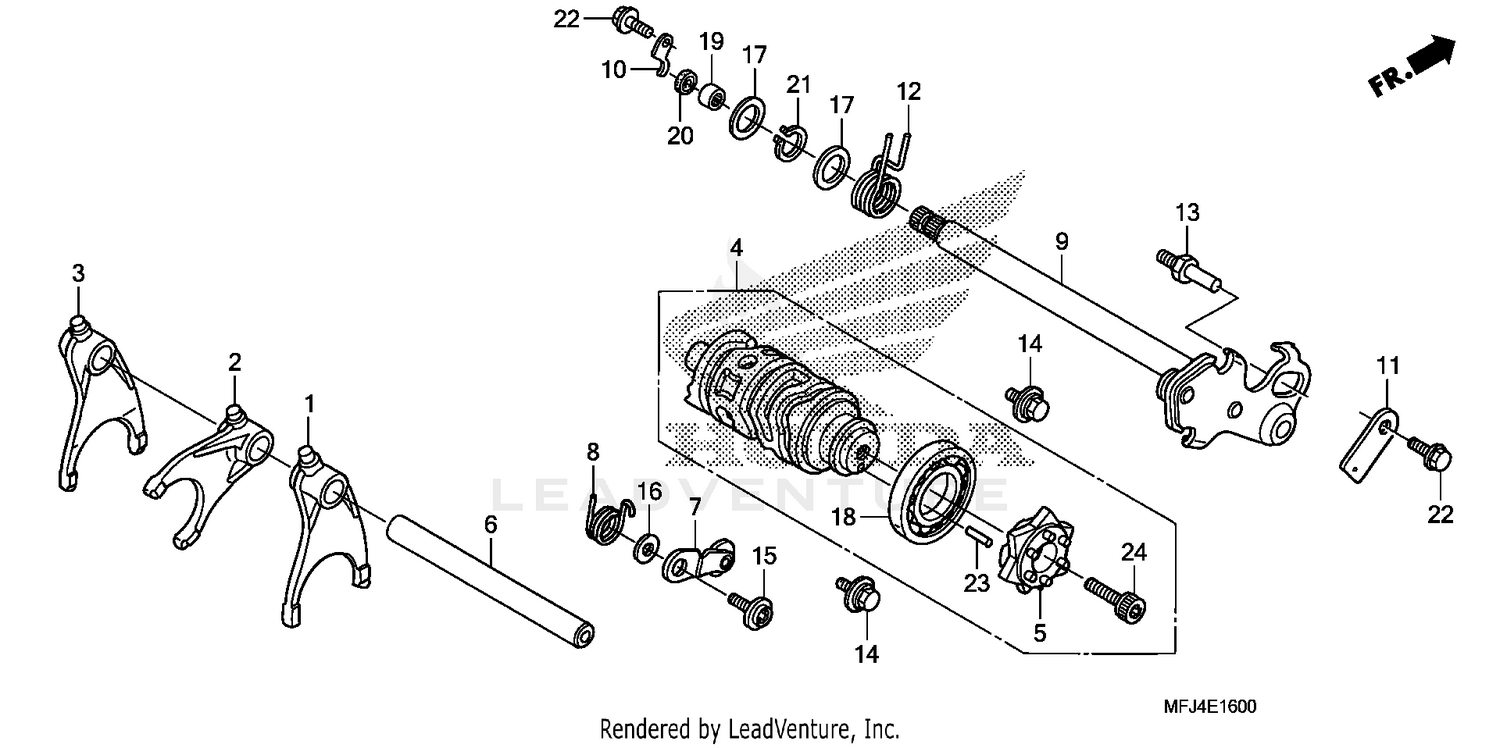

Gearshift Drum Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK, R. GEARSHIFT
24211-MFJ-D00
|
$79.47 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK, CENTER GEARSHIFT
24212-MFJ-D00
|
$79.47 | ||
|
Available to order. Add to View Price |
|||
|
#3
FORK, L. GEARSHIFT
24213-MFJ-D00
|
$79.47 | ||
|
Available to order. Add to View Price |
|||
|
#4
DRUM, GEARSHIFT
24310-MFJ-D00
|
$176.81 | ||
|
Available to order. Add to View Price |
|||
|
#5
CENTER, SHIFT DRUM
24315-MW0-791
|
$44.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT, GEARSHIFT FORK
24321-MEE-000
|
$20.47 | ||
|
Available to order. Add to View Price |
|||
|
#7
STOPPER, GEARSHIFT DRUM
24430-MAS-E00
|
$15.96 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, SHIFT DRUM STOPPER
24435-MFJ-D00
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPINDLE, GEARSHIFT
24610-MFJ-D00
|
$105.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, SPINDLE
24612-MAL-600
|
$11.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, SPINDLE SETTING
24613-MFJ-D00
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, SHIFT RETURN
24651-MAE-000
|
$9.36 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, SHIFT RETURN SPRING
24652-035-000
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT-WASHER (6X12) (Honda Code 2551760)
90021-MM5-000
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIVOT, SHIFT DRUM STOPPER ARM
90022-MY5-600
|
$13.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, DRUM STOPPER
90417-360-000
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER (14MM)
90451-155-000
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, SPECIAL BALL (6500)
91008-MFJ-D01
|
$18.93 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING, NEEDLE (14X22X16)
91106-MCF-003
|
$12.93 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL (14X22X5) (NOK)
91203-KA4-771
|
$4.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CIRCLIP (OUTER) (14MM)
94510-14000
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
ROLLER (4X8)
96220-40080
|
$0.58 | ||
|
Unavailable |
|||
|
#24
BOLT, SOCKET (8X20)
96600-08020-10
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
