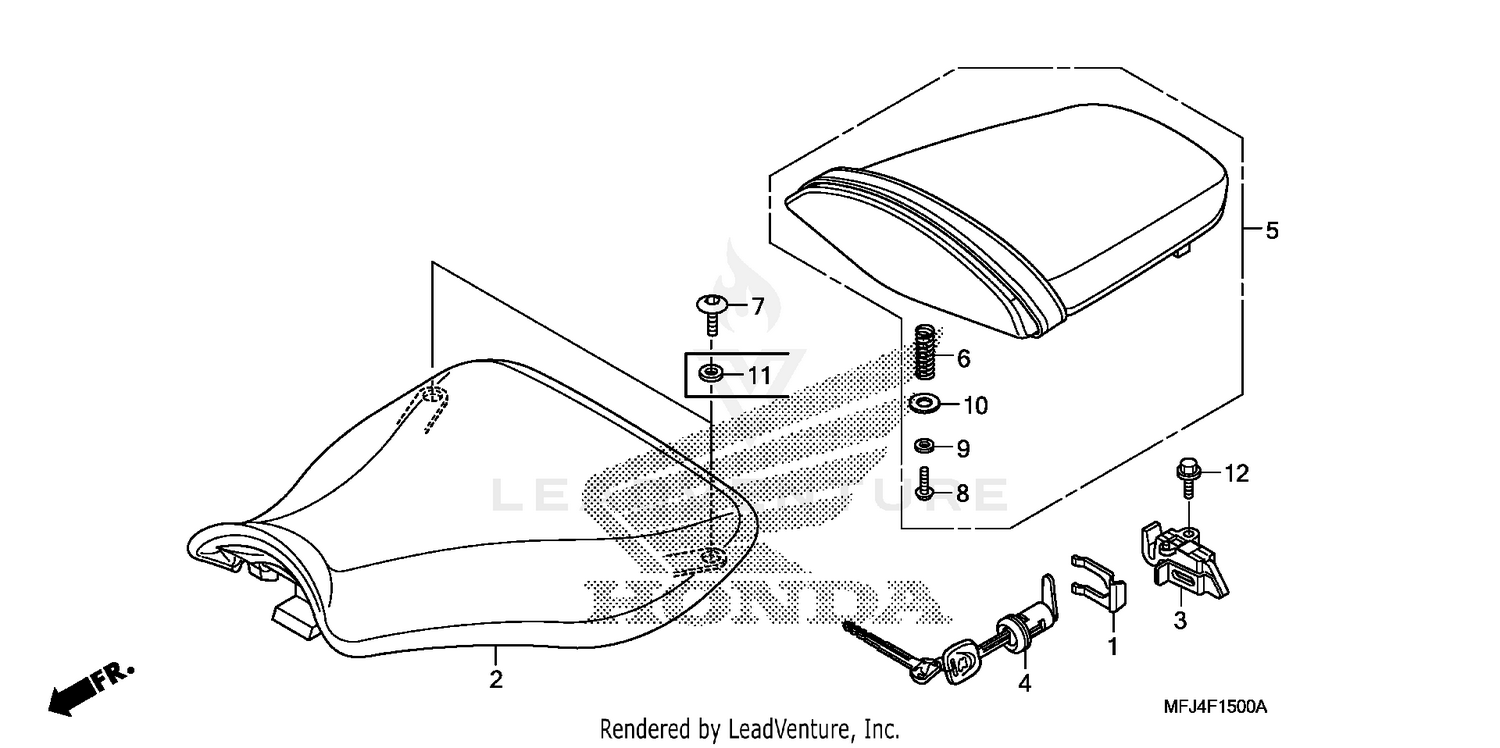

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPRING, LOCK KEY SETTING
75581-GN8-920
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAT ASSY., SINGLE
77100-MFJ-D01
|
$212.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOOK, SEAT CATCH
77220-MEE-D01
|
$40.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
LOCK ASSY., SEAT
77225-MFJ-D01
|
$46.75 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAT ASSY., PILLION
77300-MFJ-D01
Superseded by 77300-MFJ-D02
|
$246.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAT ASSY., PILLION
77300-MFJ-D02
|
$246.16 | ||
|
Unavailable |
|||
|
#6
SPRING, SEAT LOCK
77302-MEE-000
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN (6X14)
90118-MR1-000
|
$3.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SCREW, TAPPING (4X12)
93903-24320
|
$0.95 | ||
|
Unavailable |
|||
|
#9
WASHER, PLAIN (4MM) (Honda Code 0331462)
94101-04800
|
$1.03 | ||
|
Unavailable |
|||
|
#10
WASHER, PLAIN (8MM)
94102-08800
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X12)
96001-06012-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
