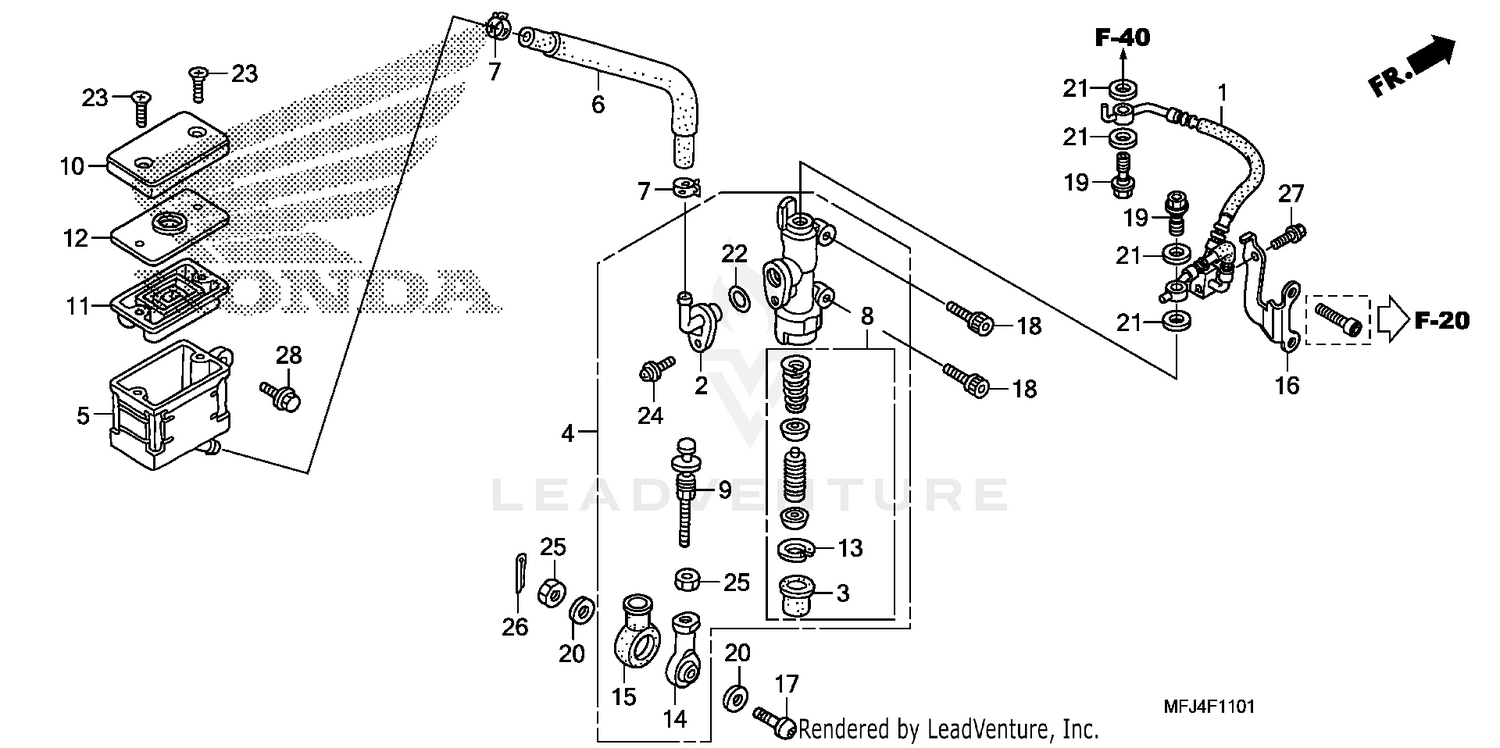

Rear Brake Master Cylinder (cbr600ra) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE A, RR. BRAKE
43310-MFJ-A51
|
$78.87 | ||
|
Available to order. Add to View Price |
|||
|
#2
CONNECTOR
43503-MEE-006
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOOT
43504-MB2-006
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
MASTER CYLINDER SUB-ASSY., RR.
43510-MFJ-D01
|
$178.78 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUP, OIL
43511-KV3-831
|
$28.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE, RR. MASTER CYLINDER
43512-MFJ-D01
|
$19.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, MASTER CYLINDER OIL HOSE
43514-KS6-701
|
$15.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON SET, MASTER CYLINDER (NISSIN)
43520-MB2-315
|
$56.36 | ||
|
Available to order. Add to View Price |
|||
|
#9
ROD, PUSH
43530-MCZ-006
|
$28.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, MASTER CYLINDER (COO)
45513-HR0-305
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, MASTER CYLINDER (COO)
45513-KK1-771
Superseded by 45513-HR0-305
|
$5.22 | ||
|
Unavailable |
|||
|
#11
DIAPHRAGM
45520-MG7-006
|
$12.84 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, DIAPHRAGM
45521-HA2-006
|
$13.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
CIRCLIP
46182-MEL-D21
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#14
TIE ROD
46505-MFJ-D01
|
$72.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, DUST
46506-MFJ-D00
|
$8.87 | ||
|
Available to order. Add to View Price |
|||
|
#16
STAY, RR. HOSE
57461-MFJ-A50
|
$12.93 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, SOCKET (8X30)
90125-MCJ-750
|
$7.62 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, SOCKET (6X20)
90135-MEL-000
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPECIAL (8MM)
90443-GC8-000
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
O-RING (14.8X2.4)
91212-422-006
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW,FLAT,4X40
93600-040401G
|
$0.55 | ||
|
Unavailable |
|||
|
#24
SCREW-WASHER (4X12)
93893-04012-07
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.40 | ||
|
Unavailable |
|||
|
#25
NUT,HEX 8MM
94002-080000S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, COTTER (2.0X15)
94201-20150
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X16)
96001-06016-07
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X16)
96300-06016-00
|
$1.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
