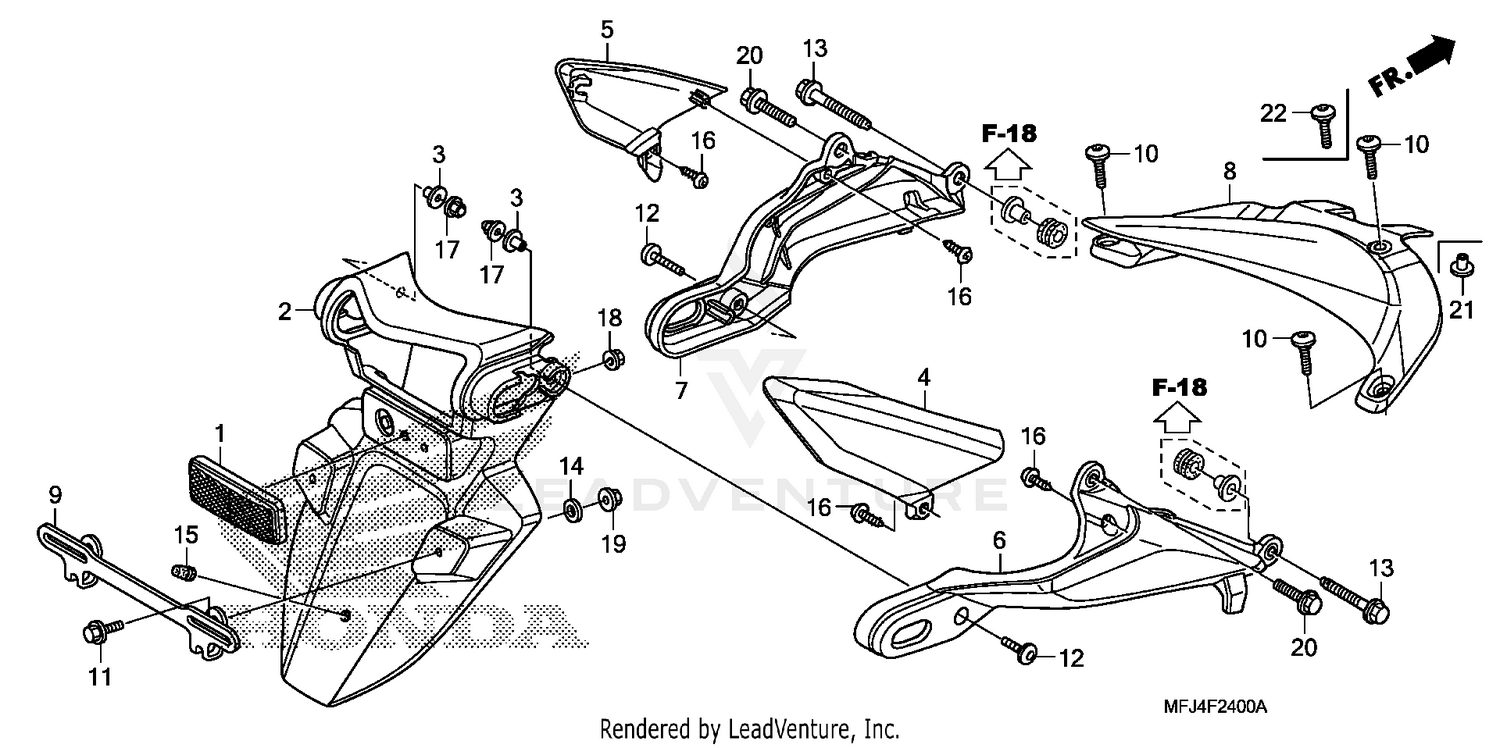

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REFLECTOR, REFLEX (STANLEY)
33741-MS6-921
|
$18.36 | ||
|
Available to order. Add to View Price |
|||
|
#2
FENDER A, RR.
80100-MFJ-A00
|
$32.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, RR. FENDER
80101-MFJ-D00
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUARD, R. RR. HEAT *NH35M* (CLOUD SILVER METALLIC)
80103-MFJ-D00ZA
|
$32.18 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUARD, L. RR. HEAT *NH35M* (CLOUD SILVER METALLIC)
80104-MFJ-D00ZA
|
$33.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY, R. FENDER A
80115-MFJ-D00
|
$83.58 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, L. FENDER A
80116-MFJ-D00
|
$83.58 | ||
|
Available to order. Add to View Price |
|||
|
#8
FENDER C, RR.
80120-MFJ-A50
|
$15.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, NUMBER PLATE
84700-MFJ-A00
|
$14.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN (5X19)
90106-KCR-000
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6MM)
90111-187-000
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN (5X15)
90115-MEL-000
|
$2.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X29) (GUIDE)
90166-MEE-D00
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER (6MM)
90485-MB2-000
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLUG, CONE
90899-MFJ-A00
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, TAPPING (4X10) (PO)
93913-14180
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, CAP (5MM)
94021-05000-0S
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, FLANGE (5MM)
94050-05070
|
$1.35 | ||
|
Unavailable |
|||
|
#19
NUT, FLANGE (6MM)
94050-06070
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X18)
96300-06018-00
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
