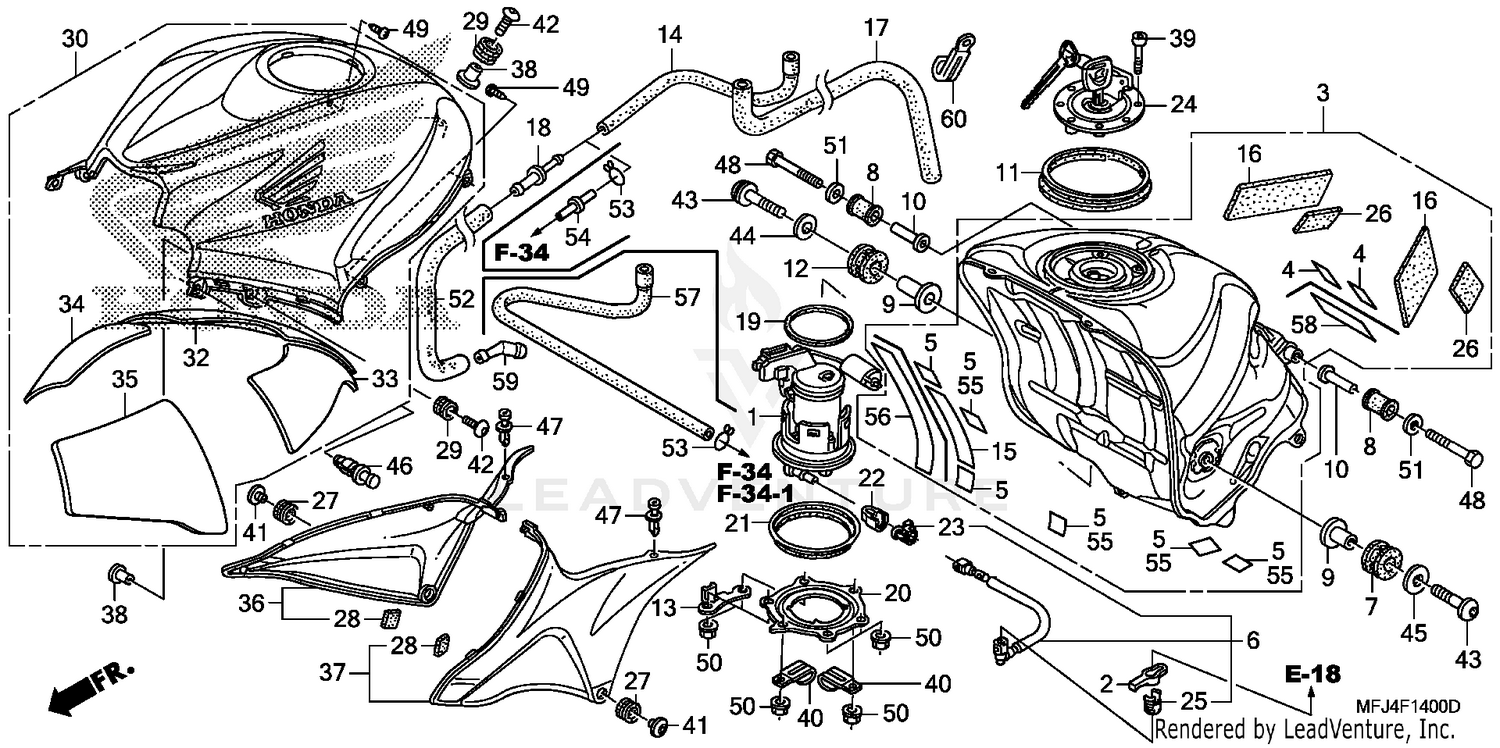

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY., FUEL (MSDS)
16700-MFJ-D01
Superseded by 16700-MFJ-D03
|
$701.85 | ||
|
Available to order. Add to View Price |
|||
|
#1
PUMP ASSY., FUEL (MSDS)
16700-MFJ-D02
Superseded by 16700-MFJ-D03
|
$701.85 | ||
|
Unavailable |
|||
|
#1
PUMP ASSY., FUEL (MSDS)
16700-MFJ-D03
|
$701.85 | ||
|
Unavailable |
|||
|
#2
DAMPER, CONNECTOR
16719-MFJ-D00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
TANK SET, FUEL
17500-MFJ-D10
|
$944.22 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE B, FUEL FEED
17526-MFJ-D01
|
$69.38 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER, L. FR. TANK MOUNTING
17533-MEL-000
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, RR. TANK MOUNTING (FRONT SIDE)
17534-MFJ-D00
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, FR. TANK SETTING
17535-MEL-D20
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, RR. TANK SETTING
17538-MEE-D00
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL, FUEL TANK
17543-MEE-000
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER, R. FR. TANK MOUNTING
17545-MEL-000
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#13
GUIDE, BREATHER TUBE
17553-MFJ-D00
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#14
TUBE, BREATHER
17555-MFJ-D00
|
$13.67 | ||
|
Available to order. Add to View Price |
|||
|
#16
CUSHION, FUEL TANK
17558-MEE-940
|
$19.71 | ||
|
Available to order. Add to View Price |
|||
|
#17
TUBE, DRAIN
17559-MFJ-A40
|
$17.22 | ||
|
Available to order. Add to View Price |
|||
|
#18
JOINT, BREATHER TUBE
17561-MEE-000
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET, FUEL PUMP
17574-MFJ-D00
|
$31.00 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLATE, FUEL PUMP SETTING
17575-MFJ-D00
|
$11.15 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL (OUTER)
17576-MFJ-D00
|
$7.40 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER, FUEL CONNECTOR
17580-MFJ-D00
|
$5.89 | ||
|
Available to order. Add to View Price |
|||
|
#23
RETAINER (BLUE GREEN) (TOKAI) (Honda Code 5928312)
17711-S0X-931
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#24
CAP, FUEL FILLER
17620-MCJ-751
Superseded by 17620-MCJ-753
|
$222.96 | ||
|
Unavailable |
|||
|
#25
RETAINER (BLUE GREEN) (TOKAI) (Honda Code 5928312)
17711-S0X-931
|
$4.15 | ||
|
Unavailable |
|||
|
#26
SPONGE, RUBBER
50322-MEC-000
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#27
RUBBER, SIDE COVER
64535-MFJ-D00
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#28
RUBBER, SPACER
77182-KTB-300
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#29
RUBBER, RR. FENDER CUSHION (FR.)
80101-165-000
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#30
SHELTER SET, TOP (TYPE1) (WL)
83100-MFJ-A40ZE
|
$725.52 | ||
|
Unavailable |
|||
|
#30
SHELTER SET, TOP (TYPE3) (WL)
83100-MFJ-A40ZG
|
$687.05 | ||
|
Unavailable |
|||
|
#32
MAT, R. RR. TOP SHELTER
83161-MFJ-A00
|
$11.75 | ||
|
Available to order. Add to View Price |
|||
|
#33
MAT, L. RR. TOP SHELTER
83162-MFJ-A00
|
$11.75 | ||
|
Available to order. Add to View Price |
|||
|
#34
MAT, R. FR. TOP SHELTER (BOTH SIDES)
83165-MFJ-A00
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#35
MAT, L. FR. TOP SHELTER
83166-MFJ-A00
|
$13.45 | ||
|
Available to order. Add to View Price |
|||
|
#36
COVER, R. SIDE
83600-MFJ-D00
|
$18.53 | ||
|
Available to order. Add to View Price |
|||
|
#37
COVER, L. SIDE
83700-MFJ-D00
|
$18.53 | ||
|
Available to order. Add to View Price |
|||
|
#38
COLLAR, TAILLIGHT MOUNTING
84706-163-670
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, SOCKET (4X21)
90074-MT4-000
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLIP (2X50)
90105-727-000
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#41
SCREW, SPECIAL (5X6)
90114-MFJ-D00
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#42
SCREW, PAN (6X20)
90118-MEJ-J00
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, SPROCKET FIXING
90128-KL4-000
|
$11.16 | ||
|
Available to order. Add to View Price |
|||
|
#44
WASHER A, HANDLE HOLDER SETTING
90524-030-000
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#45
WASHER (8.5MM)
90534-750-000
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#46
CLIP, SPLASH SHIELD
90657-SB0-003
|
$6.62 | ||
|
Available to order. Add to View Price |
|||
|
#47
CLIP, BODY COVER
90683-GR1-003
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#48
BOLT, HEX. (6X40)
92201-06040-0A
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#49
SCREW, TAPPING (4X10)
93903-24280
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
NUT, FLANGE (6MM)
94050-06080
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#51
WASHER, PLAIN (6MM)
94103-06000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#52
TUBE (8X590)
17557-MFJ-A40
|
$18.51 | ||
|
Available to order. Add to View Price |
|||
|
#55
TAPE, TANK GUARD
17528-MR4-900
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#56
FILM A, PROTECTOR
17554-MFJ-D10
|
$12.64 | ||
|
Available to order. Add to View Price |
|||
|
#58
FILM B, PROTECTOR
17557-MFJ-D10
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#60
CLIP (2X60)
91410-679-000
|
$12.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
