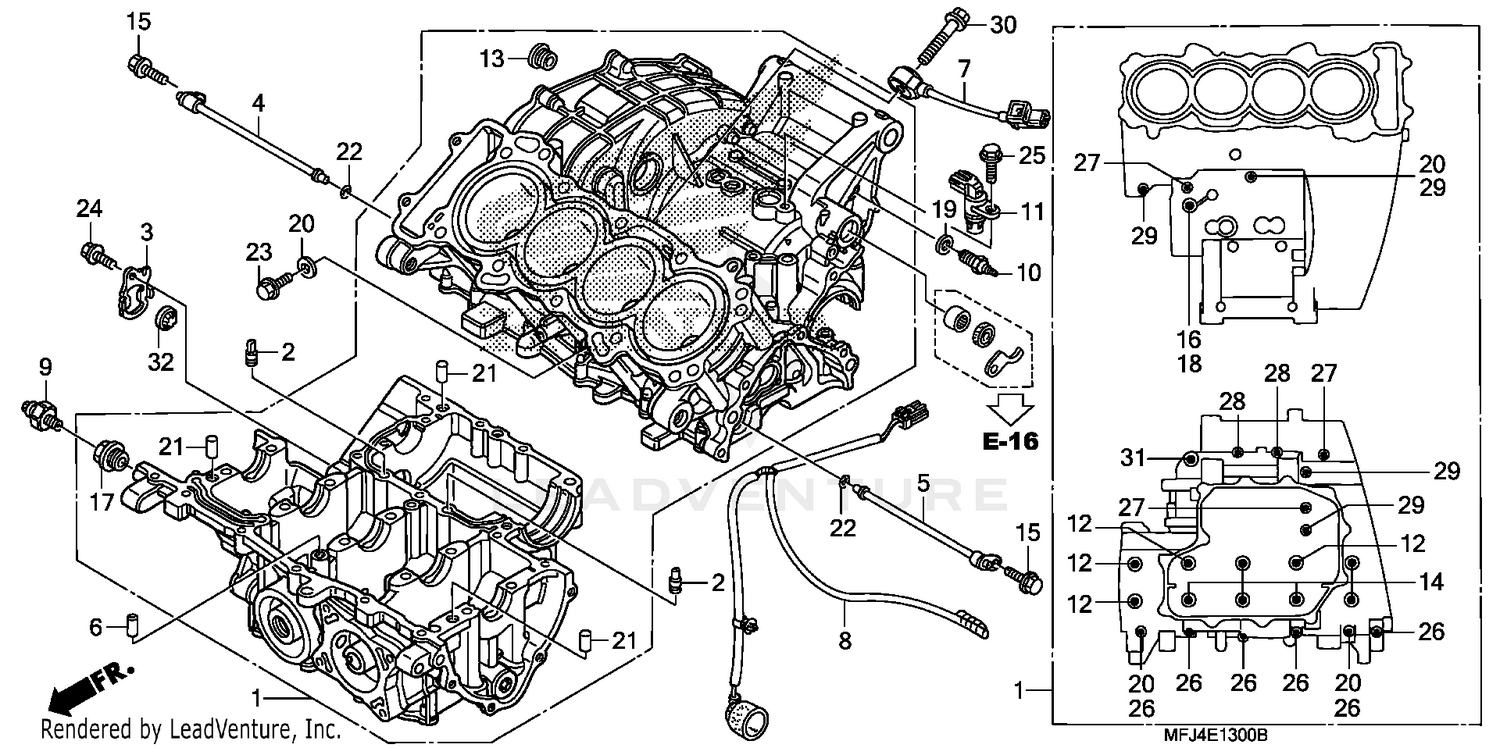

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11000-MFJ-D00
Superseded by 11000-MFJ-305
|
$2,299.05 | ||
|
Available to order. Add to View Price |
|||
|
#1
CRANKCASE SET
11000-MFJ-305
|
$2,299.05 | ||
|
Unavailable |
|||
|
#1
CRANKCASE SET
11000-MFJ-315
|
$2,299.05 | ||
|
Unavailable |
|||
|
#2
ORIFICE (1.4MM)
11104-MFJ-D00
|
$9.73 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, OIL LEVEL FINDER
11215-MFJ-D00
|
$7.24 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE, R. OIL JET
15330-MFJ-A40
|
$86.91 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE, L. OIL JET
15340-MFJ-A40
|
$86.91 | ||
|
Available to order. Add to View Price |
|||
|
#6
ORIFICE (1MM)
15351-MFJ-D00
|
$8.58 | ||
|
Available to order. Add to View Price |
|||
|
#7
SENSOR, KNOCK
30530-MFJ-D01
|
$72.67 | ||
|
Available to order. Add to View Price |
|||
|
#8
SUB-WIRE HARNESS, ENGINE
32104-MFJ-D00
|
$22.96 | ||
|
Available to order. Add to View Price |
|||
|
#9
SWITCH ASSY., OIL PRESSURE (DENSO)
35500-MJ4-024
|
$51.42 | ||
|
Available to order. Add to View Price |
|||
|
#10
SWITCH ASSY., NEUTRAL
35600-MFJ-D01
|
$25.64 | ||
|
Available to order. Add to View Price |
|||
|
#11
SENSOR ASSY., SPEED
37700-MFJ-D01
|
$96.87 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, UBS (8X98)
90004-MFJ-D01
|
$11.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SOCKET (10MM)
90005-MAZ-000
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, UBS (8X73)
90005-MFJ-D01
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, KNOCK (6MM)
90011-MFJ-D00
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (8X107)
90015-MFJ-D00
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, SEALING (20MM)
90048-MAL-600
|
$13.56 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SEALING (8MM)
90442-028-000
|
$2.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
WASHER, NEUTRAL
90443-MJ6-000
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, DOWEL (10X16) (Honda Code 3906971)
90701-MV9-670
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING (4.8X1.9) (NOK) O-RING (7.7X2.3) (ARAI)
91307-422-000
Superseded by 91313-MA6-005
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING (4.8X1.9) (NOK) O-RING (7.7X2.3) (ARAI)
91313-MA6-005
|
$2.98 | ||
|
Unavailable |
|||
|
#23
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)
95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X18) BOLT, HEX. (6X18)
95701-06018-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X35)
95701-06035-00
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X45)
95701-06045-00
Superseded by 95701-06045-07
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X45) BOLT, FLANGE (6X60)
95701-06045-07
|
$2.27 | ||
|
Unavailable |
|||
|
#28
BOLT, FLANGE (6X50) (Honda Code 2410975)
95701-06050-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X60)
95701-06060-00
|
$0.36 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (8X30)
95701-08030-00
|
$1.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
BOLT, FLANGE (10X75)
95701-10075-00
|
$2.78 | ||
|
Available to order. Add to View Price |
|||
|
#32
FINDER, OIL LEVEL
15661-MEB-671
|
$11.36 | ||
|
Available to order. Add to View Price |
|||
