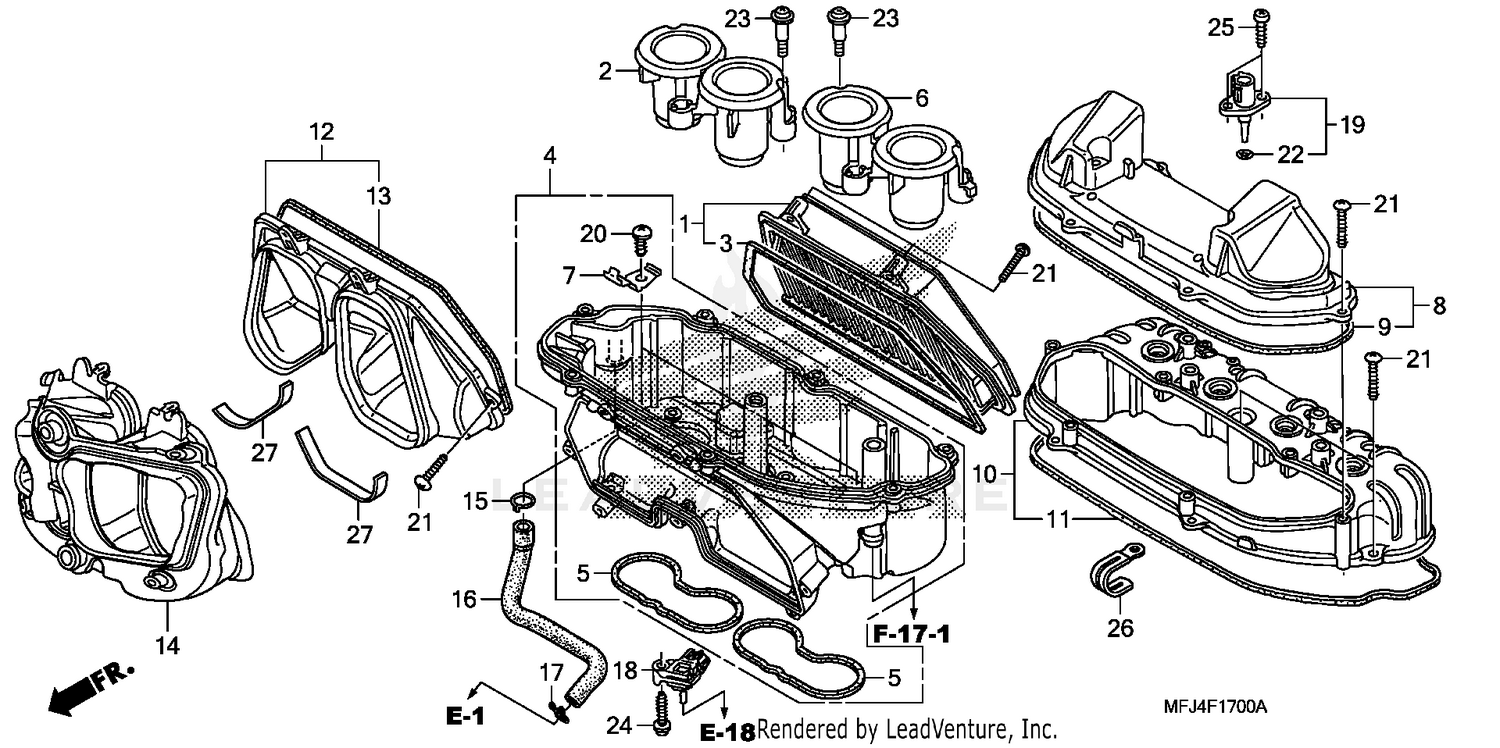

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ELEMENT, AIR CLEANER
17210-MFJ-D00
|
$51.43 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
FUNNEL, R. AIR
17215-MFJ-D01
|
$11.31 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL, ELEMENT
17218-MFJ-305
|
$11.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOUSING, AIR CLEANER (LOWER)
17220-MFJ-D00
|
$134.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAL, THROTTLE BODY
17222-MFJ-D00
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#6
FUNNEL, L. AIR
17225-MFJ-D01
|
$11.31 | ||
|
Available to order. Add to View Price |
|||
|
#7
RETAINER, AIR CLEANER ELEMENT
17227-MFJ-D00
|
$7.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, AIR CLEANER
17230-MFJ-A40
|
$76.46 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, AIR CLEANER COVER
17232-MFJ-D00
|
$9.13 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOUSING, AIR CLEANER MIDDLE
17240-MFJ-D00
|
$57.82 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL A, AIR CLEANER MIDDLE CASE
17242-MFJ-D00
|
$11.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
JOINT A, AIR IN.
17250-MFJ-D00
|
$19.38 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL, DUCT JOINT
17252-MFJ-D00
|
$9.13 | ||
|
Available to order. Add to View Price |
|||
|
#14
JOINT B, AIR IN.
17271-MFJ-D01
|
$53.18 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP B, TUBE CLIP, SUB-TANK HOSE
17366-MJ0-000
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#16
TUBE, ENGINE HEAD COVER BREATHER
17451-MFJ-D00
|
$10.33 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP, SUB-TANK HOSE
17724-102-700
|
$5.50 | ||
|
Available to order. Add to View Price |
|||
|
#18
SENSOR ASSY., MAP
37830-MEL-003
|
$156.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
SENSOR ASSY., AIR TEMPERATURE
37880-P05-A00
|
$39.42 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, TAPPING (5X12) (DELTA PT)
90101-HW4-680
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, TAPPING (4X18) (DELTA PT)
90105-MFJ-D00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING (7.5X1.5) (Honda Code 2684819)
91303-PK2-005
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN (5MM)
91508-MM5-000
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, TAPPING (5X20)
93901-25420
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
SCREW, TAPPING (5X16)
93911-25420
|
$1.02 | ||
|
Available to order. Add to View Price |
|||
|
#27
SEAL, AIR DUCT
17251-MFJ-A40
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
