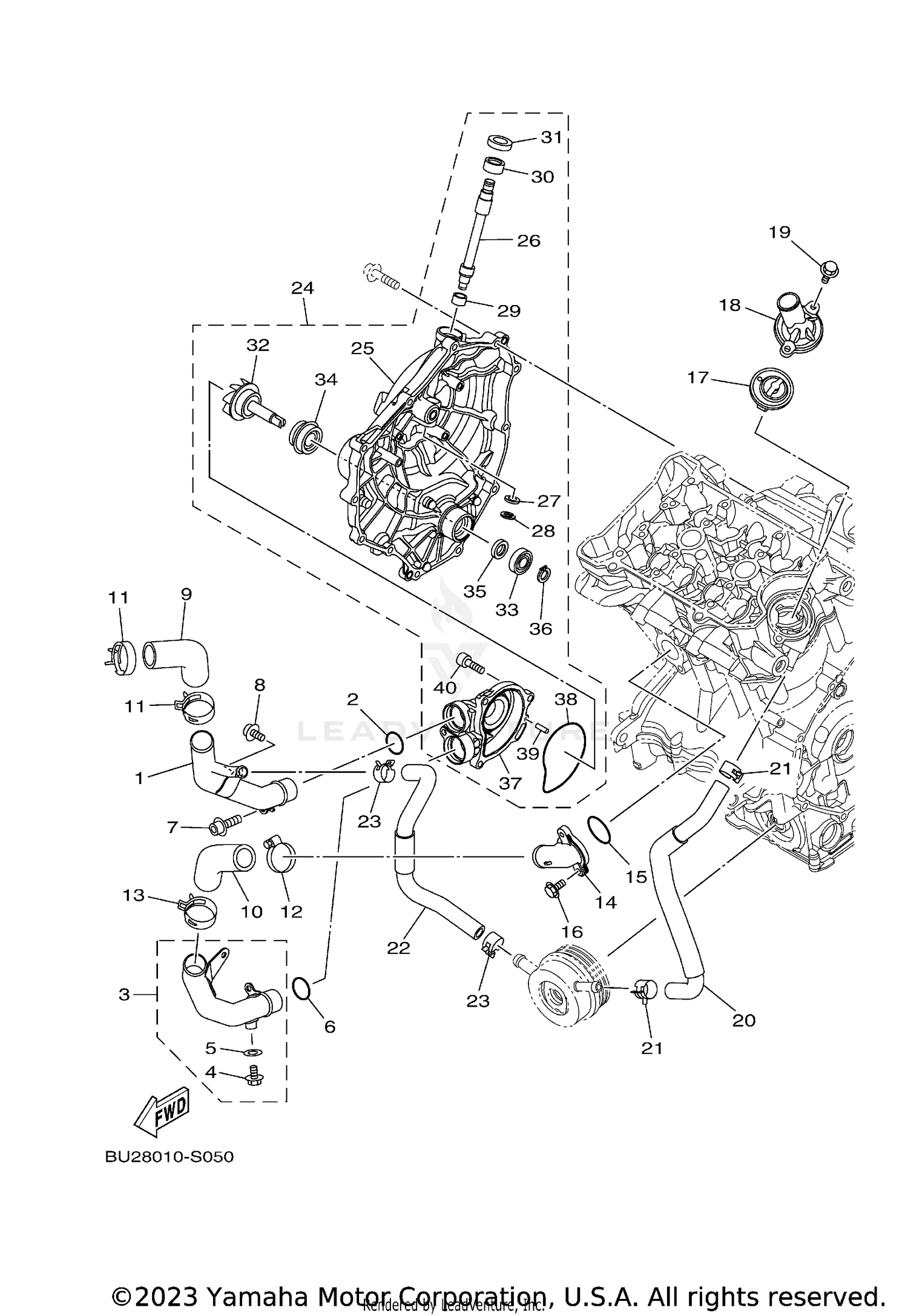

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE 1
1WS-12481-01-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING
93210-235A1-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
PIPE 2
1WS-12482-01-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
95022-06010-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
GASKET
90430-06014-00
|
$8.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
O-RING
93210-235A1-00
|
$8.49 | ||
|
Unavailable |
|||
|
#7
BOLT, HEXAGON SOCKET HEAD
91314-06014-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, HEXAGON SOCKET HEAD
90110-06152-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE 1
1WS-12576-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE 1
1WS-12576-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#11
CLIP
90467-290A0-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE CLAMP ASSY
90450-35001-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CLIP
90467-290A0-00
|
$18.49 | ||
|
Unavailable |
|||
|
#14
JOINT 1
1WS-12469-10-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
93210-33006-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95812-06020-00
Superseded by 95817-06020-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
THERMOSTAT ASSY
1WS-12410-01-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, THERMOSTAT
1WS-12413-10-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95817-06020-00
|
$3.50 | ||
|
Unavailable |
|||
|
#20
HOSE 5
1WS-12588-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP
90467-170A6-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE 6
1WS-12589-00-00
Superseded by 1WS-12589-01-00
|
$34.99 | ||
|
Unavailable |
|||
|
#23
CLIP
90467-170A6-00
|
$2.85 | ||
|
Unavailable |
|||
|
#24
WATER PUMP ASSY
1WS-12420-10-00
Superseded by 1WS-12420-11-00
|
$377.99 | ||
|
Unavailable |
|||
|
#25
COVER, CRANKCASE 2
1WS-15421-10-00
|
$146.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
AXLE, PUSH LEVER
2D1-16382-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
92907-08600-00
|
$3.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
CIRCLIP
99001-07600-00
Superseded by 99080-07600-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BEARING
93317-11096-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING
93315-21570-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
OIL SEAL
93102-15212-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
IMPELLER SHAFT ASSY
1WS-12450-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BEARING
93306-00106-00
Superseded by 93306-00105-00
|
$33.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
SEAL, MECHANICAL
5VK-12438-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
OIL SEAL
2CR-13338-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
CIRCLIP
99009-12400-00
|
$3.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
COVER, HOUSING
1WS-12422-10-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
O-RING
1WS-12439-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
PIN, DOWEL
93603-12007-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, HEXAGON SOCKET HEAD
90110-06274-00
Superseded by 91314-06020-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
