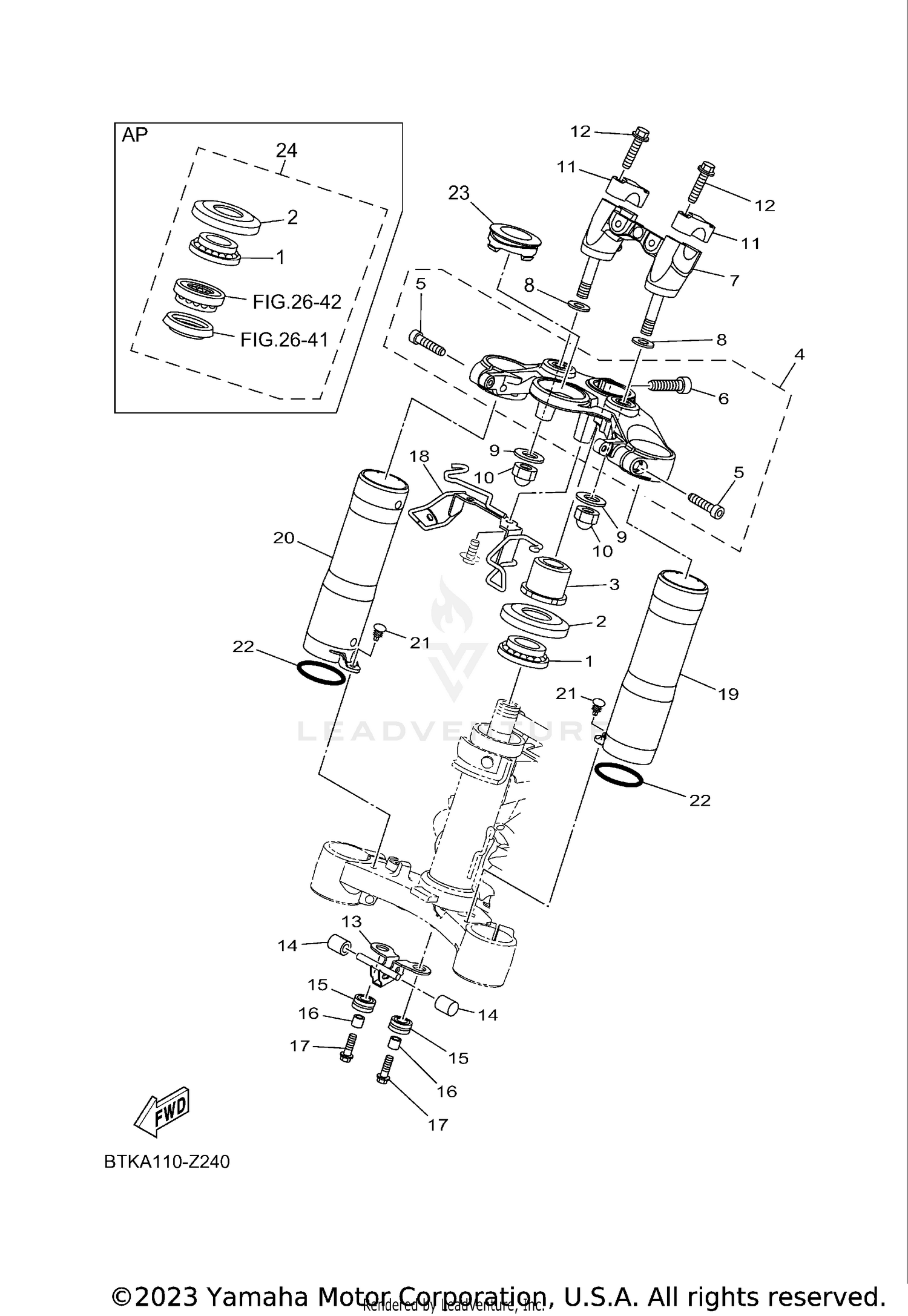

Steering Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BEARING
93399-99931-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, BALL RACE 2
1W1-23416-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
1WS-23357-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
HANDLE CROWN COMP.
BAT-23430-00-00
|
$205.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, HEXAGON SOCKET HEAD
91314-08030-00
|
$2.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BOLT, HEXAGON SOCK
90110-10057-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOLDER, HANDLE LOWER
B34-F3442-01-00
Superseded by B34-F3442-10-00
|
$246.99 | ||
|
Unavailable |
|||
|
#8
WASHER, PLAIN
92902-10200-00
Superseded by 92990-10200-00
|
$3.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-10043-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, CROWN
90176-10003-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOLDER, HANDLE UPPER
B34-F3441-01-00
Superseded by B34-F3441-10-00
|
$47.99 | ||
|
Unavailable |
|||
|
#12
BOLT, HEX.S OCKET HEAD
91317-08030-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET 1
BAT-2334G-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER
1WS-84527-00-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER
3C3-83513-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-06026-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE DEEP RECESS
95D37-06025-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET 2
BAT-2334H-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, UPPER 1
1WS-23121-01-00
|
$8.49 | ||
|
Unavailable |
|||
|
#20
COVER, UPPER 2
1WS-23131-01-00
|
$8.49 | ||
|
Unavailable |
|||
|
#21
RIVET
90269-05055-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
O-RING
93210-40M10-00
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#23
CAP, SWITCH
36P-82552-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
STEERING BEARING KIT
BVA-W000B-00-00
|
$142.99 | ||
|
Unavailable |
|||
