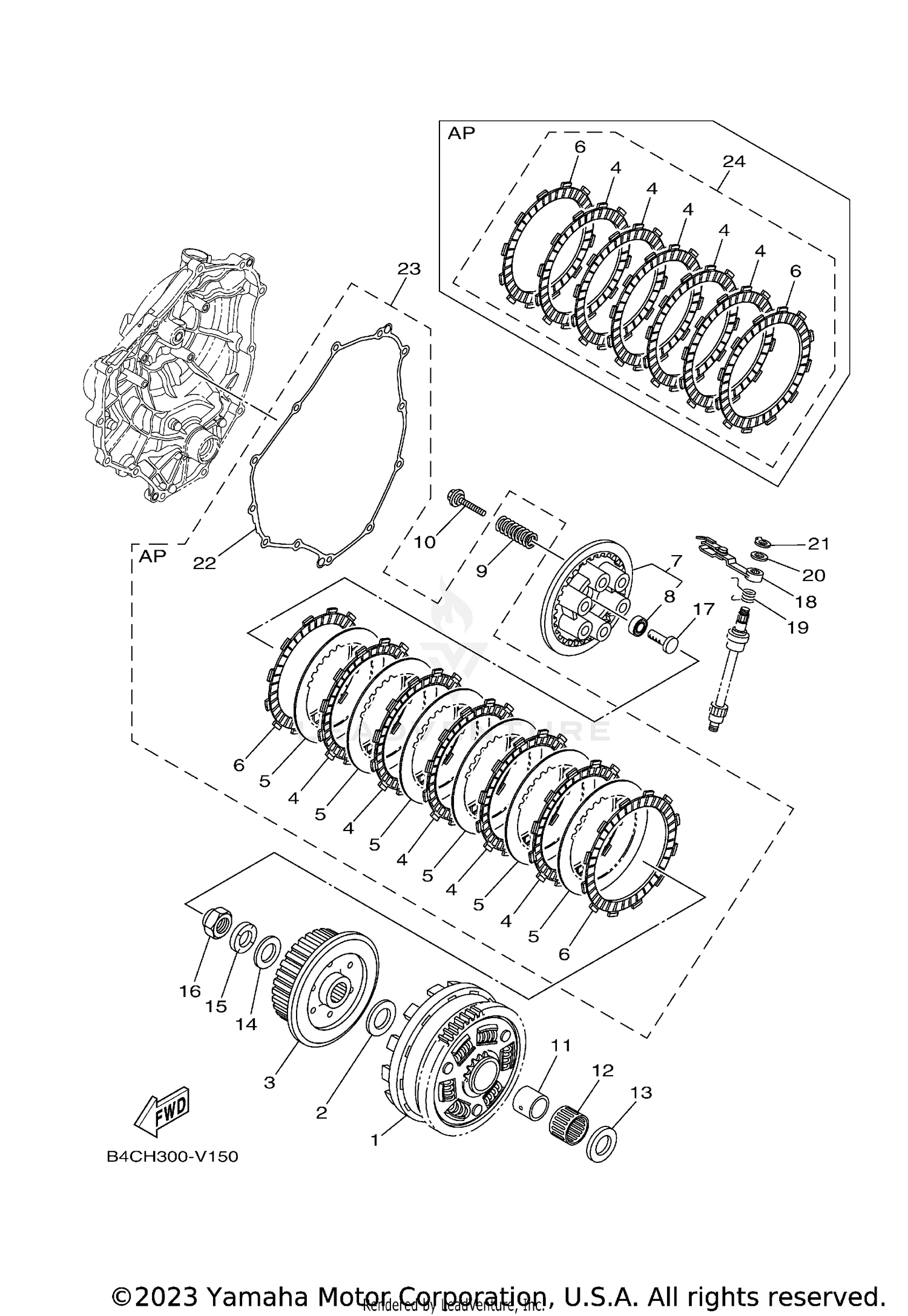

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PRIMARY DRIVEN GEAR COMP.
1WS-16150-00-00
|
$423.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, THRUST 1
363-16154-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOSS, CLUTCH
1WS-16371-01-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, FRICTION
5VY-16321-00-00
|
$34.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
PLATE, CLUTCH 2
5VY-16325-10-00
Superseded by 5VY-16325-20-00
|
$12.49 | ||
|
Unavailable |
|||
|
#6
PLATE, FRICTION
5TG-16321-00-00
|
$16.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
PRESSURE PLATE ASSY
1WS-16350-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
93306-00106-00
Superseded by 93306-00105-00
|
$33.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SPRING, COMPRESSION
90501-230E4-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, WITH WASHER
90119-06263-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER 1
1WS-16181-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING
93310-232R9-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, THRUST 1
363-16154-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#14
WASHER, PLATE
90201-20030-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER, CONICAL SPRING
90208-20001-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
90179-20007-00
Superseded by 90179-20022-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROD, PUSH 1
1WS-16356-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PUSH LEVER ASSY
1WS-16340-00-00
Superseded by 1WS-16340-01-00
|
$31.99 | ||
|
Unavailable |
|||
|
#19
SPRING, TORSION
90508-18132-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-10029-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CIRCLIP
99009-10400-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
GASKET, CRANKCASE COVER 2
1WS-15461-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLUTCH PLATE KIT
1WS-W001G-10-00
Superseded by BTK-W001G-00-00
|
$137.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
FRICTION PLATE KIT
B4C-W001M-00-00
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
