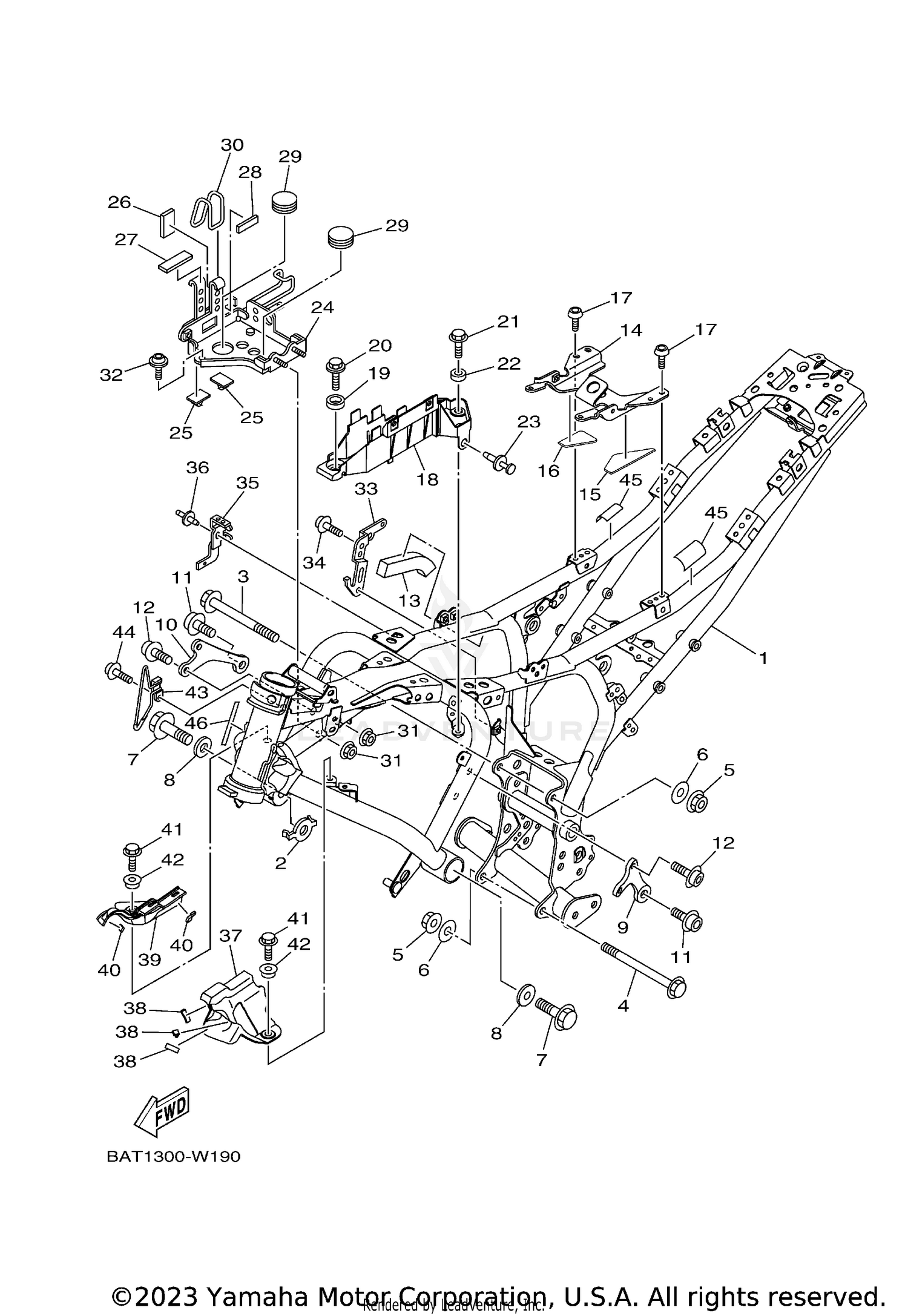

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME COMP.
BAT-21110-50-00
|
$1,729.99 | ||
|
Unavailable |
|||
|
#2
PLATE 1
1WS-2191B-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
90105-10219-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
90105-10349-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
90179-10024-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-10035-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
90105-12092-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-13020-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
STAY, ENGINE 1
BAT-21315-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
STAY, ENGINE 2
BAT-21316-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEXAGON SOCKET HEAD
90110-10044-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
90110-08111-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER, PLATE
90520-20003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET, SEAT FITT
BAT-21946-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAT 1
B4C-2112B-00-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHEET,2
BAT-2113C-00-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, BUTTON HEAD
92012-06010-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
COVER 3
1WS-2117N-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-1001B-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, WITH WASHER
90119-06209-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE DEEP RECESS
95D32-06012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-06372-00
Superseded by 90387-06106-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
RIVET
90269-06002-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BRACKET
1WS-21158-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP
90464-25160-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
DAMPER, PLATE
90520-01004-00
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#27
DAMPER, SEAT
3UF-24737-00-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#28
DAMPER
5DM-28371-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
GROMMET
90480-30167-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BAND, TOOL
4XV-21376-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, WITH WASHER
95702-06500-00
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BOLT, HEX. SOCKET BUTTON
90111-06122-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BRACKET 8
1WS-2161J-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, BUTTON HEAD
92017-06010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
BRACKET 2
1WS-2175U-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
RIVET
90269-07077-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
COVER 4
1WS-2117R-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
PLATE, DAMPER
1HX-27415-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
COVER 5
1WS-2117T-01-00
|
$5.49 | ||
|
Unavailable |
|||
|
#40
PLATE, DAMPER
1HX-27415-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#41
BOLT, FLANGE DEEP RECESS
95D07-06012-00
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#42
COLLAR
90387-062M9-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
GUIDE, CABLE
BU2-21288-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT, FLANGE
95027-06010-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#45
SEAL
5VN-21268-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
PROTECTOR, FUEL TANK
3HA-24141-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
