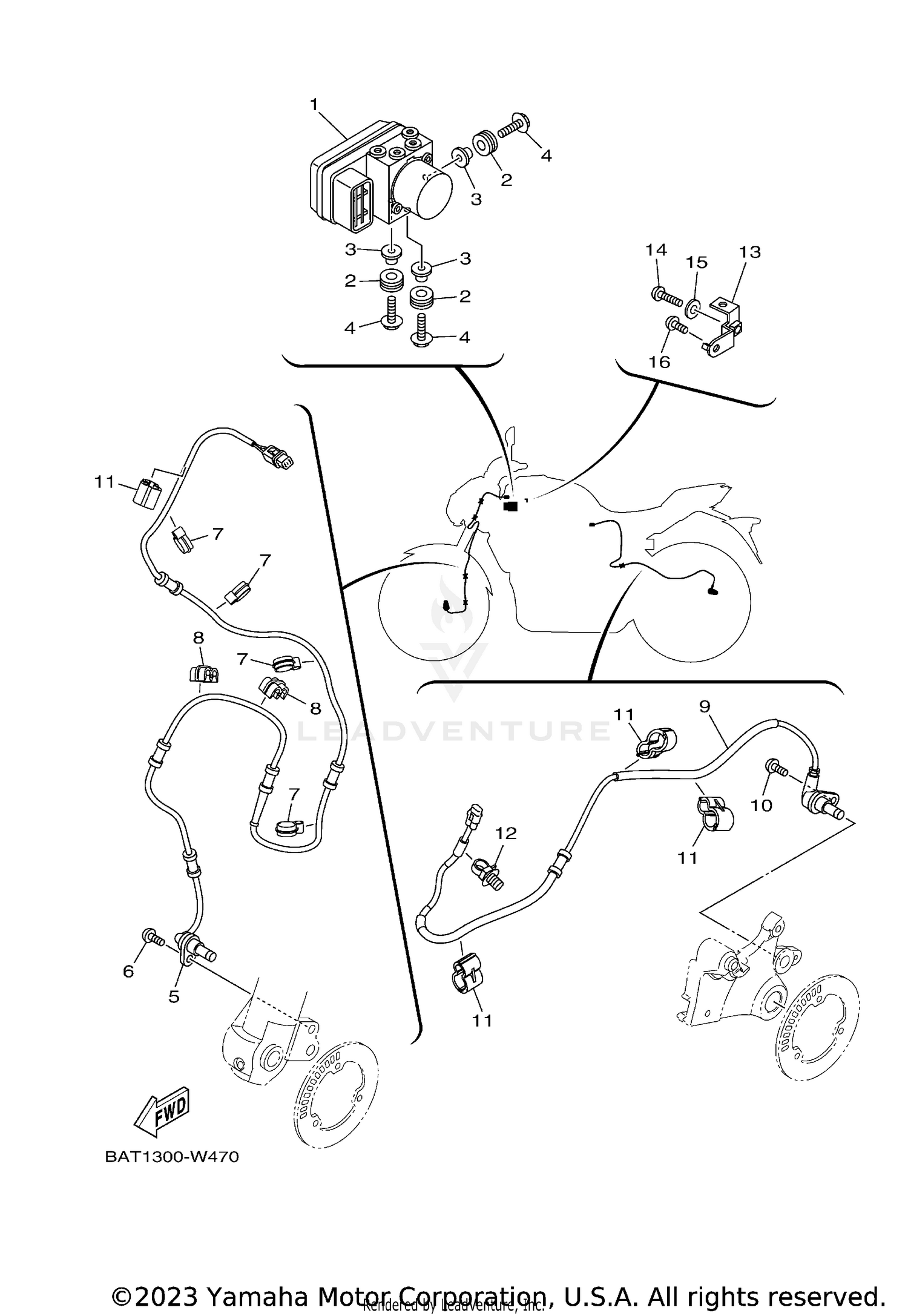

Electrical 3 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HYDRAULIC UNIT ASSY
BAT-85930-06-00
|
$572.99 | ||
|
Unavailable |
|||
|
#2
GROMMET
90480-14229-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR
90387-06M60-00
|
$8.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
95817-06020-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
WHEEL SENSOR ASSY,
BAT-85970-01-00
|
$215.99 | ||
|
Unavailable |
|||
|
#6
BOLT, BUTTON HEAD
92014-06014-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP
90464-12013-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP
90464-04001-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WHEEL SENSOR ASSY,
1XB-85980-01-00
|
$273.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, BUTTON HEAD
92014-06014-00
|
$4.05 | ||
|
Unavailable |
|||
|
#11
CLAMP
90464-10233-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP
90464-30009-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET 1
BAT-2175T-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, BUTTON HEAD
92012-06045-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-06055-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, BUTTON HEAD
92012-06016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
