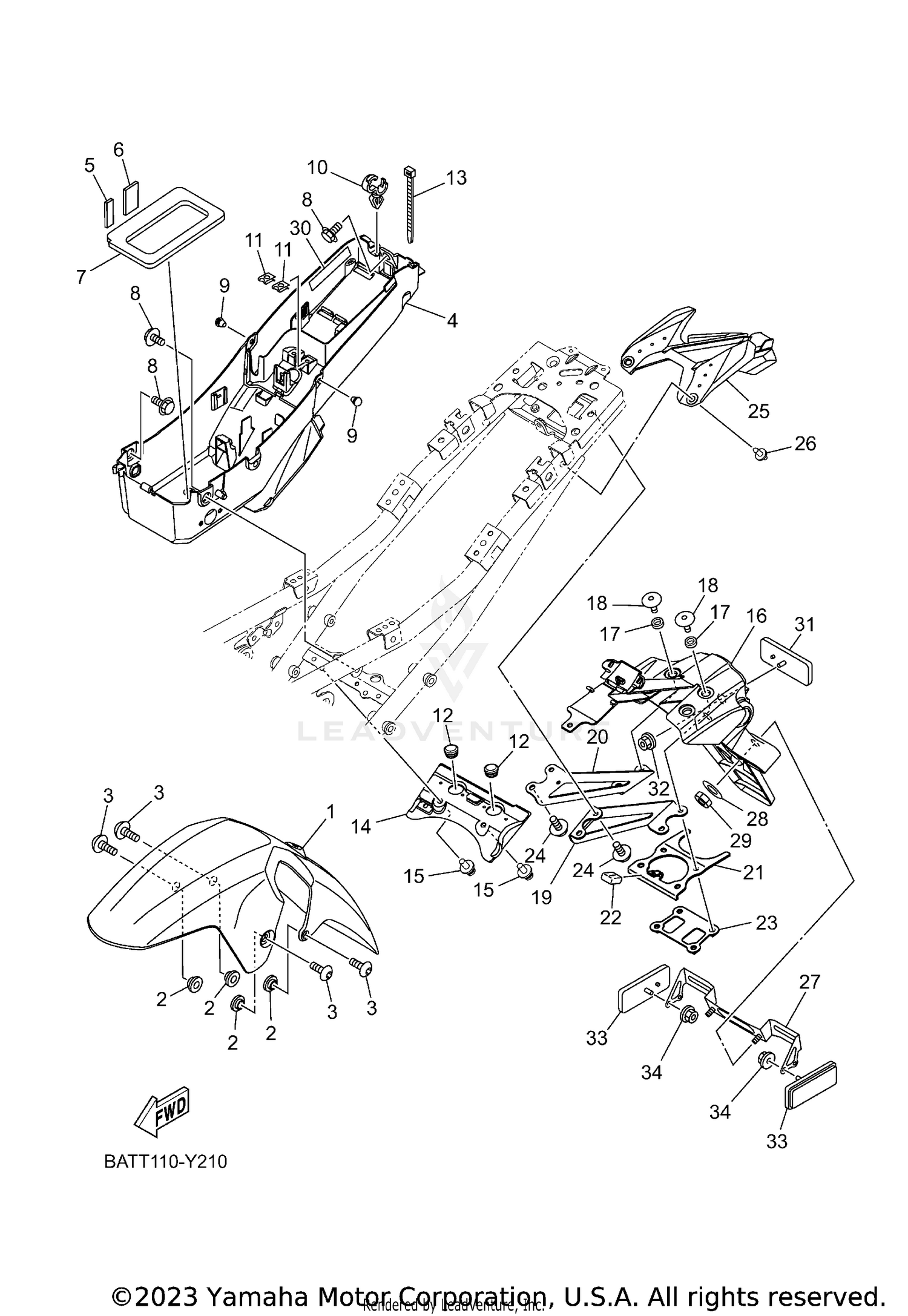

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
BAT-21511-00-P0
|
$170.99 | ||
|
Unavailable |
|||
|
#1
FENDER, FRONT
BAT-21511-00-P2
|
$176.99 | ||
|
Unavailable |
|||
|
#1
FENDER, FRONT
BAT-21511-00-P1
|
$176.99 | ||
|
Unavailable |
|||
|
#2
COLLAR
90387-06384-00
|
$11.99 | ||
|
Unavailable |
|||
|
#3
SCREW
90149-06302-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOX, BATTERY 1
BAT-8212B-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER 2
BAT-21639-00-00
|
$3.35 | ||
|
Unavailable |
|||
|
#6
DAMPER
BAT-21649-00-00
|
$4.65 | ||
|
Unavailable |
|||
|
#7
DAMPER 2
1WS-21639-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
90109-06202-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG
90338-06018-00
Superseded by 90338-07180-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP
90464-18002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, spring
90183-04039-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET
90480-14100-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
90465-13275-00
Superseded by 90464-15152-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUARD, FLAP
1WS-21642-01-00
|
$5.99 | ||
|
Unavailable |
|||
|
#15
RIVET
90269-06002-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
GUARD, MUD
BAT-21629-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-06372-00
Superseded by 90387-06106-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEX. SOCKET BUTTON
90111-06089-00
Superseded by 90111-06061-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
STAY 1
1WS-2164F-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
STAY 2
1WS-2164G-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
STAY, PLATE
BAT-21682-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
DAMPER
1WS-21746-00-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET 6
BAT-2161G-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT,WASHER BASED
90105-06205-00
Superseded by 90105-06206-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER, REAR FENDER 1
1WS-2163A-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
RIVET
90269-07008-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#27
BRACKET, LICENSE
2RC-84751-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
92902-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
NUT, U
95602-06100-00
Superseded by 95617-06100-00
|
$2.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
LABEL, CAUTION
3JJ-28446-A2-00
|
$4.95 | ||
|
Unavailable |
|||
|
#31
REAR REFLECTOR ASSY
3Y6-85130-02-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, U FLANGE
95602-05200-00
Superseded by 95607-05200-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
REAR REFLECTOR ASSY
3Y6-85130-02-00
|
$30.99 | ||
|
Unavailable |
|||
|
#34
NUT, WITH WASHER
95702-05500-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
