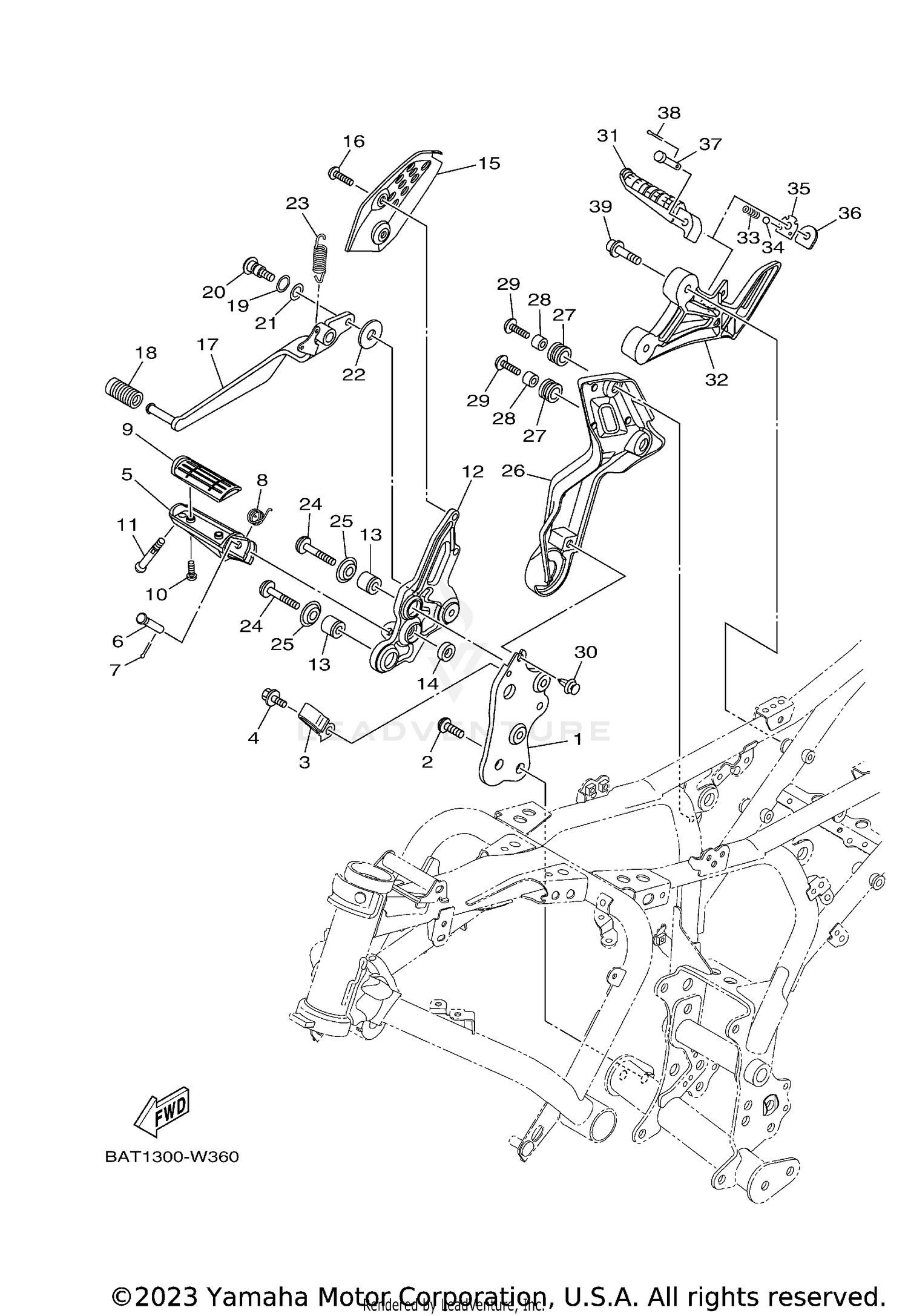

Stand & Footrest 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, ADAPTER 2
B34-274A4-00-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, HEX. SOCKET BUTTON
90111-10060-00
Superseded by 90111-10006-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP
90465-08045-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
95022-06010-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
FOOTREST
1WS-27461-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, CLEVIS
91701-08040-00
Superseded by 91702-08040-00
|
$4.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
PIN. COTTER
91402-25015-00
Superseded by 91490-25020-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SPRING, TORSION
90508-18056-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, FOOTREST
3YX-27413-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
90157-05025-00
Superseded by 98580-05014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
90109-086F8-00
Superseded by 90109-08225-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET 3
1WS-27443-10-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER, FOOTREST
36Y-27414-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
STOPPER, MAIN STAND
5VX-27114-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE 2
1WS-27446-10-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEX. SOCKET BUTTON
90111-08022-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
PEDAL, BRAKE
BAT-27211-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, SHIFT PEDAL
1WS-18113-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, WAVE
90206-12074-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT
4BP-27434-01-00
Superseded by 4BP-27434-11-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-12051-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-08053-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SPRING, TENSION
90506-23008-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, HEXAGON SOCKET HEAD
90110-08071-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER
90209-08295-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER 2
BAT-27463-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
GROMMET
90480-14003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
COLLAR
90387-06057-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
SCREW
90149-06302-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
RIVET
90269-08008-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#31
FOOTREST, REAR 2
B7N-27441-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BRACKET 5
1WS-2742L-02-00
|
$95.99 | ||
|
Unavailable |
|||
|
#33
SPRING, COMPRESSION
90501-12743-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
BALL
93501-04011-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
WASHER, SPECIAL
5VX-27437-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, SPECIAL
BAT-27437-00-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIN, CLEVIS
91702-08040-00
|
$4.85 | ||
|
Unavailable |
|||
|
#38
PIN. COTTER
91401-25015-00
Superseded by 91490-25020-00
|
$3.45 | ||
|
Unavailable |
|||
|
#39
BOLT, HEXAGON SOCKET HEAD
90110-08231-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
