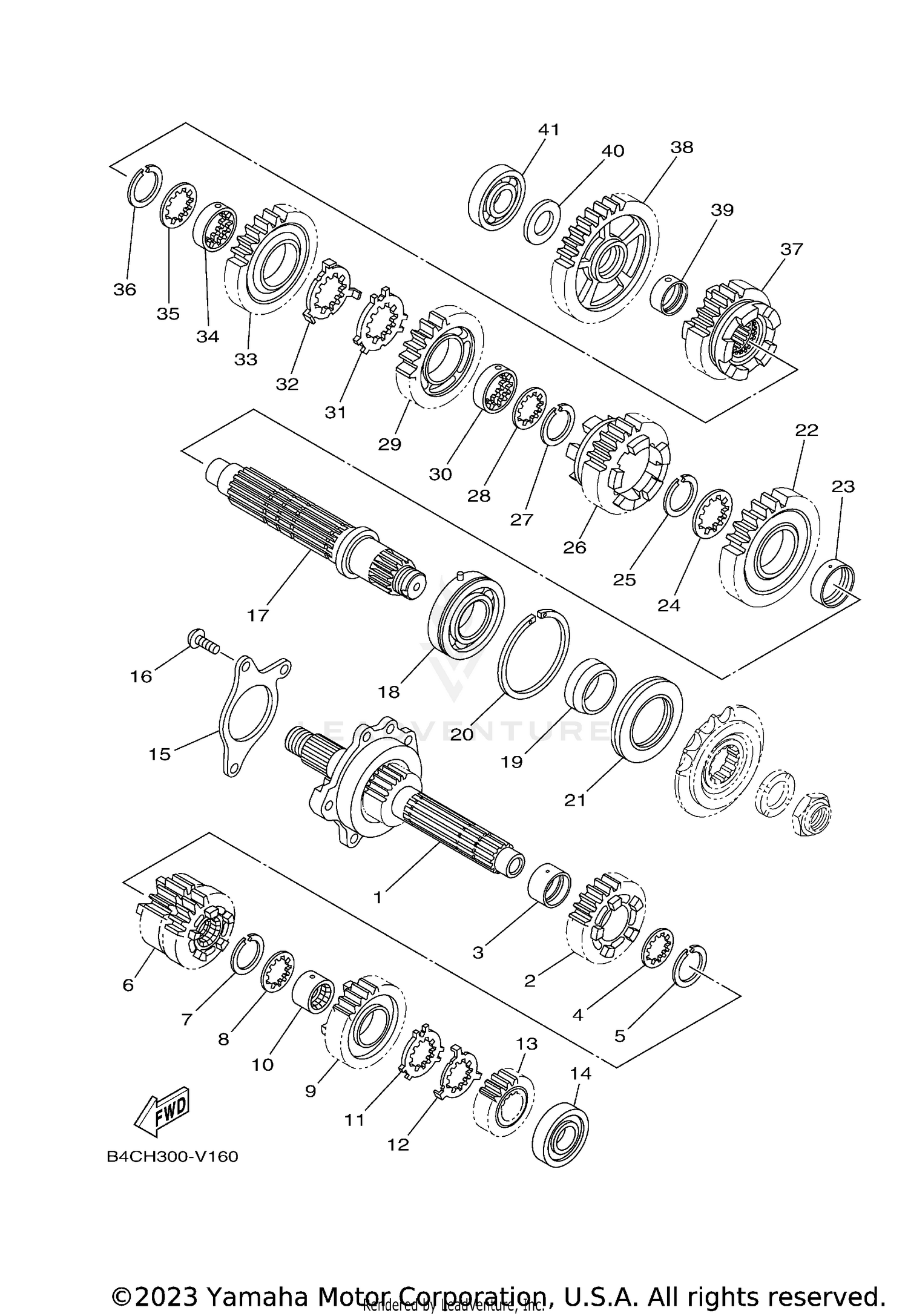

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAIN AXLE ASSY
1WS-17401-00-00
|
$247.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, 5TH PINION (22T)
1WS-17151-00-00
|
$138.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR
90387-250R3-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
90209-21332-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93440-25186-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 3RD PINION (20T/19T)
1WS-17131-00-00
|
$140.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
93440-25186-00
|
$8.49 | ||
|
Unavailable |
|||
|
#8
WASHER
90209-21332-00
|
$8.49 | ||
|
Unavailable |
|||
|
#9
GEAR, 6TH PINION
BAT-17161-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR
90387-21003-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
90209-22352-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
90209-21351-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, 2ND PINION (16T)
1WS-17121-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93306-20464-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE
1WS-17446-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
90149-06189-00
Superseded by 90149-06159-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
AXLE, DRIVE
1WS-17421-00-00
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING
93306-20663-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-30012-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP
93440-64199-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL
93102-40030-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
GEAR, 2ND WHEEL (34T)
1WS-17221-00-00
|
$182.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR
90387-31003-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER
90209-28008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CIRCLIP
93440-31187-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
GEAR, 6TH WHEEL
BAT-17261-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CIRCLIP
93440-31187-00
|
$9.49 | ||
|
Unavailable |
|||
|
#28
WASHER
90209-28008-00
|
$9.49 | ||
|
Unavailable |
|||
|
#29
GEAR, 4TH WHEEL (26T)
1WS-17241-00-00
|
$155.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR
90387-28004-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, CLAW
90214-29002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, CLAW
90214-28002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
GEAR, 3RD WHEEL (31T)
1WS-17231-00-00
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
COLLAR
90387-28004-00
|
$36.99 | ||
|
Unavailable |
|||
|
#35
WASHER
90209-28008-00
|
$9.49 | ||
|
Unavailable |
|||
|
#36
CIRCLIP
93440-31187-00
|
$9.49 | ||
|
Unavailable |
|||
|
#37
GEAR, 5TH WHEEL
BAT-17251-00-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
GEAR, 1ST WHEEL (37T)
1WS-17211-00-00
|
$264.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
COLLAR
90387-25008-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, PLATE
90201-20008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
BEARING
93306-20464-00
|
$45.99 | ||
|
Unavailable |
|||
