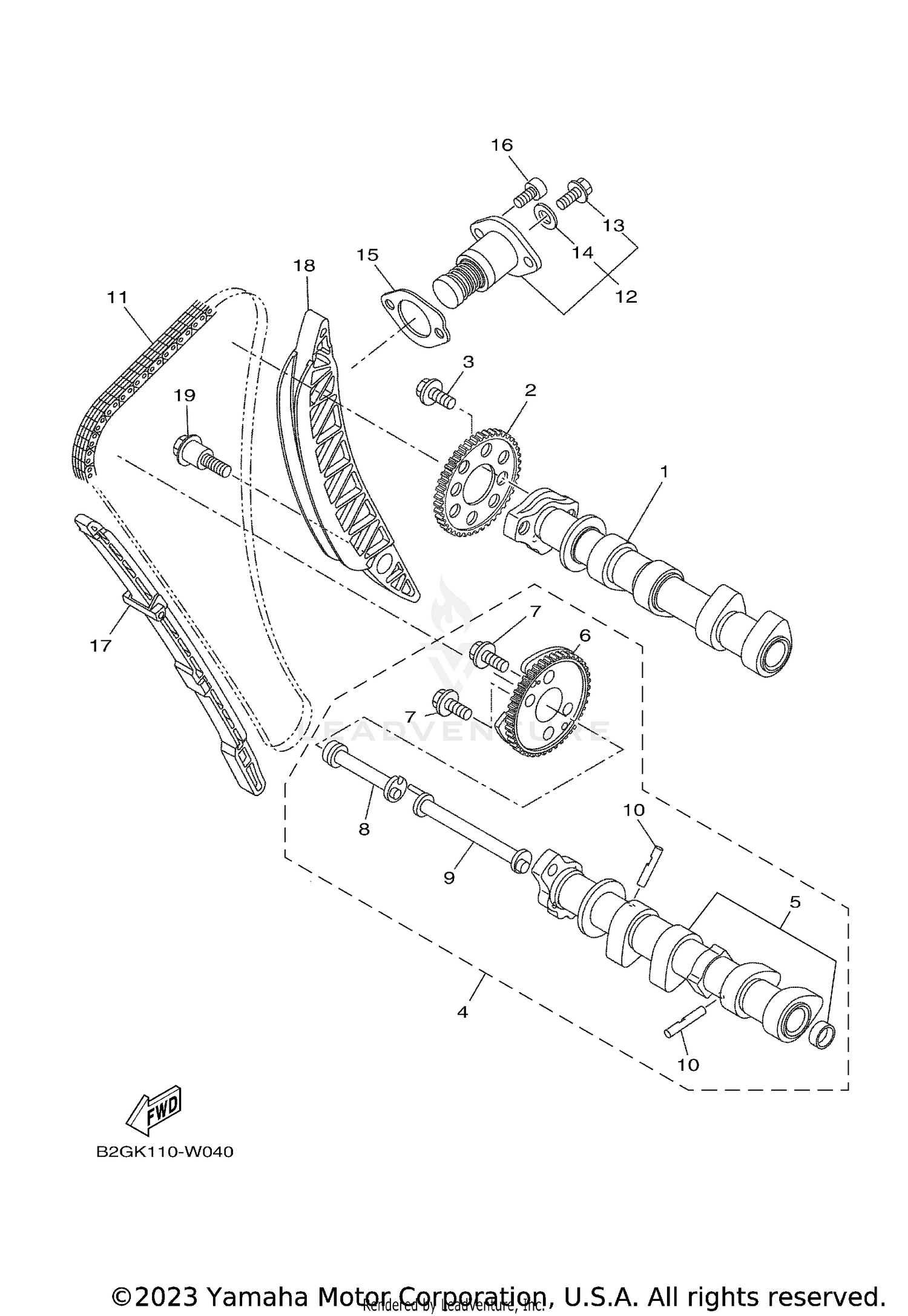

Camshaft & Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT ASSY 1
1WS-12170-00-00
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET, CAM CHAIN
BU3-12176-00-00
Superseded by BAT-12176-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#3
BOLT, FLANGE
90105-07006-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAMSHAFT ASSY 2
1WS-12180-10-00
|
$476.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAMSHIFT SET
1WS-W1218-10-00
|
$192.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
DECOMPRESSION ASSY
1WS-12280-00-00
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
90105-07006-00
|
$9.49 | ||
|
Unavailable |
|||
|
#8
SHAFT, TENSIONER
1WS-12247-00-00
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHAFT 2
1WS-12257-00-00
|
$157.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAM, DECOMPRESSION
1PD-12288-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CHAIN (T098XRH2015-134P)
94591-61134-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
TENSIONER ASSY, CAM CHAIN
1WS-12210-02-00
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
5EL-12228-00-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET
5SL-12214-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, TENSIONER CASE
1WS-12213-00-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEXAGON SOCKET HEAD
90110-06396-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER, CHAIN 1
1WS-12251-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER, CHAIN 2
1WS-12252-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
90109-06295-00
Superseded by 90109-06297-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
