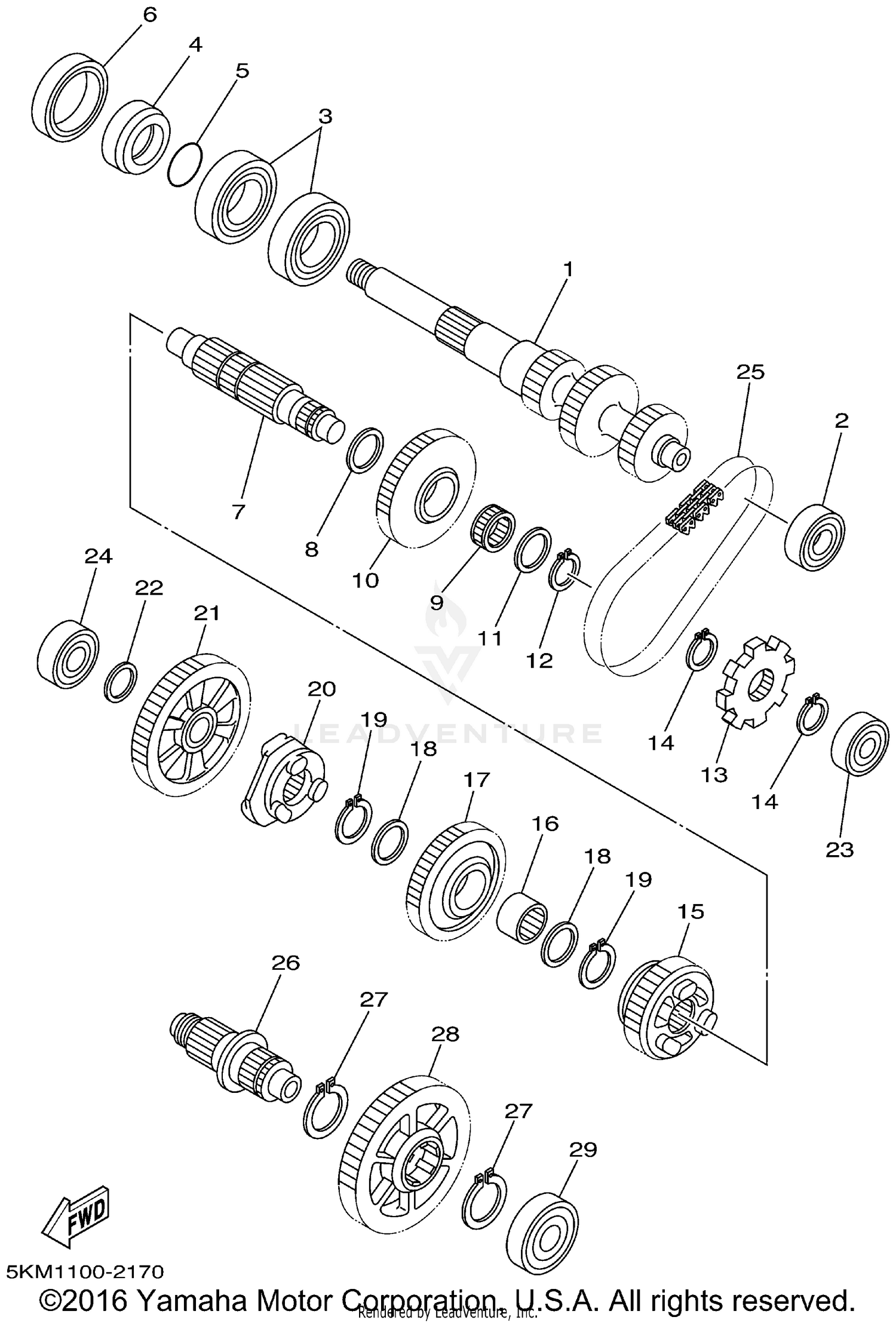

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT, SECONDARY
5KM-17681-00-00
|
$342.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93306-20321-00
Superseded by 93306-20327-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93306-00612-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
90387-26001-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
93210-26001-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
93102-42004-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DRIVE AXLE ASSY
5KM-17402-00-00
Superseded by 99999-03351-00
|
$142.99 | ||
|
Unavailable |
|||
|
#8
WASHER, PLATE
90201-21008-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93310-420F2-00
|
$25.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPROCKET, DRIVEN (25T)
5KM-17453-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE (T=1.0)
90201-20276-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
93410-20038-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
STOPPER
5KM-17473-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
93410-20038-00
|
$4.05 | ||
|
Unavailable |
|||
|
#15
GEAR, MIDDLE DRIVE (24T)
5KM-17582-00-00
Superseded by 5KM-17582-10-00
|
$120.99 | ||
|
Unavailable |
|||
|
#16
COLLAR
90387-250R3-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR, HIGH WHEEL (28T)
5KM-17223-00-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER (T=0.5)
90209-22082-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
CIRCLIP
93440-25084-00
|
$4.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
CLUTCH, DOG
5KM-17285-00-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GEAR, LOW WHEEL (37T)
5KM-17233-00-00
|
$87.99 | ||
|
Unavailable |
|||
|
#22
WASHER, PLATE
90201-17255-00
Superseded by 90201-177G4-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BEARING
93306-20221-00
Superseded by 93306-20211-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING
93306-20332-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CHAIN (23RH302-34ASM)
94591-54034-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SHAFT
5KM-17523-00-00
Superseded by 5KM-17523-10-00
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CIRCLIP
93440-25084-00
|
$4.45 | ||
|
Unavailable |
|||
|
#28
GEAR, MIDDLE DRIVEN (39T)
5KM-17583-00-00
Superseded by 5KM-17583-10-00
|
$132.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING
93306-30318-00
Superseded by 93306-30302-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
