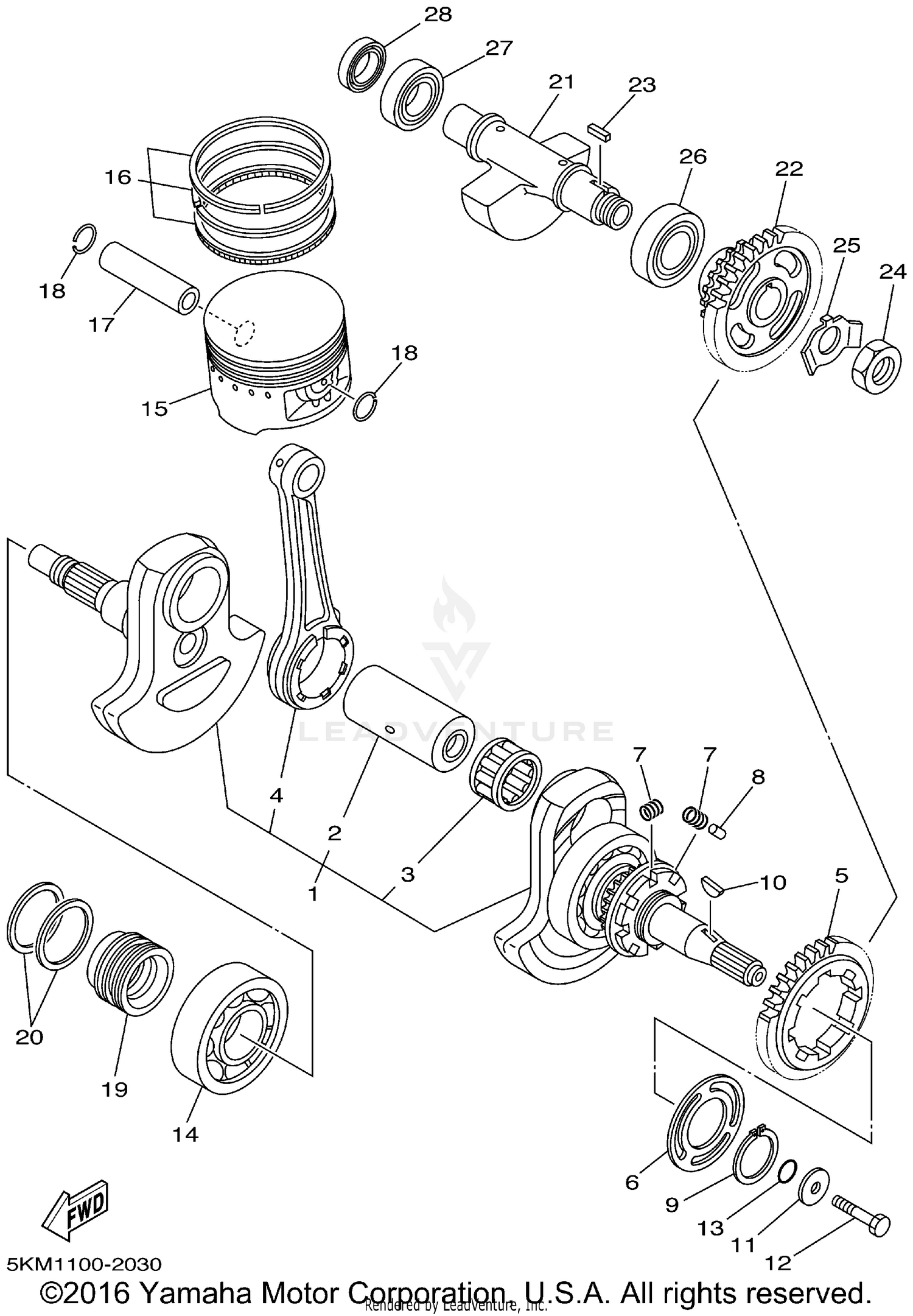

Crankshaft Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
5KM-11400-00-00
|
$1,145.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN, CRANK 1
5KM-11681-00-00
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93310-637D3-00
|
$90.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
ROD, CONNECTING
5LP-11651-00-00
|
$147.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, DRIVE (46T)
5KM-11536-00-00
Superseded by 5KM-11536-10-00
|
$137.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, BEARING COVER
5KM-11565-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, COMPRESSION
90501-22004-00
Superseded by 90501-220A1-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, DOWEL
93606-09002-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP (6U2)
99009-35400-00
Superseded by 93410-35M10-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
KEY, WOODRUFF
90280-16053-00
Superseded by 90280-05001-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-10321-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
90101-10568-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING
93210-16290-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93306-30702-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PISTON (1.00MM OS)
2C6-11638-00-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON (0.50MM OS)
2C6-11636-00-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON (STD)
2C6-11631-00-X0
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PISTON RING SET (1.00MM OS)
2C6-11607-10-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RING SET (0.50MM OS)
2C6-11605-10-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RING SET (STD)
2C6-11603-10-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, PISTON
3YF-11633-01-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP
93450-24028-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SPACER 1
5KM-16181-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAL, CRANK
5KM-11447-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WEIGHT 1
5KM-11454-00-00
|
$159.11 | ||
|
Unavailable |
|||
|
#22
BALANCER WEIGHT GEAR COMP.
5KM-11530-00-00
|
$161.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
KEY, STRAIGHT
90282-05005-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
90170-18003-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, LOCK
90215-18001-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BEARING
93306-30534-00
Superseded by 93306-30560-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING (4ED)
93306-30432-00
Superseded by 93306-30442-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
OIL SEAL
93102-20108-00
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
