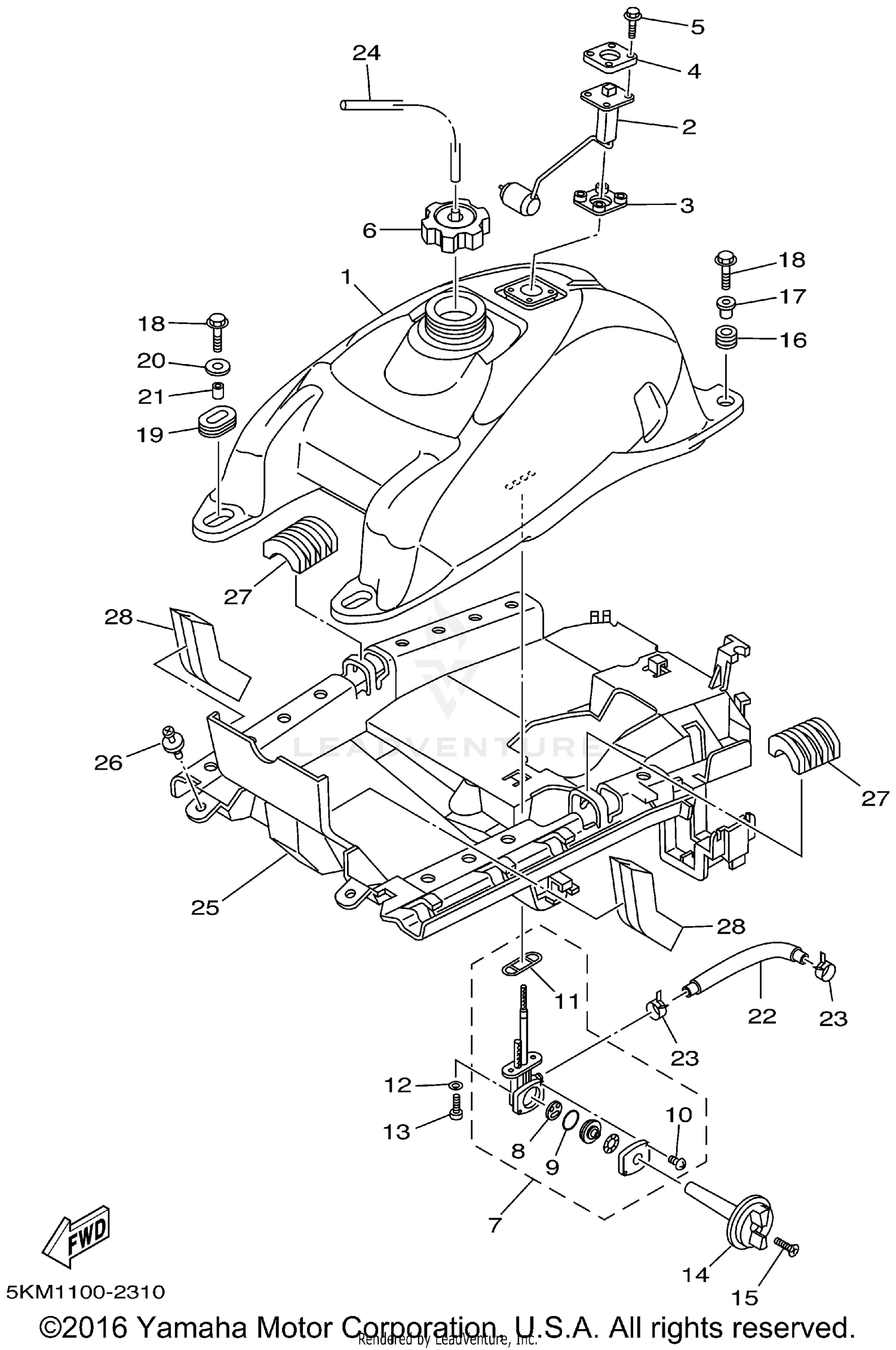

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
5KM-24110-00-00
|
$246.83 | ||
|
Available to order. Add to View Price |
|||
|
#2
SENDER UNIT ASSY, FUEL METER
5KM-85752-00-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, SENDER UNIT
4US-85753-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
RETAINER
2JG-85757-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, WITH WASHER
90119-05071-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP ASSY
5KM-24610-00-00
|
$66.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
FUEL COCK ASSY 1
5KM-24500-00-00
Superseded by 5KM-24500-10-00
|
$64.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
VALVE PACKING
3AJ-24523-00-00
Superseded by 3AC-24523-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, COCK
3AJ-24534-00-00
Superseded by 3AJ-24534-01-00
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98507-03014-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
4X8-24512-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
WASHER, PLATE
90202-05193-00
Superseded by 90202-05187-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SCREW
90149-06011-00
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
LEVER, COCK
5GH-24524-00-00
Superseded by 1NS-F4524-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, FLAT HEAD
98707-04018-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET
90480-18290-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-066J1-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
95807-06025-00
Superseded by 95817-06025-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#19
GROMMET
90480-01400-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-060L5-00
Superseded by 90201-06090-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-07598-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
PIPE, FUEL 1
5KM-24311-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP
90467-12053-00
Superseded by 90467-11044-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE (L460)
90445-084J1-00
Superseded by 90445-083J5-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
DAMPER, PLATE 1
5KM-2414H-00-00
|
$158.09 | ||
|
Unavailable |
|||
|
#26
RIVET
90269-06002-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
DAMPER, LOCATING 1
5KM-24181-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
DAMPER, LOCATING 2
5KM-24182-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
