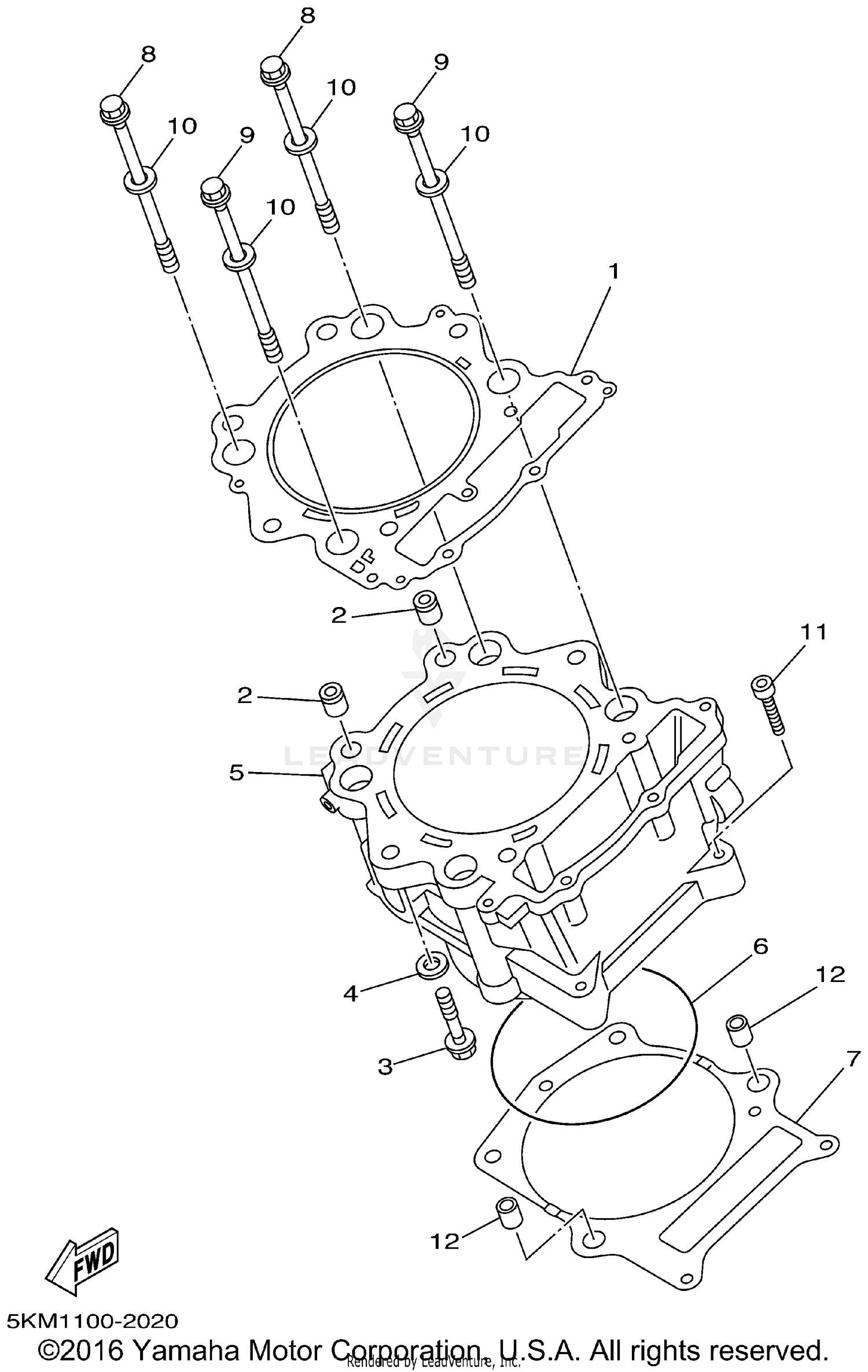

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, CYLINDER HEAD 1
3YF-11181-00-00
|
$87.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
PIN, DOWEL
93612-16254-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
BOLT, FLANGE
90105-09647-00
Superseded by 90105-09003-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-096J9-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
CYLINDER
5KM-11310-00-00
|
$721.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
93211-01467-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, CYLINDER
5KM-11351-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
90105-10649-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
90105-10650-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-101A4-00
Superseded by 90201-102G9-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
91317-06040-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, DOWEL
99530-14016-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
