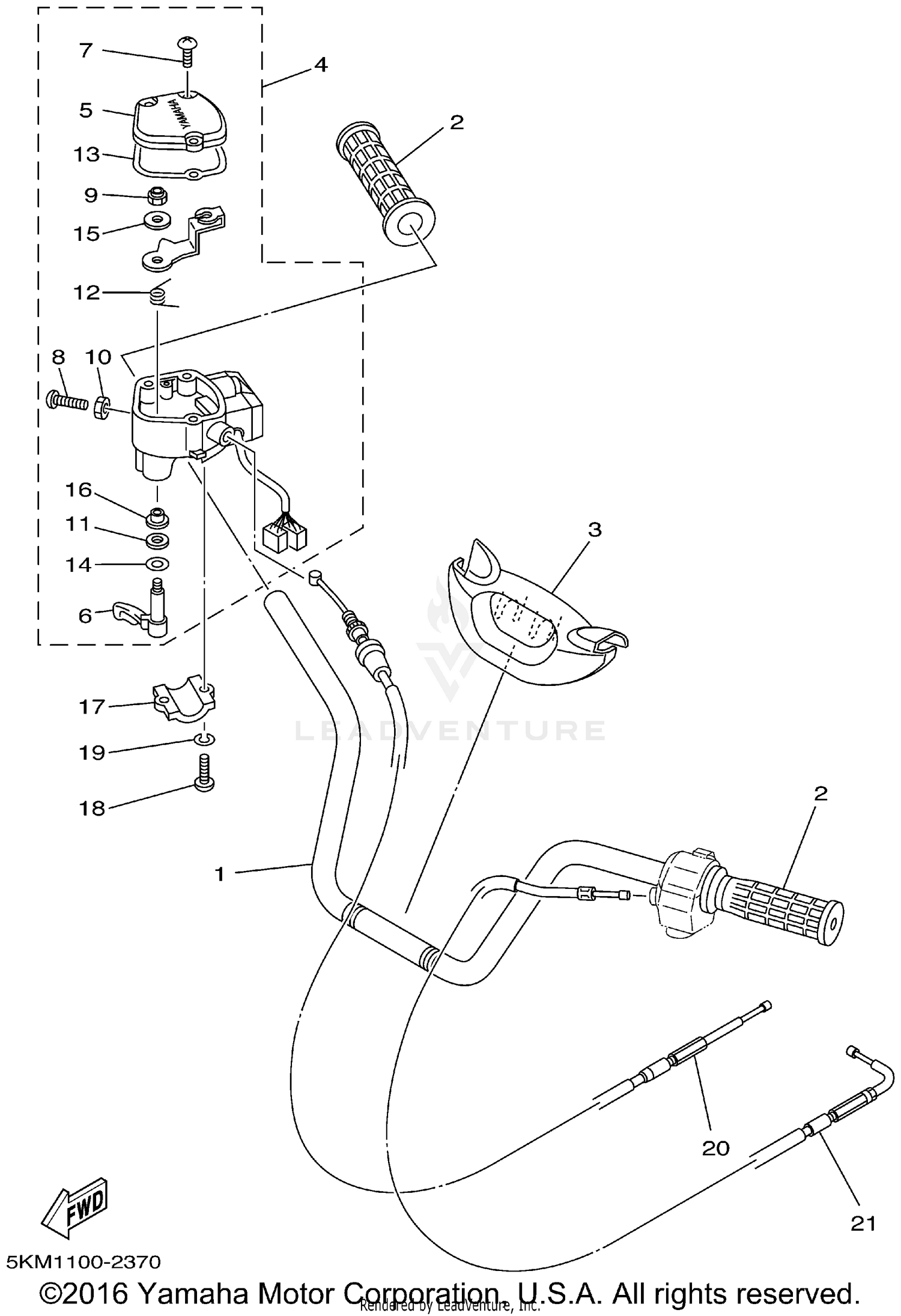

Steering Handle Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
5KM-26111-00-00
Superseded by 5KM-26111-20-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GRIP
3GB-26241-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PROTECTOR, HANDLEBAR
5KM-26124-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
THROTTLE LEVER ASSY
5KM-26250-00-00
Superseded by 5KM-26250-04-00
|
$247.99 | ||
|
Unavailable |
|||
|
#5
CAP, GEAR
4KB-2628F-10-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
LEVER, THROTTLE
1NV-2625G-01-00
Superseded by 1NV-2625G-02-00
|
$65.99 | ||
|
Unavailable |
|||
|
#7
SCREW
90149-04278-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98507-05020-00
Superseded by 98517-05020-00
|
$1.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
NUT, U
95607-05100-00
Superseded by 95617-05100-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
95307-05700-00
Superseded by 95317-05700-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL
93104-09025-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SPRING
1NV-26304-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
4KB-2628G-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
1NV-26129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPECIAL
1NV-26398-00-00
Superseded by 53L-83909-00-00
|
$4.55 | ||
|
Unavailable |
|||
|
#16
COLLAR
1NV-2625K-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOLDER, LEVER LOWER 1
4V4-82913-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN HEAD
98507-05020-00
Superseded by 98517-05020-00
|
$1.75 | ||
|
Unavailable |
|||
|
#19
WASHER, SPRING
92907-05100-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CABLE, THROTTLE 1
5KM-26311-00-00
Superseded by 5KM-26311-20-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CABLE, STARTER 1
5KM-26331-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
