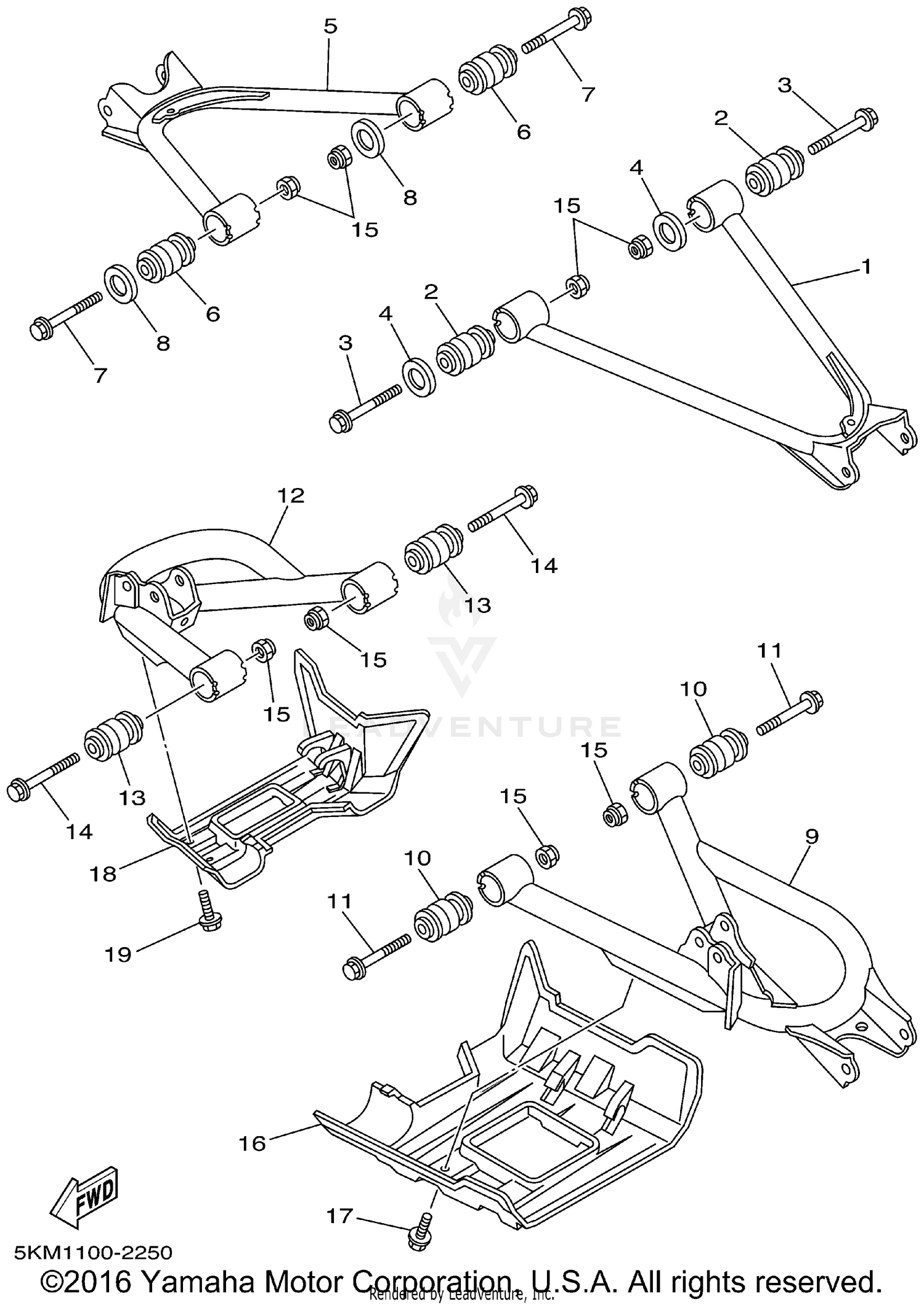

Rear Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ARM, REAR 1
5KM-22171-00-00
|
$117.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSH
5KM-23526-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
90105-10323-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
5KM-22149-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
ARM, REAR 2
5KM-22172-00-00
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH
5KM-23526-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#7
BOLT, FLANGE
90105-10323-00
|
$6.49 | ||
|
Unavailable |
|||
|
#8
WASHER
5KM-22149-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#9
ARM 1
5KM-2217M-00-00
|
$248.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSH
5KM-23526-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE
90105-10323-00
|
$6.49 | ||
|
Unavailable |
|||
|
#12
ARM 2
5KM-2217N-00-00
|
$205.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BUSH
5KM-23526-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE
90105-10323-00
|
$6.49 | ||
|
Unavailable |
|||
|
#15
NUT, SELF-LOCKING
90185-10060-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, THRUST 1
5KM-22128-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, WITH WASHER
90119-06117-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, THRUST 2
5KM-22129-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, WITH WASHER
90119-06117-00
|
$5.49 | ||
|
Unavailable |
|||
