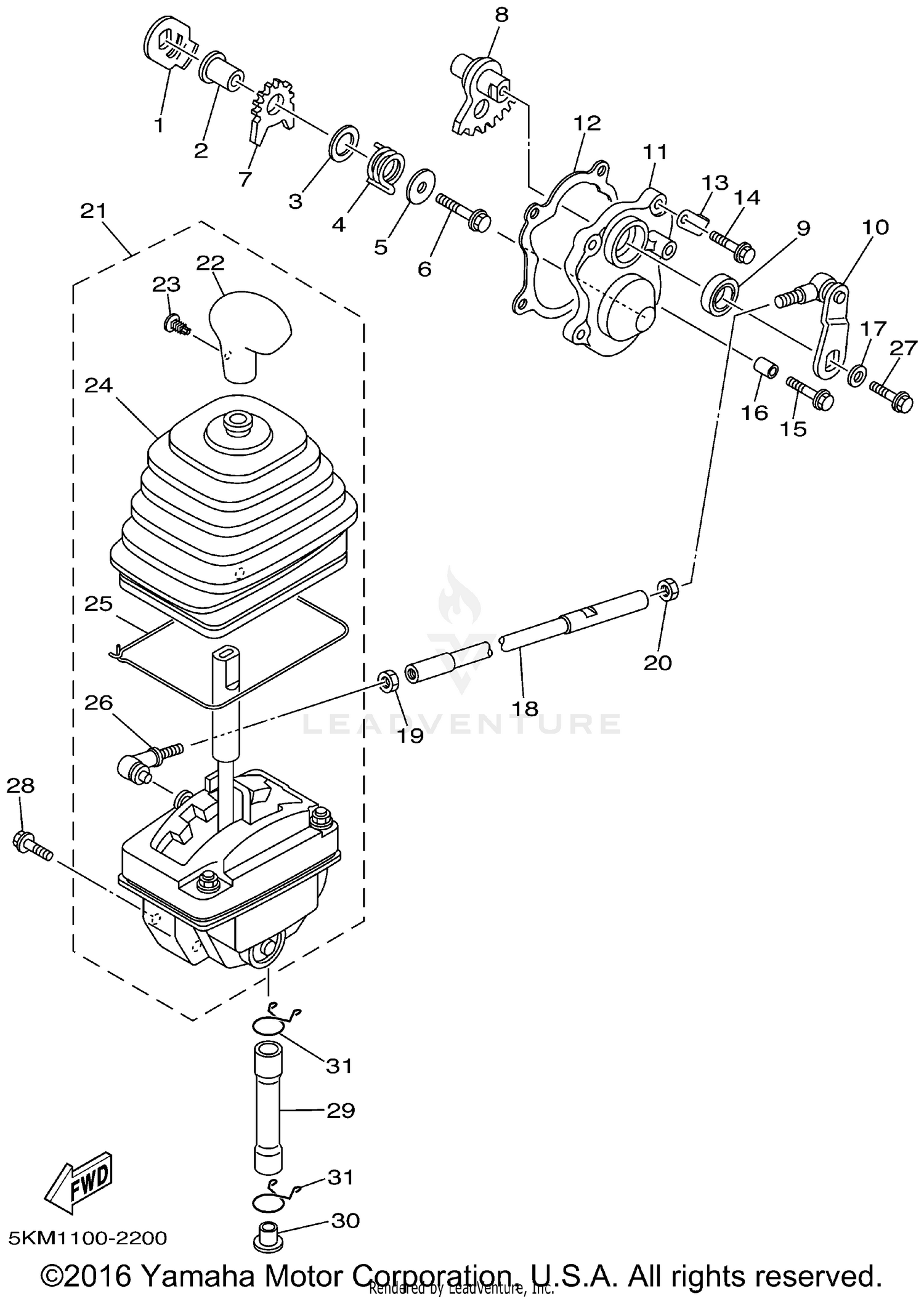

Shift Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEVER
4SH-18198-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-0613B-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-132G5-00
Superseded by 90201-13013-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TORSION
90508-35764-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-06008-00
Superseded by 90201-06M02-00
|
$2.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BOLT, FLANGE
95817-06035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
LEVER
5KM-18191-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT
5KM-18197-00-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL
93102-15212-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SHIFT GUIDE COMP.
5KM-18104-00-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, SHIFT SHAFT
5KM-18129-00-00
Superseded by 5KM-18129-01-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
5KM-18146-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
90465-10026-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95027-06020-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95027-06030-00
|
$4.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PIN, DOWEL
99530-08012-00
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-06008-00
Superseded by 90201-06M02-00
|
$2.55 | ||
|
Unavailable |
|||
|
#18
ROD, SHIFT
5KM-18115-00-00
|
$53.99 | ||
|
Unavailable |
|||
|
#19
NUT
90170-08358-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
95307-08700-00
Superseded by 95317-08700-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SHIFTER ASSY
5KM-18300-00-00
Superseded by 5KM-18300-04-00
|
$353.99 | ||
|
Unavailable |
|||
|
#22
KNOB, SHIFT LEVER
5GH-18174-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
RIVET
90269-05055-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOOT, SEALING
5KM-18131-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
STOPPER,RUBBER
5GH-18617-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
JOINT 2
1KT-18157-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE
95817-06016-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BOLT, FLANGE
95807-08020-00
Superseded by 95817-08020-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
HOSE (L90)
90446-16001-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#30
PLUG
90338-12081-00
Superseded by 90605-50201-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLIP
90467-15012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
