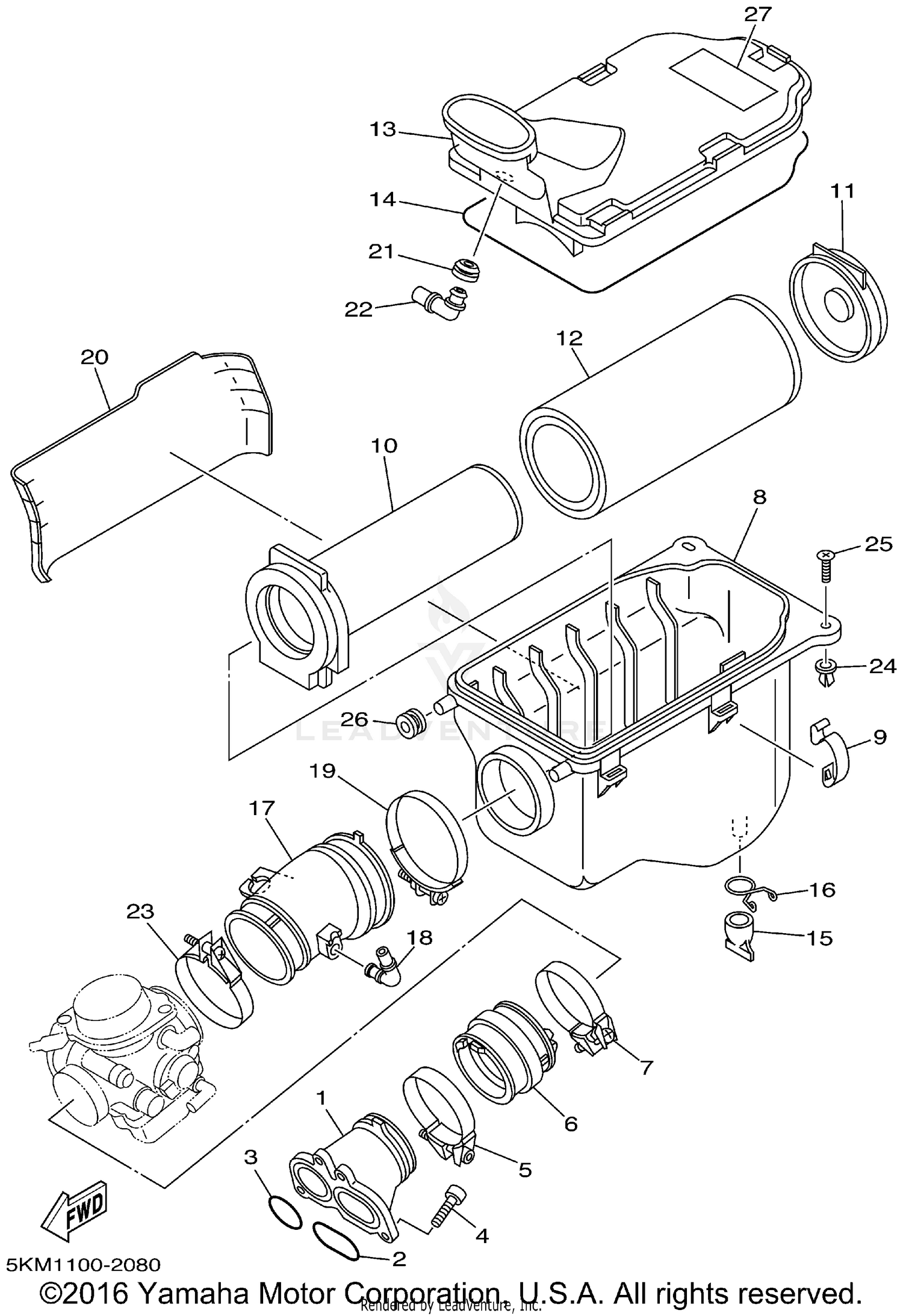

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, CARBURETOR 1
5KM-13586-00-00
Superseded by 5KM-13586-01-00
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING
93210-44545-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
O-RING
93210-321A8-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
91317-06020-00
|
$2.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
CLAMP, HOSE 1
90450-65001-00
Superseded by 1D6-11387-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
JOINT, CARBURETOR 2
5KM-13596-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE CLAMP ASSY
90460-59211-00
Superseded by 90450-62006-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CASE, AIR CLEANER 1
5KM-14411-00-00
Superseded by 5KM-14411-10-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOOK
5GH-14436-00-00
Superseded by 5TH-14436-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUIDE
1UY-14458-01-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE,ELEMENT FITTING
1UY-14468-00-00
|
$22.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
ELEMENT,AIR CLNR
1UY-14451-00-00
Superseded by 1UY-14451-01-00
|
$15.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CAP, CLEANER CASE 1
5KM-14412-00-00
Superseded by 5KM-14412-10-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL
5KM-14452-00-00
Superseded by 1VJ-14462-00-00
|
$19.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SEAL
59V-14457-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP
90467-22080-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
JOINT, AIR CLEANER 1
5KM-14453-00-00
Superseded by 5KM-14453-01-00
|
$45.99 | ||
|
Unavailable |
|||
|
#18
PIPE
31A-14419-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
HOSE CLAMP ASSY
90460-75020-00
Superseded by 90450-75002-00
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
PROTECTOR
5KM-1442F-00-00
Superseded by 5KM-1442F-01-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GROMMET
31A-14435-00-00
Superseded by 31A-14435-01-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIPE
5KM-14419-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE CLAMP ASSY
90450-67001-00
Superseded by 90450-67002-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLUG
90338-08226-00
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
SCREW, TAPPING
97707-60025-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#26
GROMMET
90480-18290-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PLATE, EPA 3 (CALIFORNIA)
5KM-2179T-00-00
|
$2.35 | ||
|
Unavailable |
|||
