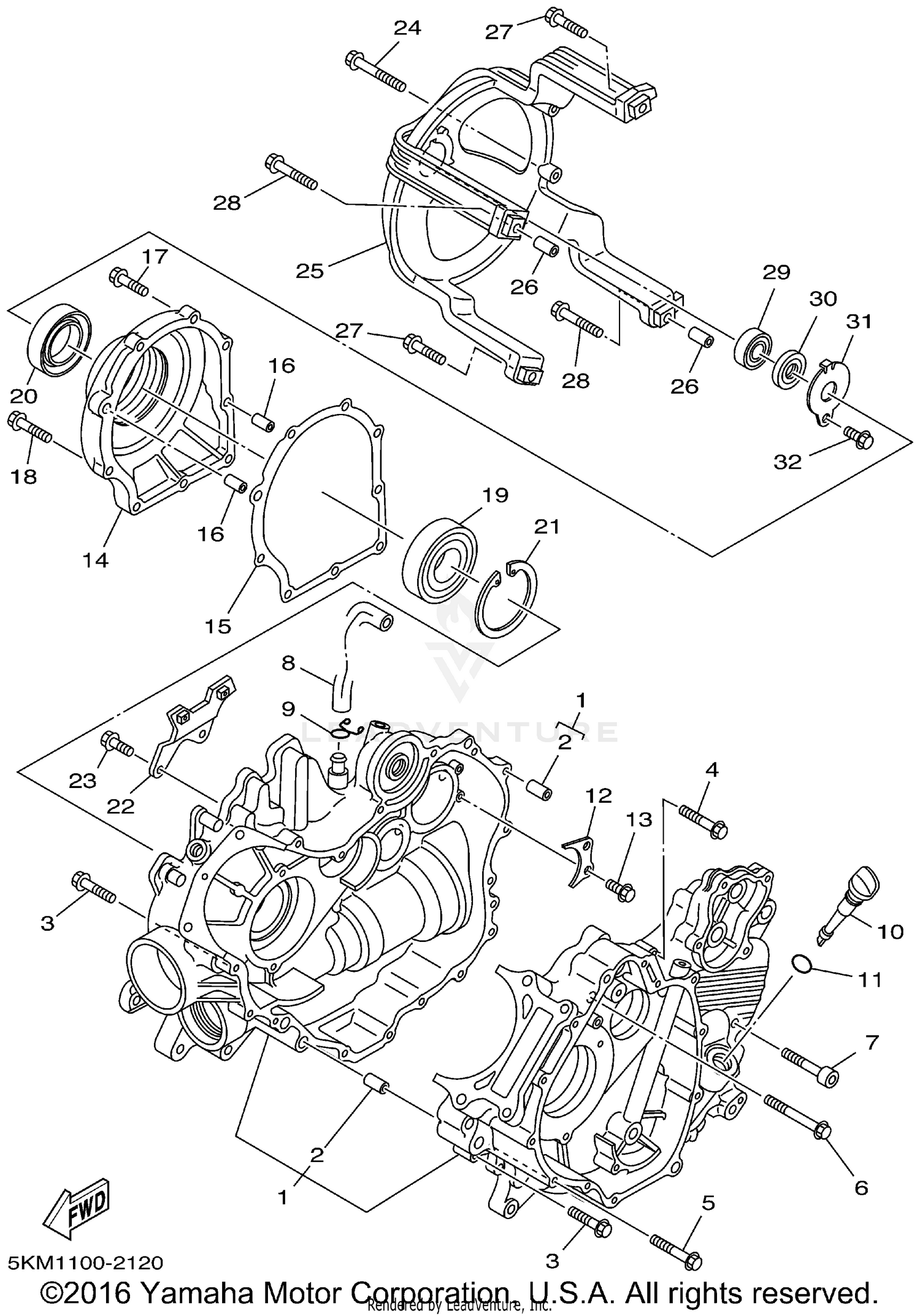

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY
5KM-15100-00-00
Superseded by 99999-03456-00
|
$1,248.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN, DOWEL
99530-10116-00
|
$4.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
BOLT, FLANGE
95027-06030-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
90105-06031-00
Superseded by 95027-06030-00
|
$4.30 | ||
|
Unavailable |
|||
|
#5
BOLT, FLANGE
95027-06040-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BOLT, FLANGE
95027-06055-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
91317-08040-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE, BREATHER 1
5KM-11166-00-00
Superseded by 5KM-11166-10-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP
90467-14015-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
PLUG, OIL LEVEL
5KM-15362-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
93210-19522-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
PLATE, BEARING COVER
4WV-15388-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95027-06016-00
Superseded by 90105-06696-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOUSING, BEARING 1
5KM-15163-00-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, COVER PINION 2
5KM-15463-00-00
|
$17.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PIN, DOWEL
99530-10116-00
|
$4.40 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE
95027-06030-00
|
$4.30 | ||
|
Unavailable |
|||
|
#18
BOLT, FLANGE
95027-06040-00
|
$3.55 | ||
|
Unavailable |
|||
|
#19
BEARING
93316-01003-00
|
$113.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL
93102-35004-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CIRCLIP
99009-80500-00
Superseded by 93420-80066-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRACKET
5KM-15199-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
95817-06016-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT, FLANGE
95827-06050-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOUSING, BEARING
5KM-15442-00-00
|
$295.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, DOWEL
99530-10116-00
|
$4.40 | ||
|
Unavailable |
|||
|
#27
BOLT,FLANGE
95827-06030-00
Superseded by 95817-06030-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE
95827-06040-00
Superseded by 95817-06040-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING
93306-20120-00
Superseded by 93306-20117-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
OIL SEAL
93101-12168-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
PLATE, BEARING COVER
4WV-15381-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE
95027-06012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
