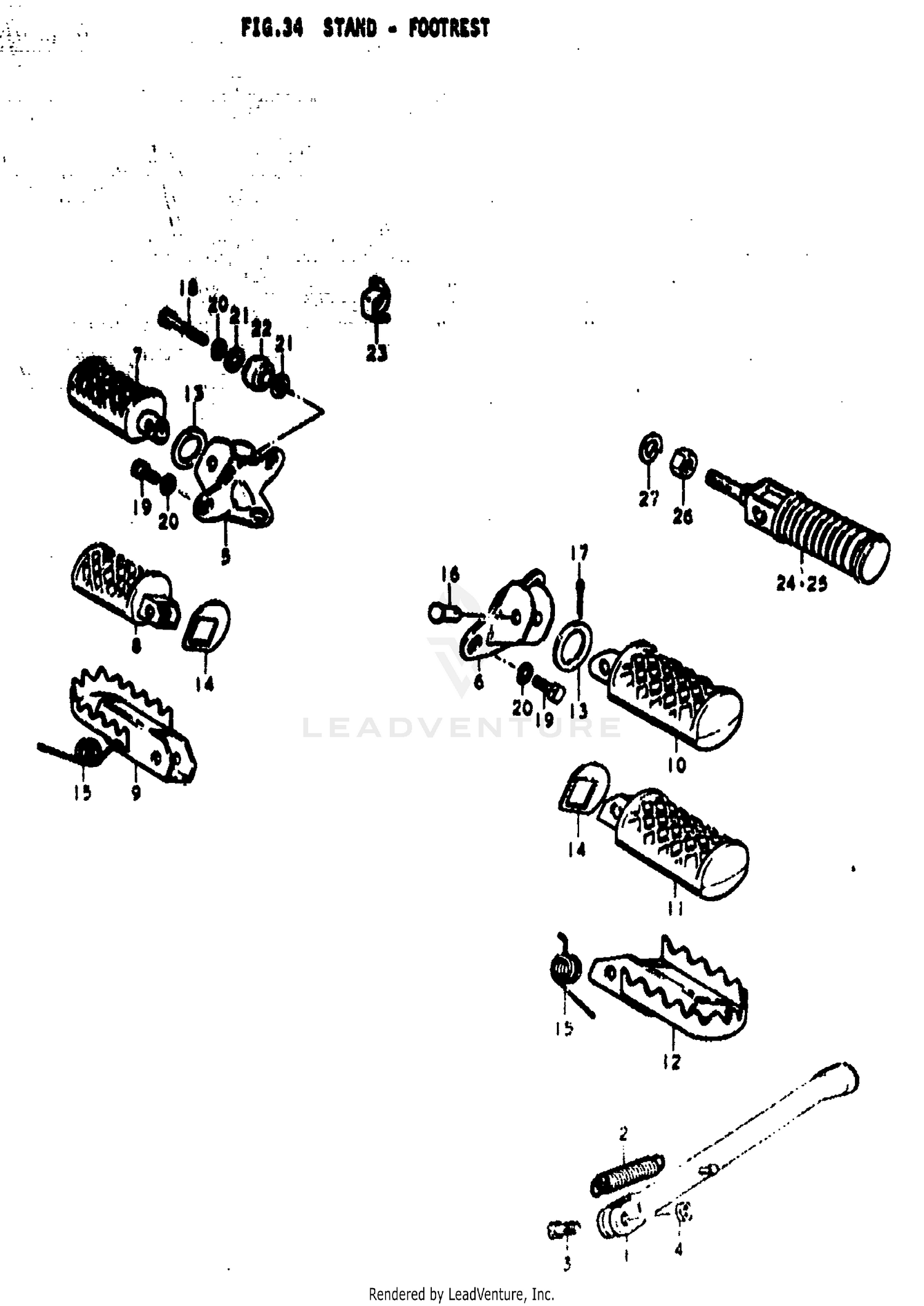

Stand - Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, PROP
42310-29000
|
$21.81 | ||
|
Unavailable |
|||
|
#2
SPRING
09443-14005
Superseded by 09443-14017
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
09100-10067
|
$3.06 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
08312-31108
Superseded by 08310-00107
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
FOOTREST HOLDER, FRONT RH
43510-29000
Superseded by 43510-29001
|
$24.11 | ||
|
Unavailable |
|||
|
#5
FOOTREST HOLDER, FRONT RH
43510-29001
|
$24.11 | ||
|
Unavailable |
|||
|
#6
FOOTREST BAR, FRONT LH
43520-29000
Superseded by 43520-29001
|
$26.60 | ||
|
Unavailable |
|||
|
#6
FOOTREST HOLDER, FRONT LH
43520-29001
|
$26.60 | ||
|
Unavailable |
|||
|
#7
RUBBER, RH
43550-25000
Superseded by 43550-25301
|
$16.53 | ||
|
Unavailable |
|||
|
#8
FOOTREST, RH
43550-25301
|
$16.53 | ||
|
Unavailable |
|||
|
#9
FOOTREST, RH
43550-25302
|
$10.86 | ||
|
Unavailable |
|||
|
#10
RUBBER, LH
43560-25000
Superseded by 43560-25301
|
$16.29 | ||
|
Unavailable |
|||
|
#11
FOOTREST, LH
43560-25301
|
$16.29 | ||
|
Unavailable |
|||
|
#12
FOOTREST, LH
43560-25302
|
$12.30 | ||
|
Unavailable |
|||
|
#13
WASHER
09160-22002
Superseded by 09160-22033
|
$4.81 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, FRONT FOOTREST
43581-25300
|
$3.01 | ||
|
Unavailable |
|||
|
#15
SPRING
09448-14012
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN
09200-08002
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN
04111-20208
Superseded by 04111-2020A
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
01122-08358
Superseded by 01500-0835B
|
$3.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, LH
09100-08067
Superseded by 09100-08143
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#20
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WASHER
08322-11088
Superseded by 08322-01087
|
$2.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
CUSHION, KICK LEVER STOPPER
43534-16400
|
$2.62 | ||
|
Unavailable |
|||
|
#23
PLATE, KICK LEVER STOPPER
43543-29000
|
$0.93 | ||
|
Unavailable |
|||
|
#24
FOOTREST ASSY, PILLION RH
43600-28000
|
$15.62 | ||
|
Unavailable |
|||
|
#25
FOOTREST ASSY,P
43600-03001
Superseded by 43600-09D00
|
$29.50 | ||
|
Available to order. Add to View Price |
|||
|
#25
FOOTREST ASSY, PILLION LH
43600-36200
|
$32.64 | ||
|
Unavailable |
|||
|
#26
NUT, FIXED DRIVE FACE
08312-31128
Superseded by 09140-12039
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#27
LOCK WASHER
08321-21128
Superseded by 08321-01127
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
