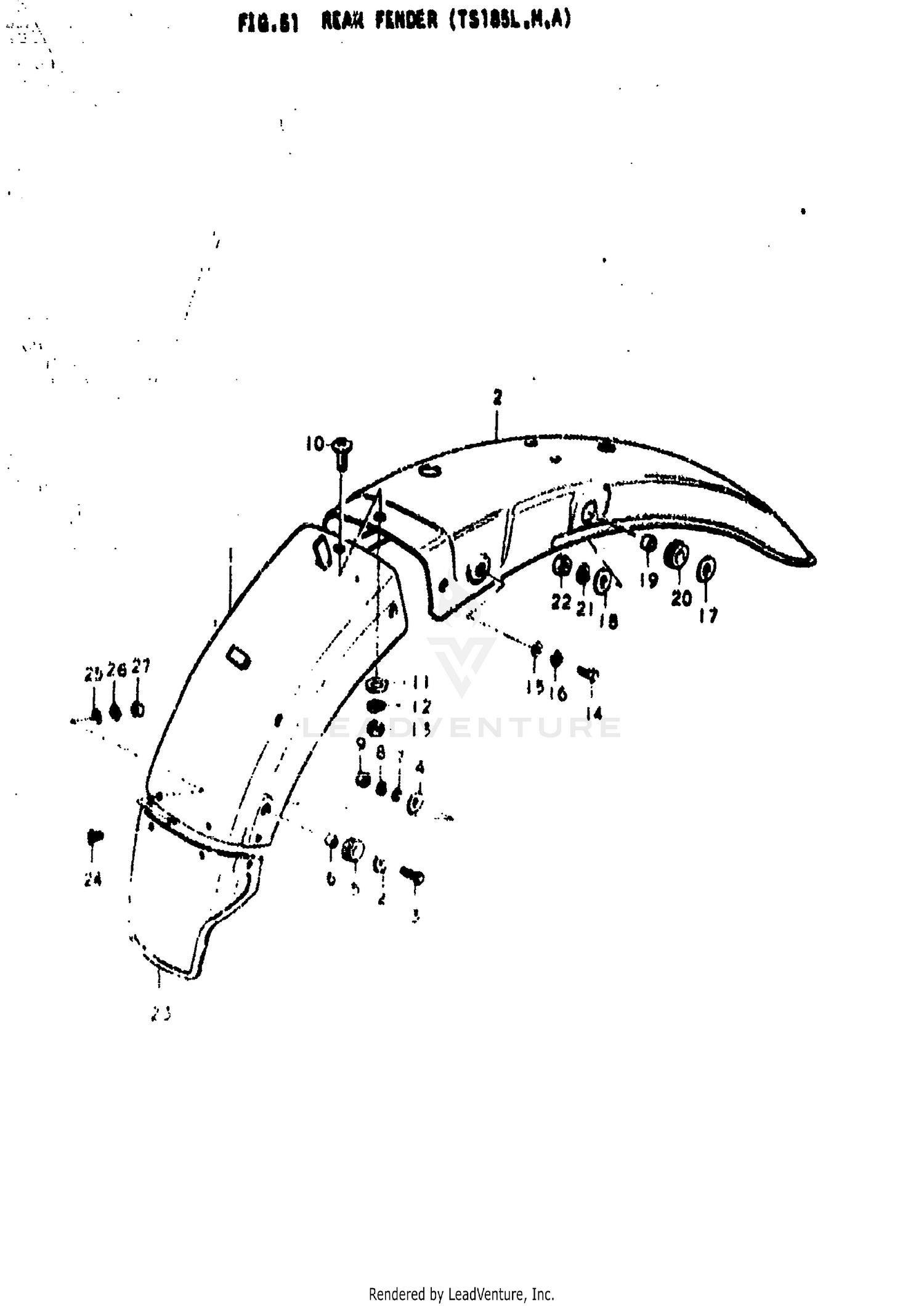

Rear Fender (ts185l Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#9
.NUT
08311-11068
Superseded by 08310-00067
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SCREW
02141-05127
Superseded by 02142-05127
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
08322-21058
Superseded by 08322-01057
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
LOCK WASHER
08321-21058
Superseded by 08321-0105A
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
08311-11058
Superseded by 08310-00057
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
01112-06128
Superseded by 01500-06127
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
08322-21068
Superseded by 08322-01067
|
$2.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER
09160-10041
|
$2.30 | ||
|
Unavailable |
|||
|
#18
WASHER
09160-10041
|
$2.30 | ||
|
Unavailable |
|||
|
#19
SPACER
09180-10026
|
$0.48 | ||
|
Unavailable |
|||
|
#20
FENDER SIDE CUS
09320-12011
Superseded by 09320-12090
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#21
LOCK WASHER
08321-21108
Superseded by 08321-01107
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
08312-31108
Superseded by 08310-00107
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#23
GUARD, NUD
63411-29000
|
$7.80 | ||
|
Unavailable |
|||
|
#24
SCREW
02141-05108
|
|||
|
Unavailable |
|||
|
#25
WASHER (5.2X16X1)
09160-05013
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#26
LOCK WASHER
08321-21058
Superseded by 08321-0105A
|
$2.22 | ||
|
Unavailable |
|||
|
#27
NUT
08311-11058
Superseded by 08310-00057
|
$2.22 | ||
|
Unavailable |
|||
|
#1
BODY, REAR FENDER FRONT
63110-29600
|
|||
|
Unavailable |
|||
|
#1
BODY, REAR TENDER FRONT
63110-29601
|
$47.59 | ||
|
Unavailable |
|||
|
#2
FENDER, REAR
63110-28400-737
|
|||
|
Unavailable |
|||
|
#2
NO DESCRIPTION AVAILABLE
63110-28402-189
Superseded by 63110-28402-13L
|
$99.25 | ||
|
Unavailable |
|||
|
#3
BOLT
01112-06208
Superseded by 01500-06207
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
WASHER (6.5X20X1.2)
09160-06027
Superseded by 09160-06077
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION (8.5X20X8)
09320-08007
Superseded by 09320-08510
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER
09180-06038
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
08322-21068
Superseded by 08322-01067
|
$2.25 | ||
|
Unavailable |
|||
|
#8
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.22 | ||
|
Unavailable |
|||
