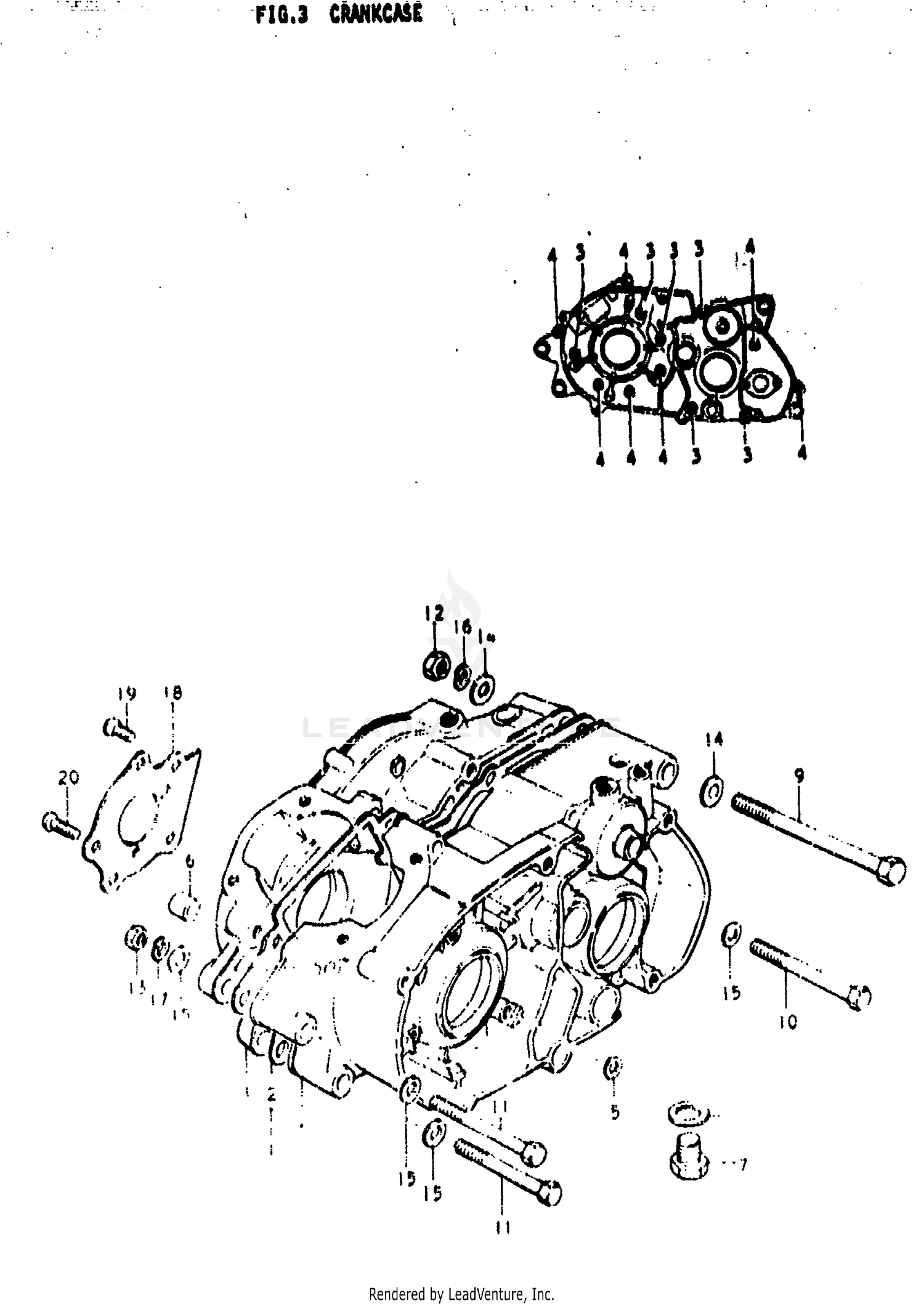

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11302-29802
|
|||
|
Unavailable |
|||
|
#1
CRANKCASE SET
11300-29811
|
$190.90 | ||
|
Unavailable |
|||
|
#1
CRANKCASE SET
11300-29842
|
|||
|
Unavailable |
|||
|
#2
NO DESCRIPTION AVAILABLE
11481-29000
Superseded by 11481-29201
|
$16.82 | ||
|
Unavailable |
|||
|
#2
NO DESCRIPTION AVAILABLE
11481-29200
Superseded by 11481-29201
|
$16.82 | ||
|
Unavailable |
|||
|
#3
SCREW
02112-06657
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW (6X45)
02112-06458
Superseded by 02112-06457
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
.WASHER
08322-11066
Superseded by 08322-0106B
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN
09206-13001
Superseded by 04211-13189
|
$2.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
PLUG (MAGNETO)
09247-14001
Superseded by 09247-14002
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG, DRAIN
09247-10001
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
09168-14004
|
$1.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
GASKET
09168-10002
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT
09100-10060
Superseded by 09116-10032
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
09100-08078
|
$1.77 | ||
|
Unavailable |
|||
|
#11
BOLT
01122-08708
Superseded by 01500-0870B
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
08312-12108
Superseded by 08310-00107
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
08312-11088
Superseded by 08310-00087
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WASHER
08322-11108
Superseded by 08322-01107
|
$2.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER
08322-11088
Superseded by 08322-01087
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
LOCK WASHER
08321-21108
Superseded by 08321-01107
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#17
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
PLATE, OIL RESERVOLR
12521-28002
|
$4.37 | ||
|
Unavailable |
|||
|
#19
SCREW
02122-06168
Superseded by 02122-06167
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW
02112-06168
Superseded by 02112-06167
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
