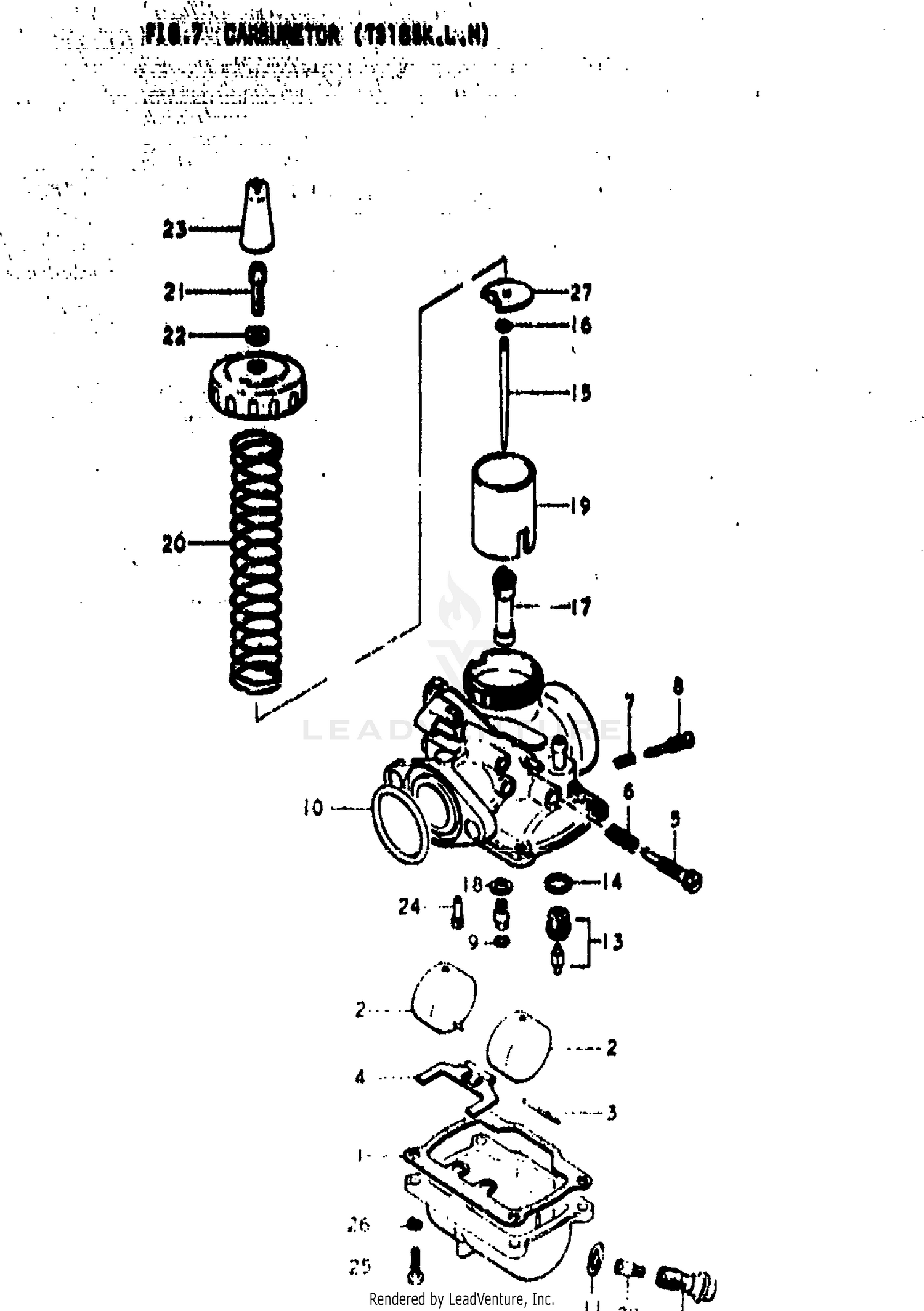

Carburetor (ts185k Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#0
CARBURETOR ASSY
13200-29601
|
|||
|
Unavailable |
|||
|
#0
CARBURETOR ASSY
13200-29603
|
|||
|
Unavailable |
|||
|
#0
CARBURETOR ASSY
13200-29620
|
$86.30 | ||
|
Unavailable |
|||
|
#1
GASKET, FLEET CHAMBER
13251-11010
|
$6.94 | ||
|
Available to order. Add to View Price |
|||
|
#2
FLOAT
13252-18620
|
$27.73 | ||
|
Available to order. Add to View Price |
|||
|
#3
.PIN,FLOAT
13254-35013
Superseded by 13254-01010
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
ARM, FLOAT
13253-28010
|
$2.92 | ||
|
Unavailable |
|||
|
#5
SCREW, THROTTLE STOP
13267-15110
Superseded by 13267-40230
|
$10.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, THROTTLE STOP
13267-28110
|
$7.71 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, THROTTLE STOP
13268-03110
|
$5.90 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, PILOT AIR
13268-01010
|
$5.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SCREW, PILOT AIR
13269-15010
|
$10.19 | ||
|
Unavailable |
|||
|
#9
O RING, NEEDLE JET
13294-28010
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#10
O RING
13295-28010
Superseded by 13295-28011
|
$4.14 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, UNION BOLT
13332-97010
|
$1.55 | ||
|
Unavailable |
|||
|
#11
WASHER, UNION BOLT
13332-97015
|
$0.23 | ||
|
Unavailable |
|||
|
#12
UNION BOLT
13333-29110
|
$8.18 | ||
|
Unavailable |
|||
|
#13
VALVE,NEEDLE
13370-28010
Superseded by 13370-48051
|
$67.83 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, NEODLE VALVE
13392-58600
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#15
NEEDLE, JET
13383-29010
|
$7.79 | ||
|
Unavailable |
|||
|
#15
NEEDLE, JET
13383-29110
|
$4.08 | ||
|
Unavailable |
|||
|
#16
CLIP, NEEDLE
13394-03010
|
$5.03 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP, NEEDLE
13394-10010
|
$5.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NOZZLE, NEEDLE
09494-00085
Superseded by 09494-00139
|
$11.53 | ||
|
Unavailable |
|||
|
#17
NOZZLE, NEEDLE
09494-00139
|
$11.53 | ||
|
Unavailable |
|||
|
#17
NOZZLE, NEEDLE
09494-00152
|
|||
|
Unavailable |
|||
|
#18
WASHER, NEEDLE JET
13382-03110
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#19
VALVE, THROTTLE
13551-97010
|
$20.03 | ||
|
Unavailable |
|||
|
#19
VALVE, THROTTLE
13551-29110
|
$18.78 | ||
|
Unavailable |
|||
|
#20
SPRING, THROTTLE VALVE
13573-97010
Superseded by 13573-30900
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#21
ADJUSTER
13577-03010
Superseded by 13577-48110
|
$8.97 | ||
|
Available to order. Add to View Price |
|||
|
#21
ADJUSTER, CABLE
13577-22600
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, CABLE ADJUSTER
13661-16600
|
$5.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOOT, CABLE ADJUSTER
13681-16600
|
$4.79 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOOT, CABLE ADJUSTER
13681-16601
|
$10.50 | ||
|
Available to order. Add to View Price |
|||
|
#24
JET, PILOT (25)
09492-25003
Superseded by 09492-25005
|
$11.80 | ||
|
Available to order. Add to View Price |
|||
|
#24
JET, PILOT (17.5)
09492-17002
Superseded by 09492-17006
|
$11.74 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW
02111-04168
Superseded by 02112-0416A
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#26
LOCK WASHER
08321-21048
Superseded by 08321-0104A
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#27
SEAT, THROTTLE VALVE SPRING
13581-28010
|
$8.59 | ||
|
Available to order. Add to View Price |
|||
|
#28
JET, MAIN
09491-26003
|
$10.35 | ||
|
Available to order. Add to View Price |
|||
|
#28
JET, MAIN
09491-25004
Superseded by 09491-25009
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#28
JET, MAIN (120)
09491-24002
Superseded by 09491-24014
|
$9.01 | ||
|
Unavailable |
|||
|
#28
JET, MAIN
09491-25004
Superseded by 09491-25009
|
$8.28 | ||
|
Unavailable |
|||
|
#28
JET, MAIN
09491-26003
|
$10.35 | ||
|
Unavailable |
|||
|
#28
JET,MAIN #135
09491-27005
Superseded by 09491-27015
|
$17.78 | ||
|
Available to order. Add to View Price |
|||
|
#28
JET, MAIN
09491-28002
Superseded by 09491-28009
|
$9.29 | ||
|
Available to order. Add to View Price |
|||
|
#28
JET, MAIN
09491-29002
|
$11.36 | ||
|
Available to order. Add to View Price |
|||
