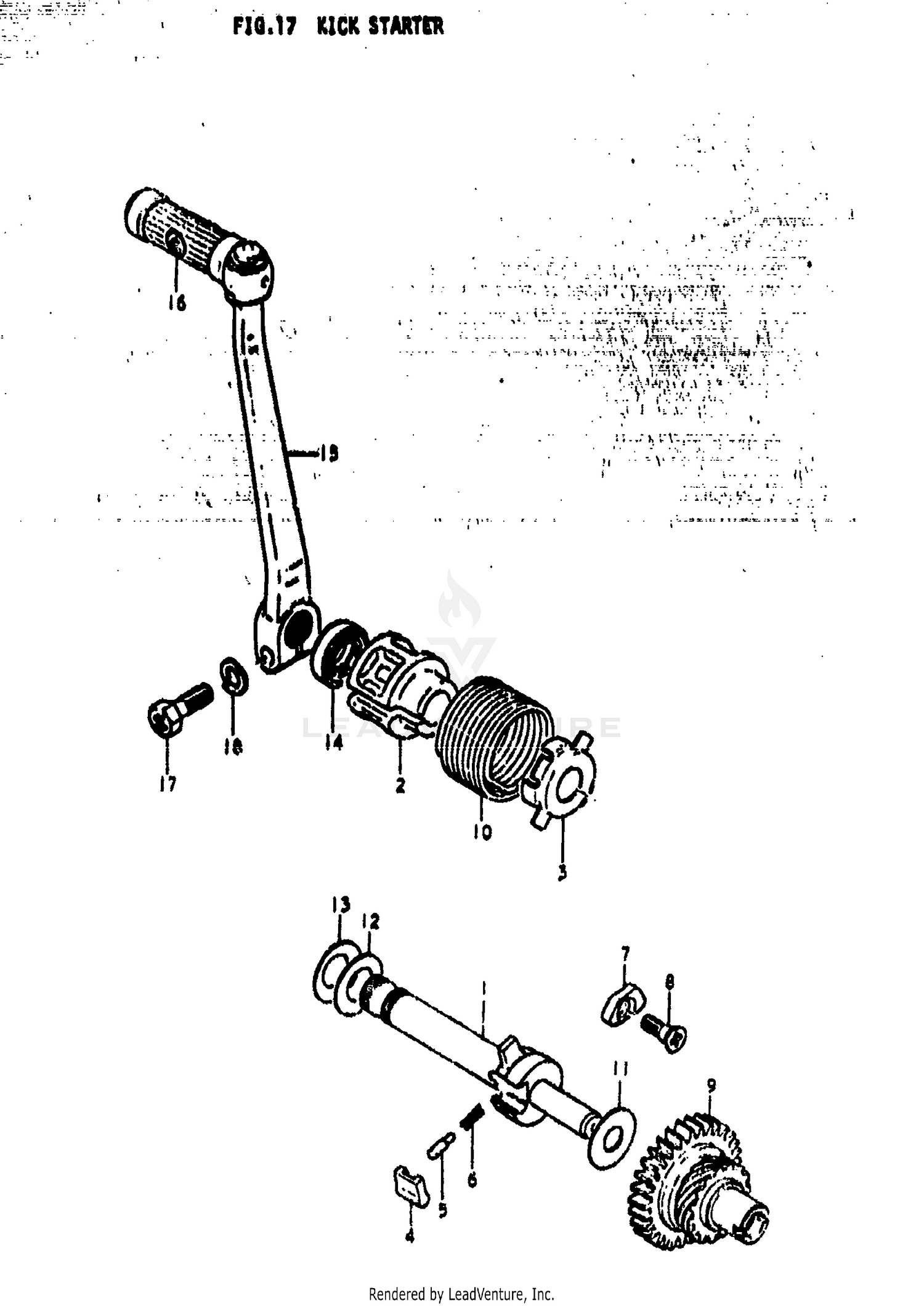

Kick Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT, KICK STARTER
26211-25000
|
$47.41 | ||
|
Unavailable |
|||
|
#2
GUIDE, SPRING
26221-25030
|
$5.22 | ||
|
Unavailable |
|||
|
#3
HOLDER, SPRING
26222-25000
|
$3.11 | ||
|
Unavailable |
|||
|
#4
PAWL, KICK STARTER
26231-20000
|
$9.83 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN
09209-05011
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING
09440-04010
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
LIFTER, PAWL
26232-01000
|
$6.91 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
09139-06092
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, KICK STARTER DRIVE
26240-28001
Superseded by 26240-28002
|
$95.35 | ||
|
Unavailable |
|||
|
#9
GEAR, KICK STARTER DRIVE
26240-28002
|
$95.35 | ||
|
Unavailable |
|||
|
#10
SPRING
09448-48001
|
$4.48 | ||
|
Unavailable |
|||
|
#11
WASHER
08211-12302
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
09160-16016
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
09164-16001
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL,OIL(16X30X
09285-16002
Superseded by 09285-16005
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#15
LEVER ASSY, KICK STARTER
26300-29001
|
|||
|
Unavailable |
|||
|
#15
LEVER ASSY,KICK
26300-12002
Superseded by 26300-29004
|
$78.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
RUBBER,KICK STA
26352-01000
Superseded by 26352-01020
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
01122-08258
Superseded by 01500-08257
|
$3.06 | ||
|
Available to order. Add to View Price |
|||
|
#18
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
