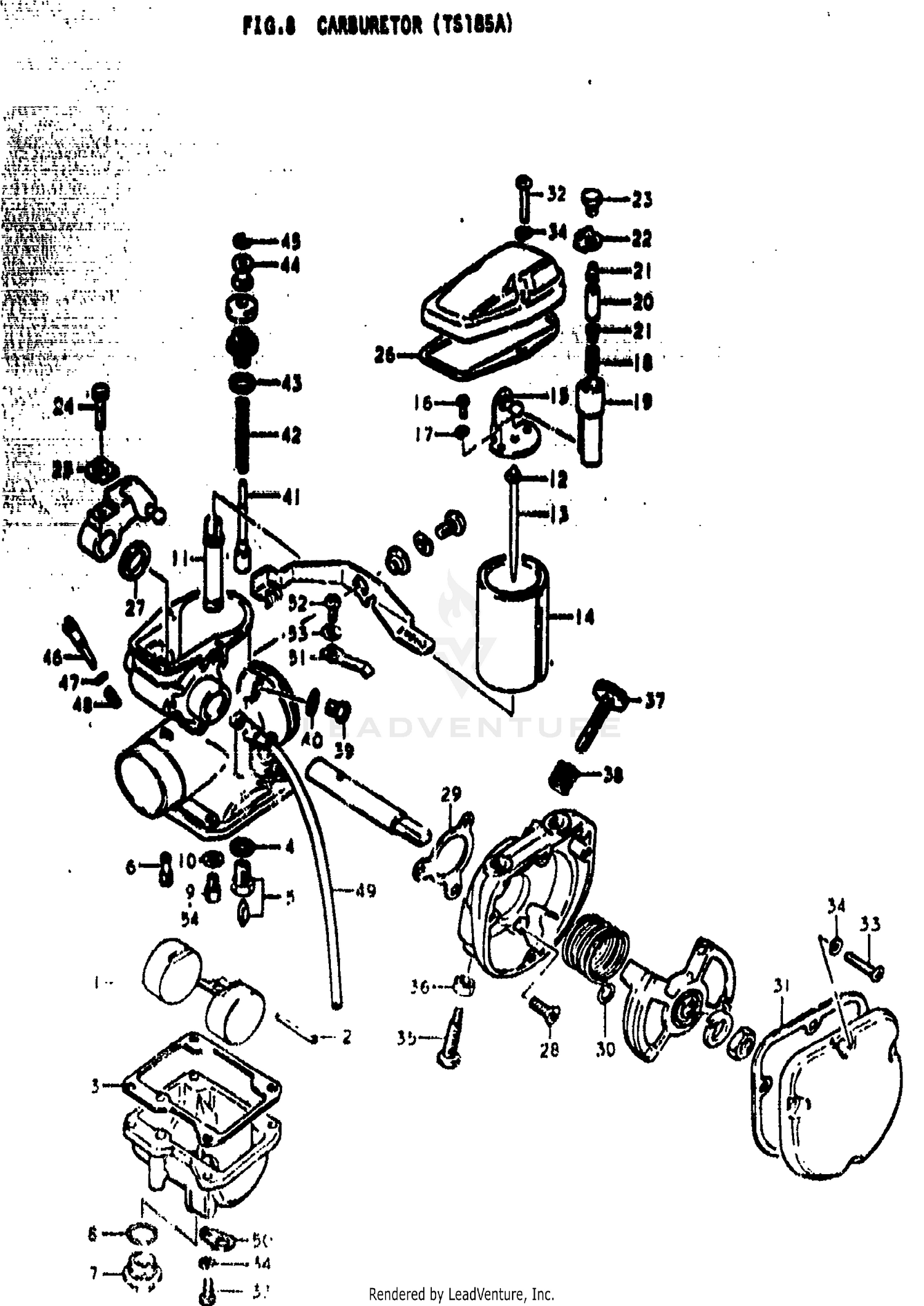

Carburetor (ts185a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
NO DESCRIPTION AVAILABLE
13200-29630
Superseded by 13200-29631
|
$111.68 | ||
|
Unavailable |
|||
|
#1
FLOAT
13252-29630
|
$29.65 | ||
|
Available to order. Add to View Price |
|||
|
#2
.PIN,FLOAT
13254-01010
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET
13251-29630
|
$6.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, VALVE
13251-29630
|
$6.55 | ||
|
Unavailable |
|||
|
#5
VALVE ASSY, NEEDLE
13370-29630
Superseded by 13370-30651
|
$53.94 | ||
|
Available to order. Add to View Price |
|||
|
#6
JET, PILOT (25)
09492-25003
Superseded by 09492-25005
|
$11.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG, DRAIN
13247-29630
|
$8.31 | ||
|
Unavailable |
|||
|
#8
O RING
13246-29630
|
$6.81 | ||
|
Available to order. Add to View Price |
|||
|
#9
JET, MAIN
09491-26003
|
$10.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER
13382-03110
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
JET, NEEDLE
09494-00170
|
$5.34 | ||
|
Unavailable |
|||
|
#12
CLIP
13394-10010
|
$5.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
NEEDLE, JET
13383-97311
|
$6.04 | ||
|
Unavailable |
|||
|
#14
VALVE, PISTON
13551-29630
|
$31.10 | ||
|
Unavailable |
|||
|
#15
BRACKET
13398-30650
|
$6.78 | ||
|
Unavailable |
|||
|
#16
SCREW
02111-03067
Superseded by 02112-0306B
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER,LOCK
08321-21038
Superseded by 09162-03001
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING
13543-43010
|
$1.59 | ||
|
Unavailable |
|||
|
#19
CONNECTOR
13545-32212
|
$8.57 | ||
|
Unavailable |
|||
|
#20
PIN
13546-30650
|
$1.73 | ||
|
Unavailable |
|||
|
#21
PIN
13544-43010
|
$2.22 | ||
|
Unavailable |
|||
|
#22
PLATE
13547-43010
|
$1.75 | ||
|
Unavailable |
|||
|
#23
SCREW
13548-32212
|
$3.11 | ||
|
Unavailable |
|||
|
#24
BOLT
13613-30650
|
$2.84 | ||
|
Unavailable |
|||
|
#25
PLATE
13576-30650
|
$0.47 | ||
|
Unavailable |
|||
|
#26
GASKET
13266-29630
|
$4.28 | ||
|
Unavailable |
|||
|
#27
RING
13574-29630
|
$1.05 | ||
|
Unavailable |
|||
|
#28
SCREW
02121-05147
Superseded by 09126-05005
|
$2.52 | ||
|
Available to order. Add to View Price |
|||
|
#29
GASKET
13632-29630
|
$2.29 | ||
|
Unavailable |
|||
|
#30
SPRING
13573-29630
|
$2.98 | ||
|
Unavailable |
|||
|
#31
GASKET
13631-29630
|
$1.95 | ||
|
Unavailable |
|||
|
#32
SCREW
02111-04258
|
|||
|
Unavailable |
|||
|
#33
SCREW
02111-04168
Superseded by 02112-0416A
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#34
LOCK WASHER
08321-21048
Superseded by 08321-0104A
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, GEAR SHIFT LINK
13605-32212
Superseded by 01500-0620A
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#36
.NUT
08311-31068
Superseded by 08310-00067
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
ADJUSTER, THROTTLE
13267-29630
|
$7.57 | ||
|
Unavailable |
|||
|
#38
SPRING
13268-33110
|
$2.98 | ||
|
Unavailable |
|||
|
#39
PLUG
13664-18654
|
$9.71 | ||
|
Available to order. Add to View Price |
|||
|
#40
GASKET
13663-31010
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#41
VALVE, STARTER
13411-33110
|
$17.04 | ||
|
Unavailable |
|||
|
#42
SPRING
13417-18630
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
O RING
13295-15010
Superseded by 09280-08014
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#44
BUSH
13424-33110
|
$6.91 | ||
|
Available to order. Add to View Price |
|||
|
#45
CLIP
13617-33110
|
$1.22 | ||
|
Unavailable |
|||
|
#46
SCREW, AIR PILOT
13269-15011
|
$12.72 | ||
|
Available to order. Add to View Price |
|||
|
#47
.O-RING
13295-33010
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#48
SPRING
13268-35010
|
$5.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#49
.HOSE
13684-30010
Superseded by 13684-40A00
|
$12.18 | ||
|
Available to order. Add to View Price |
|||
|
#50
PLATE
13693-30650
|
$0.60 | ||
|
Unavailable |
|||
|
#51
SPRING
13426-29630
|
|||
|
Unavailable |
|||
|
#52
SCREW
02111-04067
Superseded by 02112-0406B
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#53
LOCK WASHER
08321-21048
Superseded by 08321-0104A
|
$2.25 | ||
|
Unavailable |
|||
|
#54
JET, MAIN (115)
09491-23008
Superseded by 09491-23010
|
$7.42 | ||
|
Unavailable |
|||
|
#54
JET, MAIN (120)
09491-24002
Superseded by 09491-24014
|
$9.01 | ||
|
Unavailable |
|||
|
#54
JET, MAIN
09491-25004
Superseded by 09491-25009
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#54
JET,MAIN #135
09491-27005
Superseded by 09491-27015
|
$17.78 | ||
|
Available to order. Add to View Price |
|||
|
#54
JET, MAIN
09491-28002
Superseded by 09491-28009
|
$9.29 | ||
|
Available to order. Add to View Price |
|||
|
#54
JET, MAIN
09491-29002
|
$11.36 | ||
|
Available to order. Add to View Price |
|||
