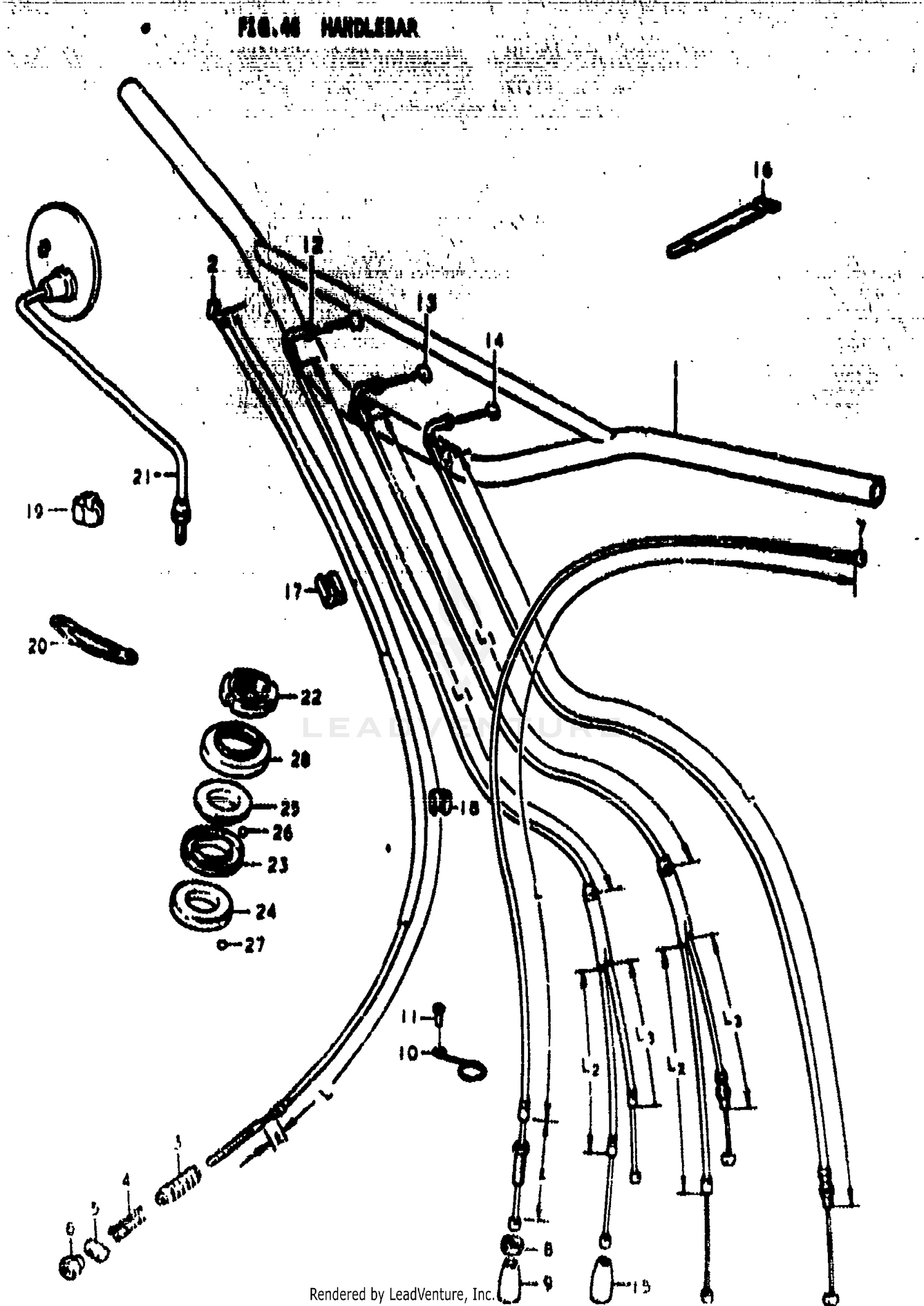

Handlebar Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
56110-28001
|
$106.09 | ||
|
Unavailable |
|||
|
#2
CABLE,FR BRAKE
58100-28100
Superseded by 58100-28090
|
$26.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
DUST SEAL
09287-07001
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING
09440-06003
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN (10X19)
09209-10001
|
$1.61 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
NUT
09150-05101
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
CABLE,CLUTCH
58200-29000
Superseded by 58200-31601
|
$17.72 | ||
|
Available to order. Add to View Price |
|||
|
#7
CABLE ASSY, CLUTCH
58200-28301
|
$14.38 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
08312-11088
Superseded by 08310-00087
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SEAL,DUST
09287-07002
Superseded by 09287-07006
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP, CLUTCH CABLE
09403-13401
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
02111-06128
Superseded by 02112-06127
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
CABLE,THROTTLE
58300-28000
Superseded by 58300-28002
|
$24.26 | ||
|
Available to order. Add to View Price |
|||
|
#13
CABLE ASSY, THROTTLE NO.1
58300-29600
|
$34.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
CABLE,THROTTLE
58300-29610
Superseded by 58300-29623
|
$22.73 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL,DUST
09287-07002
Superseded by 09287-07006
|
$2.43 | ||
|
Unavailable |
|||
|
#16
BAND
09407-12402
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP
09407-11302
Superseded by 09407-18302
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP
09408-00001
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP
09408-00002
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP
09408-00014
|
$1.11 | ||
|
Unavailable |
|||
|
#20
QUIDE, CABLE
58621-28000
|
$5.93 | ||
|
Unavailable |
|||
|
#21
MIRROR ASSY,RR
56500-31010
Superseded by 56500-23412
|
$89.31 | ||
|
Available to order. Add to View Price |
|||
|
#21
MIRROR ASSY,RR
56500-31011
Superseded by 56500-31014
|
$61.01 | ||
|
Available to order. Add to View Price |
|||
|
#21
MIRROR ASSY,RR
56600-31010
Superseded by 56600-23412
|
$89.31 | ||
|
Available to order. Add to View Price |
|||
|
#21
MIRROR ASSY,RR
56600-31011
Superseded by 56600-31014
|
$61.01 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT,STEERING STEM (25X44X10)
51631-28000
|
$18.76 | ||
|
Available to order. Add to View Price |
|||
|
#23
RACE, STEERING INNER,UPPER
51611-20002
|
$12.92 | ||
|
Available to order. Add to View Price |
|||
|
#24
RACE, INNER LOWER
51611-33002
|
$17.56 | ||
|
Available to order. Add to View Price |
|||
|
#25
RACE, STEERING OUTER,UPPER
51621-28000
|
$12.92 | ||
|
Available to order. Add to View Price |
|||
|
#26
STEEL BALL
06111-06003
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#27
STEEL BALL
06111-08003
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#28
DUST SEAL, STEERING UPPER
51643-25001
|
$5.63 | ||
|
Available to order. Add to View Price |
|||
