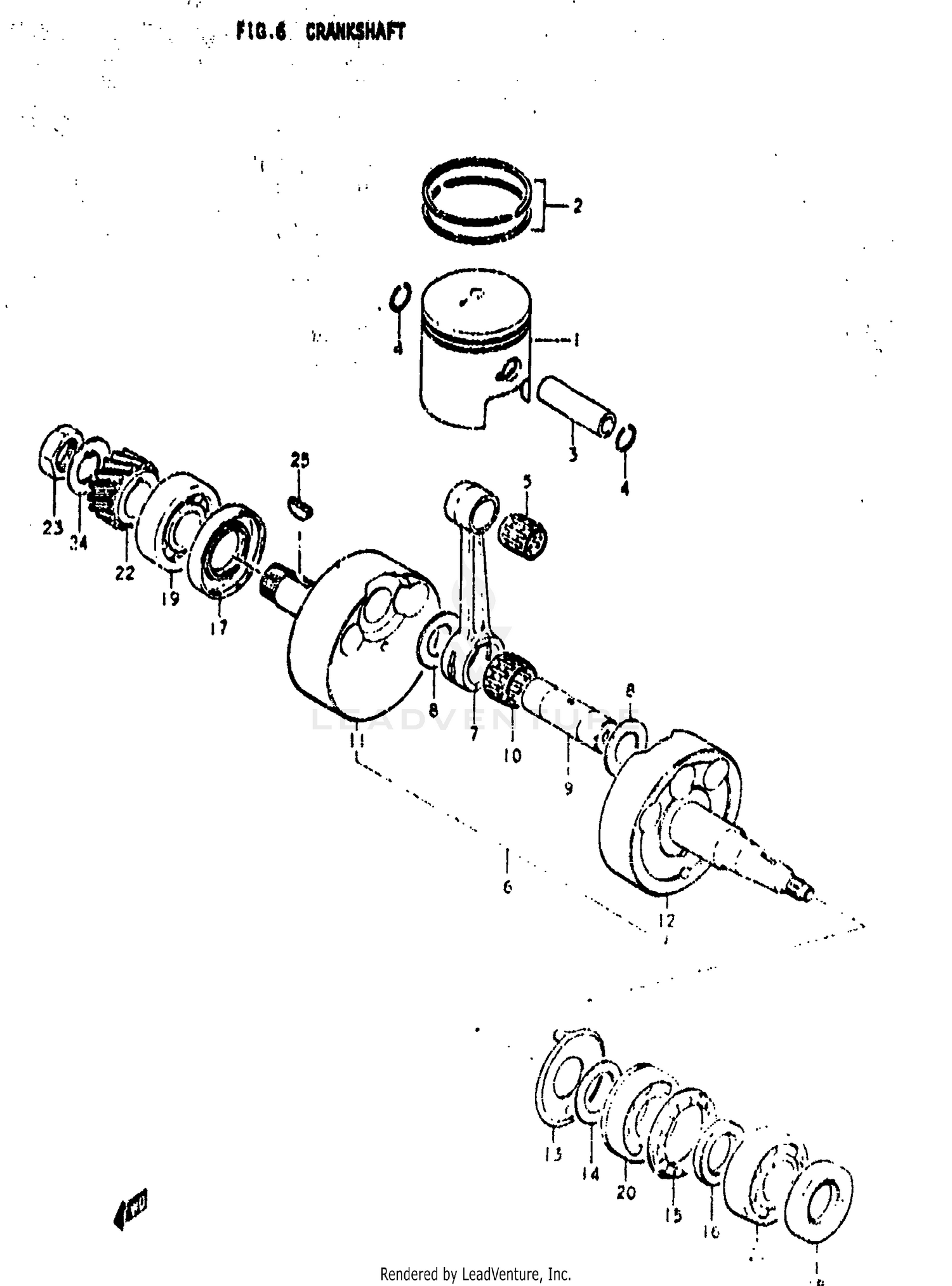

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PISTON
12110-29000
Superseded by 12110-29001
|
$75.35 | ||
|
Available to order. Add to View Price |
|||
|
#1
PISTON
12110-29001
|
$75.35 | ||
|
Unavailable |
|||
|
#1
PISTON SET
12110-29710
Superseded by 12103-29830-050
|
$127.88 | ||
|
Available to order. Add to View Price |
|||
|
#1
PISTON SET
12110-29711
Superseded by 12103-29830-050
|
$127.88 | ||
|
Unavailable |
|||
|
#1
NO DESCRIPTION AVAILABLE
12110-29720
Superseded by 12110-29001-100
|
$142.31 | ||
|
Unavailable |
|||
|
#1
NO DESCRIPTION AVAILABLE
12110-29721
Superseded by 12110-29001-100
|
$142.31 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON
12140-29010
|
$44.15 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING SET, PLSTON
12140-29710
Superseded by 12140-29010-050
|
$46.97 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING SET, PLSTON
12140-29760
Superseded by 12140-97311
|
$36.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, PISTON
12151-29000
Superseded by 12151-29001
|
$14.62 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
09381-16001
|
$1.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
RN 16X21X19.6BR
09263-16005
Superseded by 09263-16015
|
$19.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
CRANKSHAFT SET
12200-29810
|
$190.96 | ||
|
Unavailable |
|||
|
#7
CONECTING ROD
12161-93000
Superseded by 12161-41500
|
$142.61 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
09160-22010
|
$6.87 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, CRANK
12211-29001
|
$41.96 | ||
|
Available to order. Add to View Price |
|||
|
#10
RN 22X28X16 BRG
09263-22006
Superseded by 09263-22032
|
$28.97 | ||
|
Available to order. Add to View Price |
|||
|
#11
CRANKSHAFT, RH
12221-29002
|
$63.93 | ||
|
Unavailable |
|||
|
#12
CRANKSHAFT, LH
12261-29001
|
$78.69 | ||
|
Unavailable |
|||
|
#13
PLATE, OIL GUIDE
12511-29001
|
|||
|
Unavailable |
|||
|
#13
PLATE, OIL GUIDE
12511-29100
|
$10.88 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM
08221-25345
|
$1.11 | ||
|
Unavailable |
|||
|
#15
SPACER, CRANKSHAFT
12353-29001
|
$3.34 | ||
|
Unavailable |
|||
|
#16
SPACER
09180-25035
|
$1.96 | ||
|
Unavailable |
|||
|
#17
OIL SEAL, RH
09283-26007
|
$8.98 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL, LH
09283-25037
Superseded by 09283-25066
|
$9.13 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING, COUNTER SHAFT
09262-20009
Superseded by 09262-20073
|
$28.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BEARING, LH
08163-62050
|
$28.97 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, LH
08113-62050
Superseded by 09262-25003
|
$30.23 | ||
|
Available to order. Add to View Price |
|||
|
#22
GEAR, PRIMARY DRIVE
21111-29000
|
$51.42 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
09140-18002
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER
09166-18001
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#25
KEY
08341-31059
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
