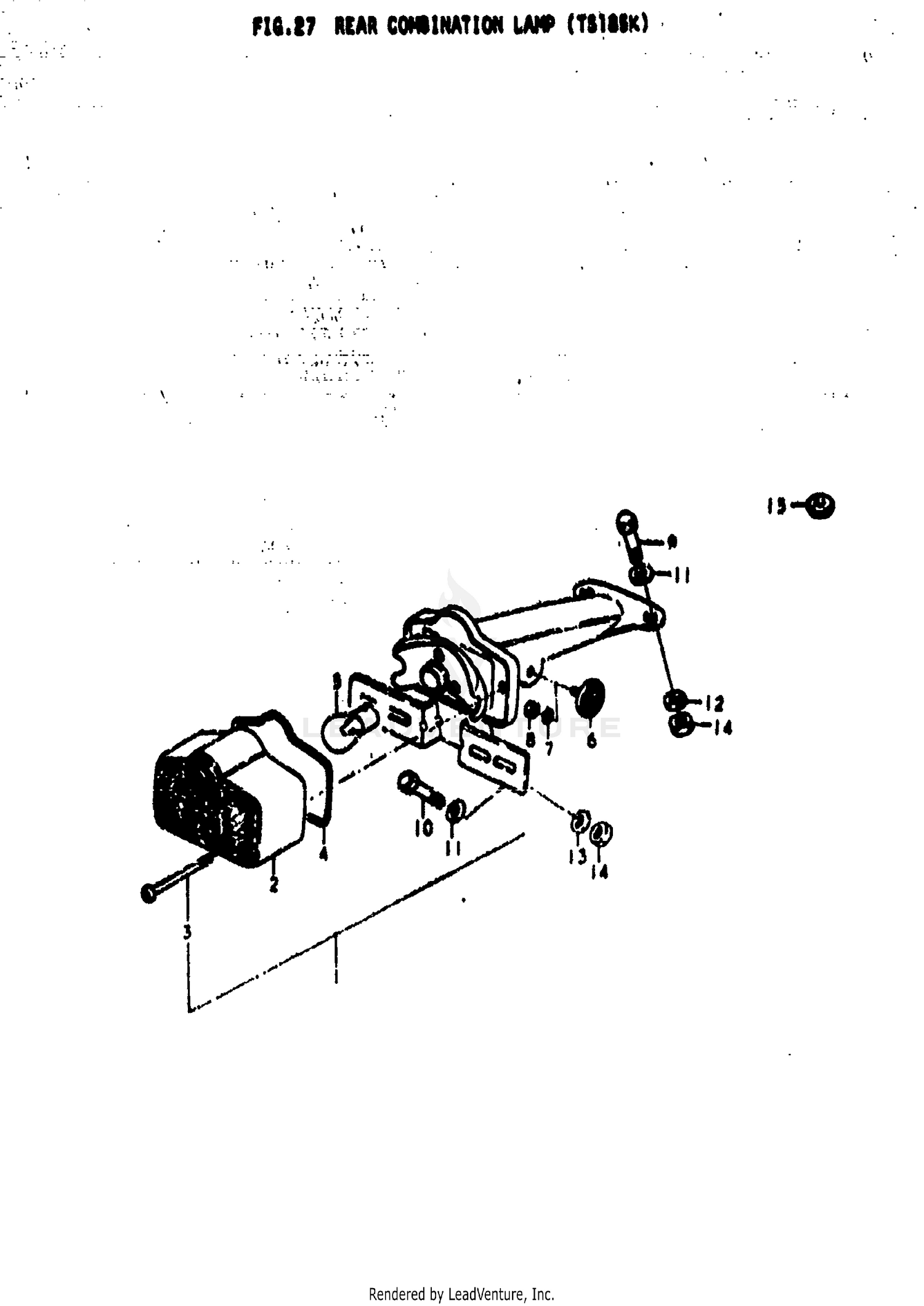

Rear Combination Lamp (ts185k) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, REAR COMBINATION
35710-28691
|
$49.14 | ||
|
Unavailable |
|||
|
#2
LENS RR COMB LA
35712-27630
Superseded by 35712-23011
|
$64.59 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW 4X55
02111-04558
Superseded by 02112-04558
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
35713-27630
|
$6.81 | ||
|
Available to order. Add to View Price |
|||
|
#5
BULB
09471-06030
|
$6.08 | ||
|
Available to order. Add to View Price |
|||
|
#6
REFLEX REFLECTOR, REAR
35970-31610
|
$18.98 | ||
|
Unavailable |
|||
|
#7
WASHER,LOCK
08321-21038
Superseded by 09162-03001
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
08311-11058
Superseded by 08310-00057
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, REAR
09100-06039
Superseded by 01500-0625A
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, REAR
09100-06039
Superseded by 01500-0625A
|
$2.15 | ||
|
Unavailable |
|||
|
#11
WASHER
08322-21048
Superseded by 08322-01047
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
LOCK WASHER
08323-21068
Superseded by 08323-31068
|
$0.63 | ||
|
Unavailable |
|||
|
#14
.NUT
08311-11068
Superseded by 08310-00067
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
GROMMET
09308-07002
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
