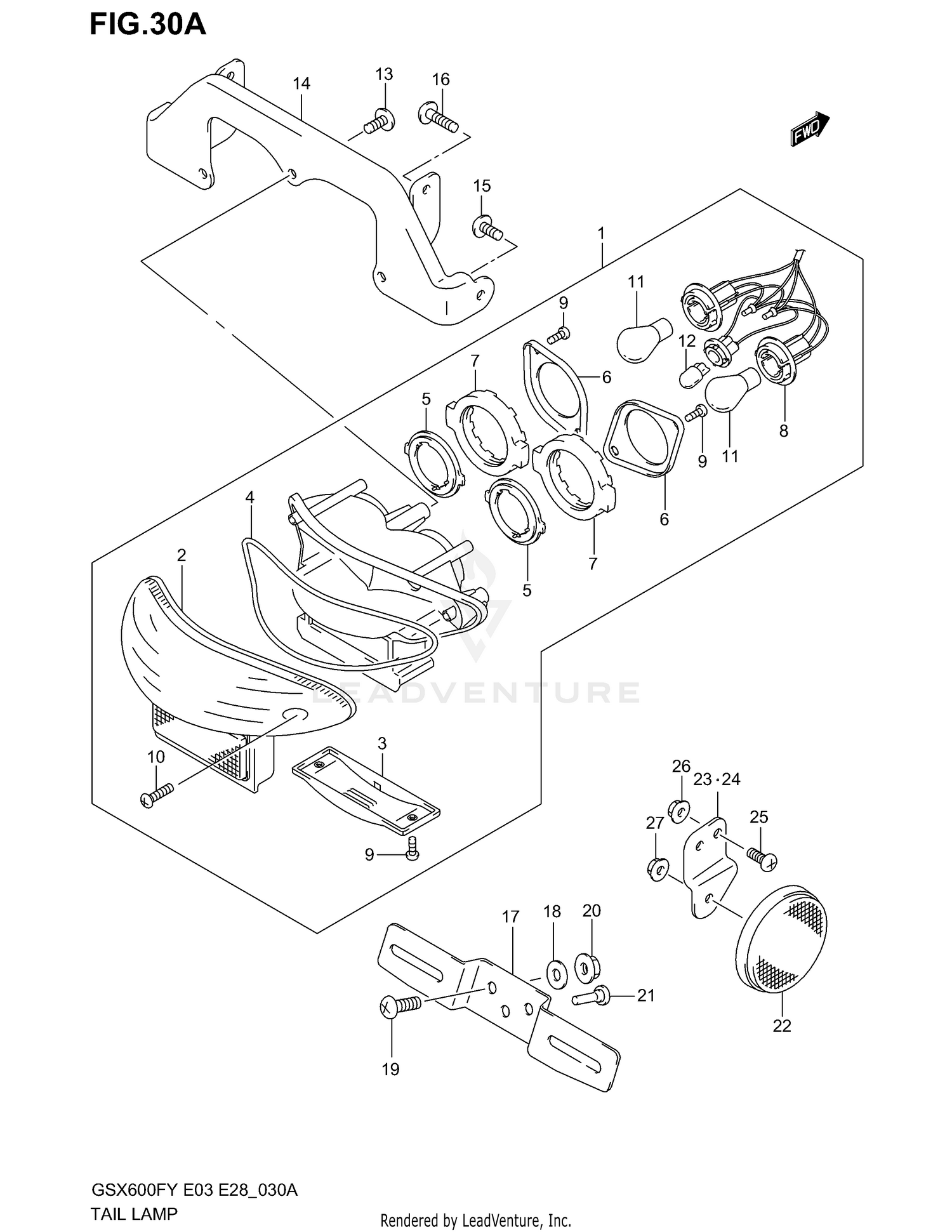

Tail Lamp (model K3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, REAR COMBINATION
35710-24F30
|
$249.23 | ||
|
Available to order. Add to View Price |
|||
|
#2
LENS
35712-24F30
|
$38.01 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
LENS, LICENSE
35912-24F00
|
$17.67 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
35713-24F00
|
$9.47 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, NO.1
35716-48B21
|
$22.83 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, NO.2
35736-48B21
|
$24.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION
35765-48B21
|
$14.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
SOCKET & CORD
35718-24F00
|
$108.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
03211-04123
Superseded by 03211-0412A
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
03211-04207
|
$1.63 | ||
|
Available to order. Add to View Price |
|||
|
#11
BULB (12V,21/5W)
09471-12083
Superseded by 09471-12128
|
$8.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
.BULB (12V5W)
09471-12081
Superseded by 09471-12216
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
03541-05163
Superseded by 03541-0516A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET, REAR COMB
35726-08F00
|
$27.24 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SCREW
03541-05163
Superseded by 03541-0516A
|
$1.70 | ||
|
Unavailable |
|||
|
#16
SCREW
03541-05253
Superseded by 03541-0525B
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET, LICENSE PLATE
35927-24F00
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER (6.5X20X1.6)
09160-06088
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#19
.SCREW
02142-06163
Superseded by 02142-0616A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
08316-10063
Superseded by 08316-1006B
|
$3.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CUSHION
09321-06026
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#22
REFLECTOR ASSY,RR SIDE
35970-14A20
|
$20.07 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET, REAR RH
35975-08F10
|
$6.44 | ||
|
Unavailable |
|||
|
#24
BRACKET, REAR LH
35976-08F10
|
$6.44 | ||
|
Unavailable |
|||
|
#25
SCREW
02112-05123
Superseded by 02112-0512A
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
08316-10053
Superseded by 08316-1005A
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT
08316-10053
Superseded by 08316-1005A
|
$2.72 | ||
|
Unavailable |
|||
