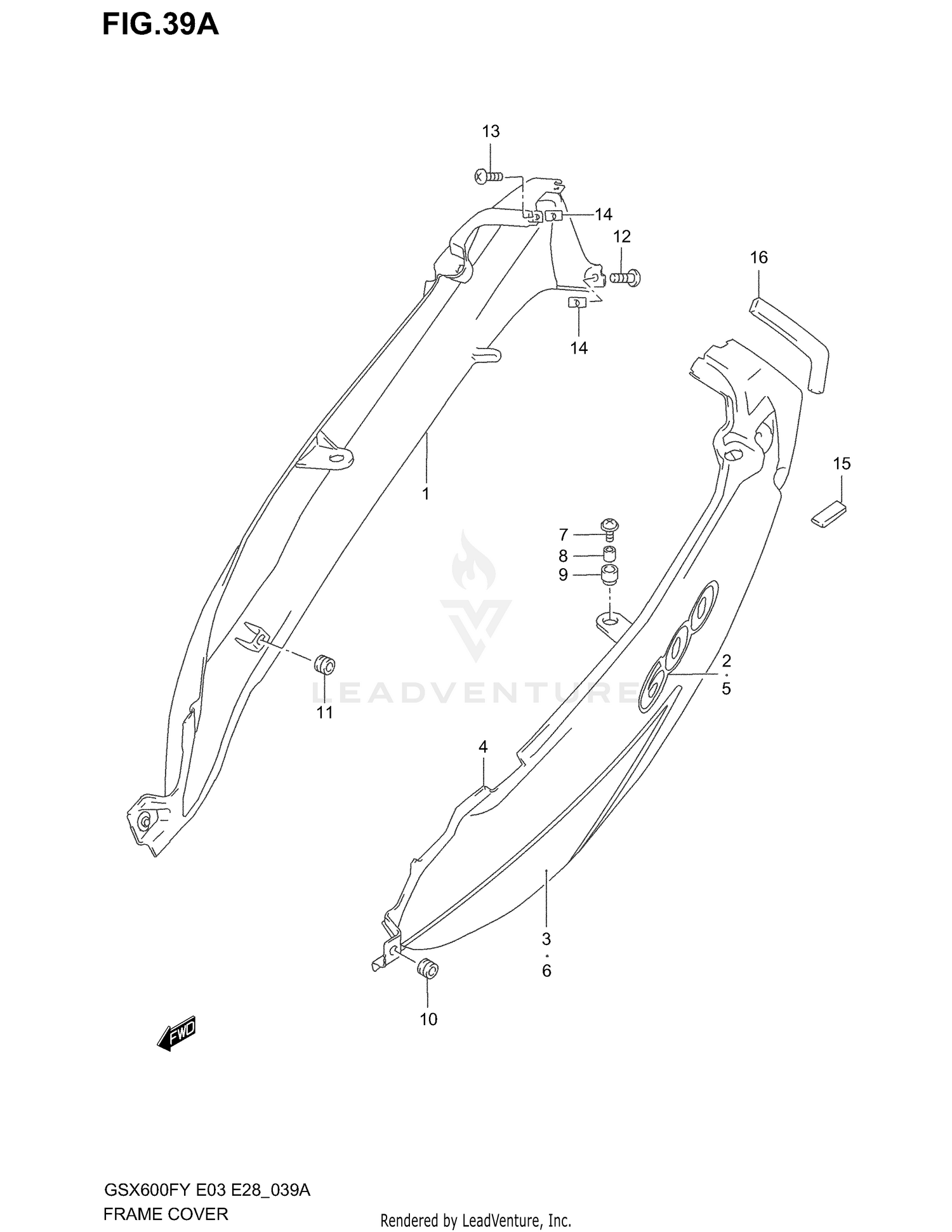

Frame Cover (model Y) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, FRAME RH (BLUE)
47110-08F40-Y7E
|
$272.37 | ||
|
Available to order. Add to View Price |
|||
|
#1
COVER, FRAME RH (RED)
47110-08F40-Y7M
|
$183.85 | ||
|
Unavailable |
|||
|
#2
EMBLEM, RH
68131-08F40-BC6
|
$12.96 | ||
|
Unavailable |
|||
|
#2
EMBLEM, RH
68131-08F40-BC8
|
$13.61 | ||
|
Unavailable |
|||
|
#3
TAPE, RH
68135-08F00-BF7
|
$37.88 | ||
|
Unavailable |
|||
|
#3
TAPE, RH
68135-08F00-BF9
|
$26.91 | ||
|
Unavailable |
|||
|
#4
COVER, FRAME LH (BLUE)
47210-08F40-Y7E
|
$254.17 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, FRAME LH (RED)
47210-08F40-Y7M
|
$272.37 | ||
|
Unavailable |
|||
|
#5
EMBLEM, LH
68131-08F40-BC6
|
$12.96 | ||
|
Unavailable |
|||
|
#5
EMBLEM, LH
68131-08F40-BC8
|
$13.61 | ||
|
Unavailable |
|||
|
#6
TAPE, LH
68145-08F00-BF7
|
$37.88 | ||
|
Unavailable |
|||
|
#6
TAPE, LH
68145-08F00-BF9
|
$37.88 | ||
|
Unavailable |
|||
|
#7
SCREW, UPPER
09136-06105
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER
09180-06286
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION
09320-10045
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION
09320-08028
|
$3.81 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
CUSHION
09320-08018
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
03241-15163
Superseded by 03241-1516A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
03241-15123
Superseded by 03241-1512B
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
09148-05038
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION (10X30X2)
44894-24A00
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#16
CUSHION
47161-08F00
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
