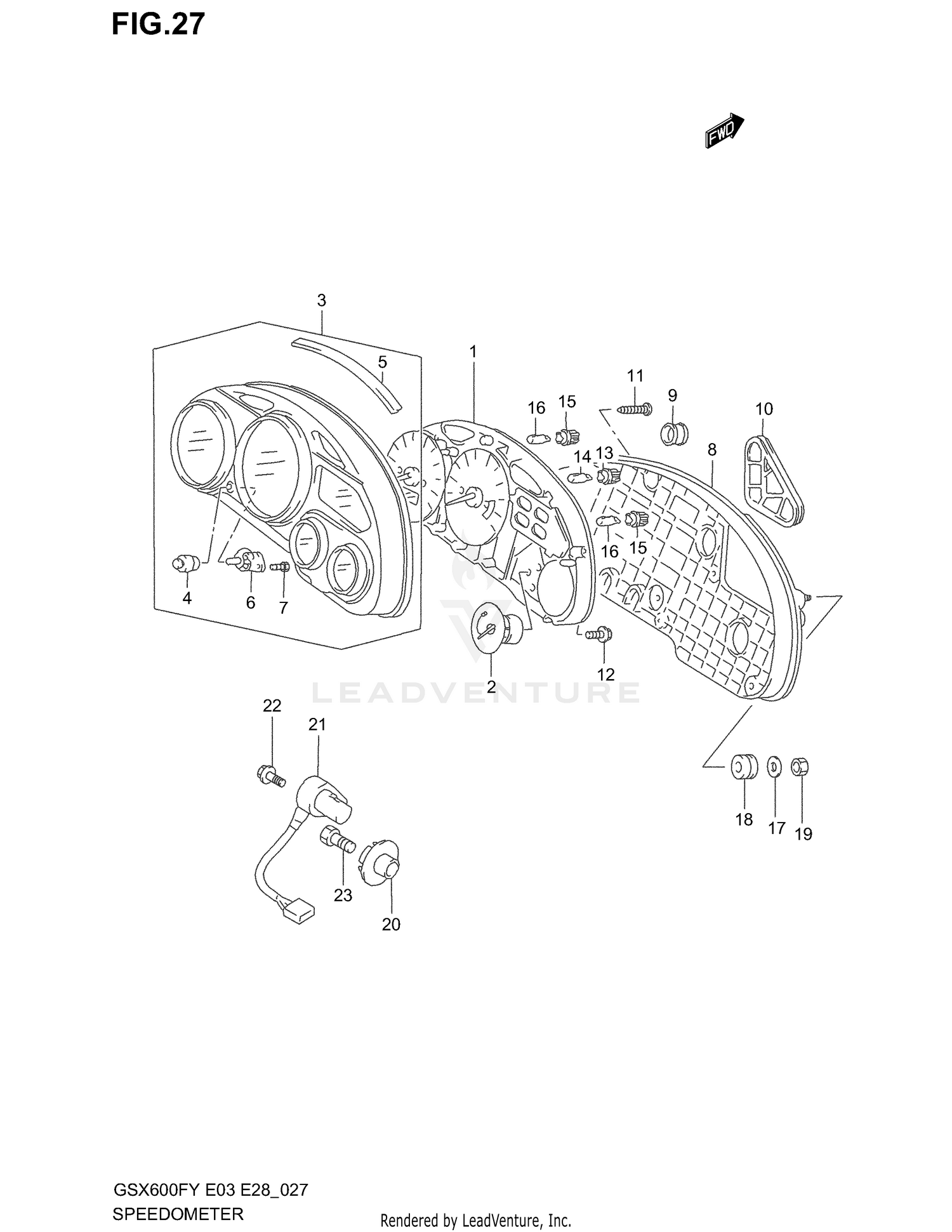

Speedometer (model W/x) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER (MILE/KILO)
34120-08F20
|
$711.54 | ||
|
Unavailable |
|||
|
#1
SPEEDOMETER (KILO)
34120-08F10
|
|||
|
Unavailable |
|||
|
#2
FUEL METER
34320-08F10
Superseded by 34320-08F50
|
$97.98 | ||
|
Unavailable |
|||
|
#3
VISOR ASSY
34150-08F10
|
$80.94 | ||
|
Available to order. Add to View Price |
|||
|
#4
SWITCH, GUM
34124-33E00
|
$6.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
PACKING
34153-21EA0
|
$10.68 | ||
|
Available to order. Add to View Price |
|||
|
#6
ATTACHMENT, SWITCH
34123-33E00
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD (3X10)
09132-03005
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#8
CASE ASSY
34130-08F11
|
$62.82 | ||
|
Unavailable |
|||
|
#9
CAP, BLIND NO.1
34198-33E00
|
$3.71 | ||
|
Unavailable |
|||
|
#10
CAP, BLIND
34198-21EA0
|
$6.90 | ||
|
Unavailable |
|||
|
#11
.SCREW
03541-04203
Superseded by 03541-0420A
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
02112-73207
|
$1.57 | ||
|
Unavailable |
|||
|
#13
SOCKET (T6.5)
34172-33E00
|
$8.52 | ||
|
Available to order. Add to View Price |
|||
|
#14
BULB (12V1.7W)
09471-12108
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
SOCKET (T5)
34175-78900
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#16
BULB (14V,1.4W)
09471-12055
|
$6.10 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER (6.5X22X1.6)
09160-06054
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#18
CUSHION
09320-08053
Superseded by 09320-08526
|
$4.31 | ||
|
Unavailable |
|||
|
#19
NUT
08310-00063
Superseded by 08310-0006A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#20
ROTOR,SPEED
34981-42E00
Superseded by 34981-42E01
|
$19.67 | ||
|
Available to order. Add to View Price |
|||
|
#21
SENSOR, SPEED
34990-33E10
Superseded by 34990-35F00
|
$168.77 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
07120-05123
Superseded by 07120-0512B
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
07130-08203
Superseded by 07130-0820B
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
