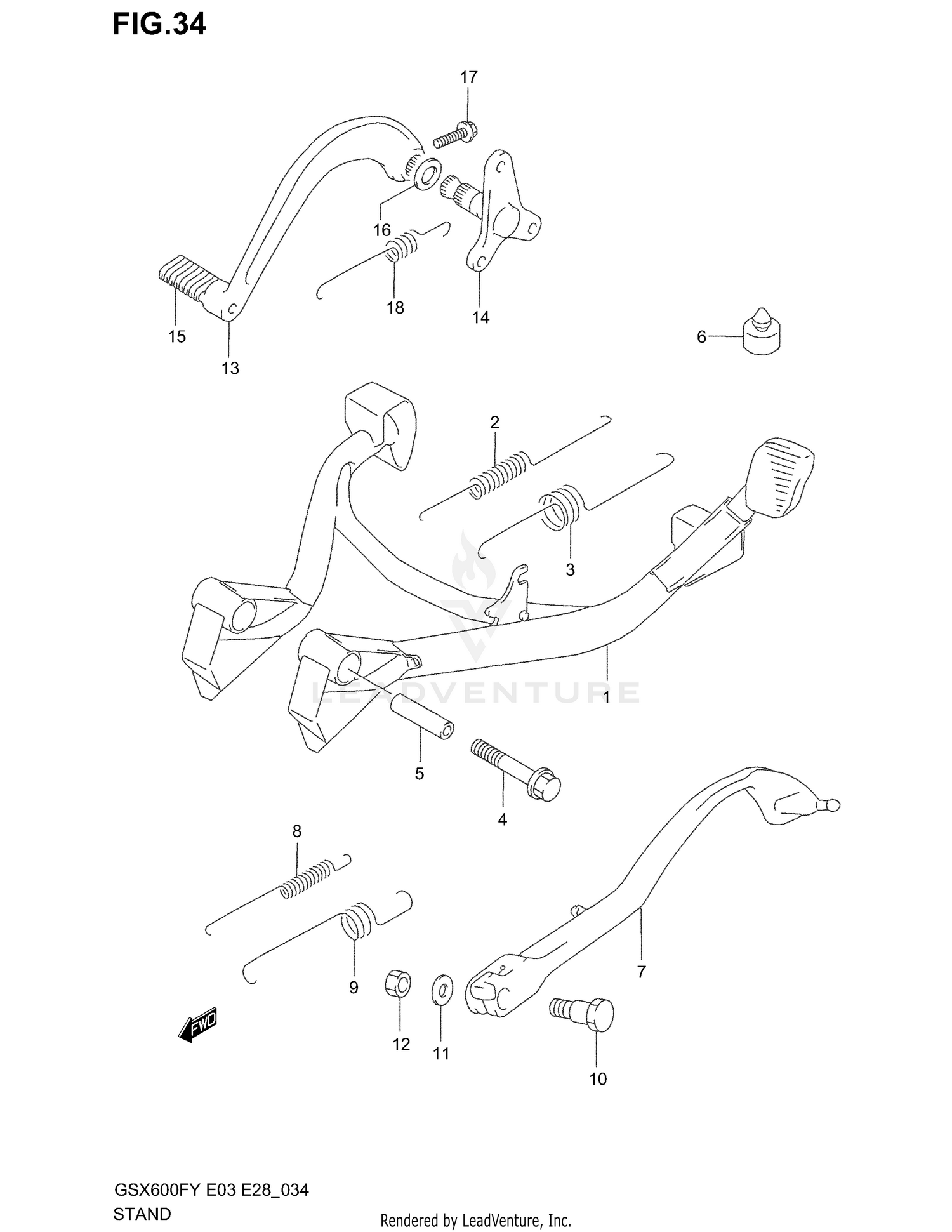

Stand Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, CENTER
42100-08F00
|
$245.92 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, INNER
09443-14059
|
$10.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, OUTER
09443-22013
|
$9.97 | ||
|
Available to order. Add to View Price |
|||
|
#4
ARM, BRAKE ROD
01580-10603
Superseded by 01580-1060B
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER
09180-10040
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION
09321-10017
|
$6.96 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAND, PROP
42310-08F00
Superseded by 42310-08F01
|
$182.28 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAND, PROP
42310-08F01
|
$182.28 | ||
|
Unavailable |
|||
|
#8
SPRING, INNER
09443-12036
|
$9.84 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, OUTER
09443-19010
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
09111-10036
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM
08221-12224
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
09159-10097
|
$7.13 | ||
|
Available to order. Add to View Price |
|||
|
#13
PEDAL, BRAKE
43110-19C02
|
$139.13 | ||
|
Available to order. Add to View Price |
|||
|
#14
ARM, BRAKE PEDAL ROD
43120-19C00
|
$32.91 | ||
|
Unavailable |
|||
|
#15
RUBBER
43151-04701
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, BRAKE BOSS
43212-04A00
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
01547-06253
Superseded by 01547-0625B
|
$3.03 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING
09443-13028
|
$8.23 | ||
|
Available to order. Add to View Price |
|||
