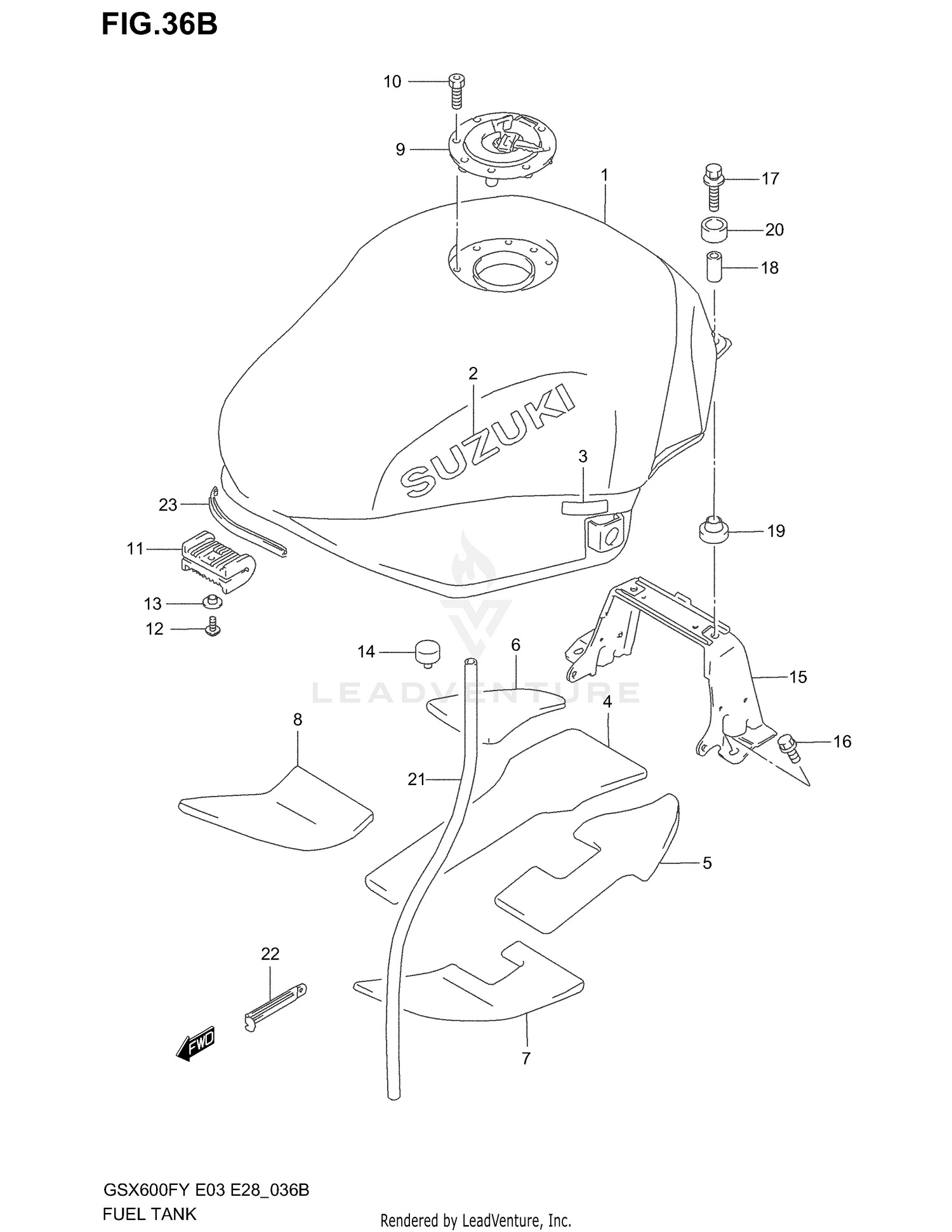

Fuel Tank (model K2/k3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK ASSY,FUEL(
44100-08F00-Y9H
Superseded by 44110-08F00-13L
|
$615.30 | ||
|
Available to order. Add to View Price |
|||
|
#1
TANK ASSY,FUEL(
44100-08F00-YC2
Superseded by 44110-08F00-13L
|
$615.30 | ||
|
Unavailable |
|||
|
#1
TANK ASSY, FUEL (YELLOW)
44100-08F30-Y9H
|
$639.02 | ||
|
Unavailable |
|||
|
#1
TANK ASSY, FUEL (BLUE)
44100-08F30-YC2
|
$678.02 | ||
|
Unavailable |
|||
|
#1
TANK ASSY, FUEL (BLUE)
44100-08F10-YEX
|
$968.73 | ||
|
Available to order. Add to View Price |
|||
|
#1
TANK ASSY, FUEL (YELLOW)
44100-08F10-YU9
|
$733.37 | ||
|
Available to order. Add to View Price |
|||
|
#1
TANK ASSY, FUEL (BLUE)
44100-08F30-YEX
|
$831.64 | ||
|
Available to order. Add to View Price |
|||
|
#1
TANK ASSY, FUEL (YELLOW)
44100-08F30-YU9
|
$855.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
EMBLEM (BLACK)
68111-47C10-Y7L
|
$15.75 | ||
|
Unavailable |
|||
|
#2
.EMBLEM,SUZUKI (SILVER)
68111-47C10-YD8
|
$25.93 | ||
|
Available to order. Add to View Price |
|||
|
#2
EMBLEM (GRAY)
68111-47C10-1ZY
|
$15.00 | ||
|
Unavailable |
|||
|
#2
EMBLEM (BLACK)
68111-47C10-33J
|
$16.07 | ||
|
Unavailable |
|||
|
#3
PROTECTOR, FUEL TANK
32851-10D00
|
$5.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHIELD, HEAT NO.1
44191-08F00
|
$38.96 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHIELD, HEAT NO.2
44192-08F00
|
$39.44 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIELD, HEAT NO.3
44193-08F00
|
$18.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHIELD, HEAT NO.4
44194-08F00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIELD, HEAT NO.5
44195-08F00
|
$20.78 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP SET,FUEL TA
44200-33870
Superseded by 44200-33872
|
$276.76 | ||
|
Unavailable |
|||
|
#9
CAP SET,FUEL TA
44200-33890
Superseded by 44200-33891
|
$281.22 | ||
|
Unavailable |
|||
|
#10
BOLT (5X20)
09106-05017
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION, FUEL TANK FRONT
44510-33D00
|
$22.93 | ||
|
Available to order. Add to View Price |
|||
|
#12
.SCREW
02142-05123
Superseded by 02142-0512A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
09169-05012
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION, FUEL TANK SIDE
09321-10011
|
$3.46 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, REAR
44550-08F00
|
$43.26 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (8X16)
01550-08163
Superseded by 01550-0816A
|
$2.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, REAR
09116-06172
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPACER
09180-06271
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
CUSHION, REAR
09320-10038
|
$3.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
CUSHION, REAR
09320-14017
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
HOSE,FUEL TANK
44423-08F00
Superseded by 44423-08F01
|
$17.57 | ||
|
Unavailable |
|||
|
#22
CLAMP
09404-08420
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
MOLDING, FUEL TANK
68241-08F00
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
