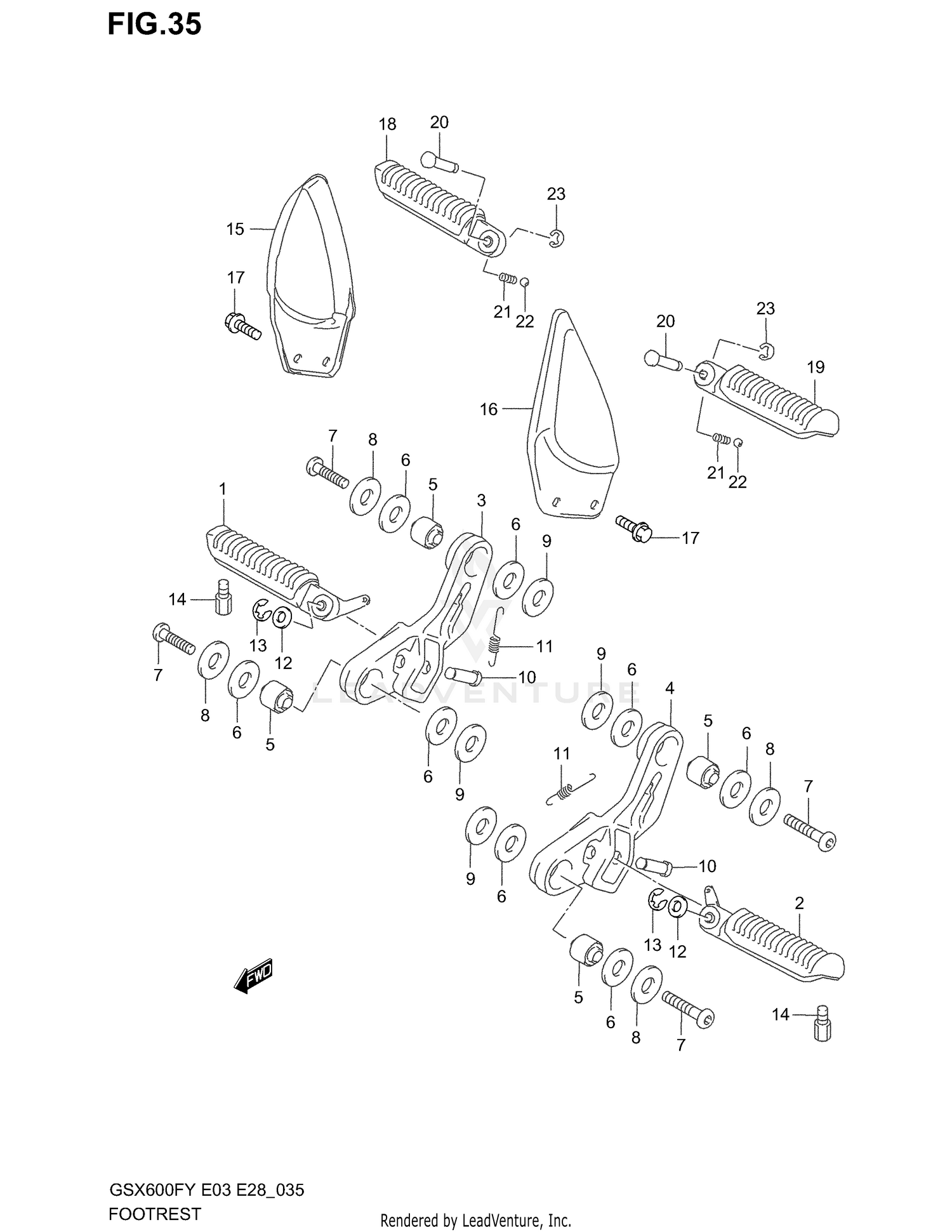

Footrest (model W/x/y) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAR,FR FOOTREST
43510-19C30
Superseded by 43510-19C22
|
$117.34 | ||
|
Available to order. Add to View Price |
|||
|
#1
BAR,FR FOOTREST
43510-19C31
Superseded by 43510-19C22
|
$117.34 | ||
|
Unavailable |
|||
|
#2
BAR,FR FOOTREST
43520-19C30
Superseded by 43520-19C22
|
$119.54 | ||
|
Available to order. Add to View Price |
|||
|
#2
BAR,FR FOOTREST
43520-19C31
Superseded by 43520-19C22
|
$119.54 | ||
|
Unavailable |
|||
|
#3
HOLDER, FRONT FOOTREST RH
43531-19C00
|
$86.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER, FRONT FOOTREST LH
43541-19C00
|
$81.90 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH, HOLDER
09319-08033
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, HOLDER
09161-12006
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
09106-08137
|
$7.32 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, MUFFLER SUPPORT
09160-08138
Superseded by 09160-08503
|
$3.06 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, INNER
09160-08503
|
$3.06 | ||
|
Unavailable |
|||
|
#10
PIN
09208-08010
|
$3.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SPRING
09443-08049
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER,LOCK
08322-01083
Superseded by 08322-0108A
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#13
E-RING
08332-11063
Superseded by 08332-1106A
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#14
.BOLT,BANK SENSOR
43576-07D01
|
$10.93 | ||
|
Available to order. Add to View Price |
|||
|
#15
GUARD, FRONT FOOTREST RH
43571-08F00
|
$31.99 | ||
|
Unavailable |
|||
|
#16
GUARD, FRONT FOOTREST LH
43581-08F00
|
$31.99 | ||
|
Unavailable |
|||
|
#17
BOLT
09106-08128
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAR, PILLION FOOTREST RH
43610-20C00
Superseded by 43610-20C01
|
$79.51 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAR, PILLION FOOTREST RH
43610-20C01
|
$79.51 | ||
|
Unavailable |
|||
|
#19
BAR, PILLION FOOTREST LH
43710-20C00
Superseded by 43710-20C01
|
$79.51 | ||
|
Available to order. Add to View Price |
|||
|
#19
BAR, PILLION FOOTREST LH
43710-20C01
|
$79.51 | ||
|
Unavailable |
|||
|
#20
PIN
09208-08011
|
$3.41 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING
09440-05005
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#22
BALL
06111-07004
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#23
E-RING
08332-11063
Superseded by 08332-1106A
|
$1.73 | ||
|
Unavailable |
|||
