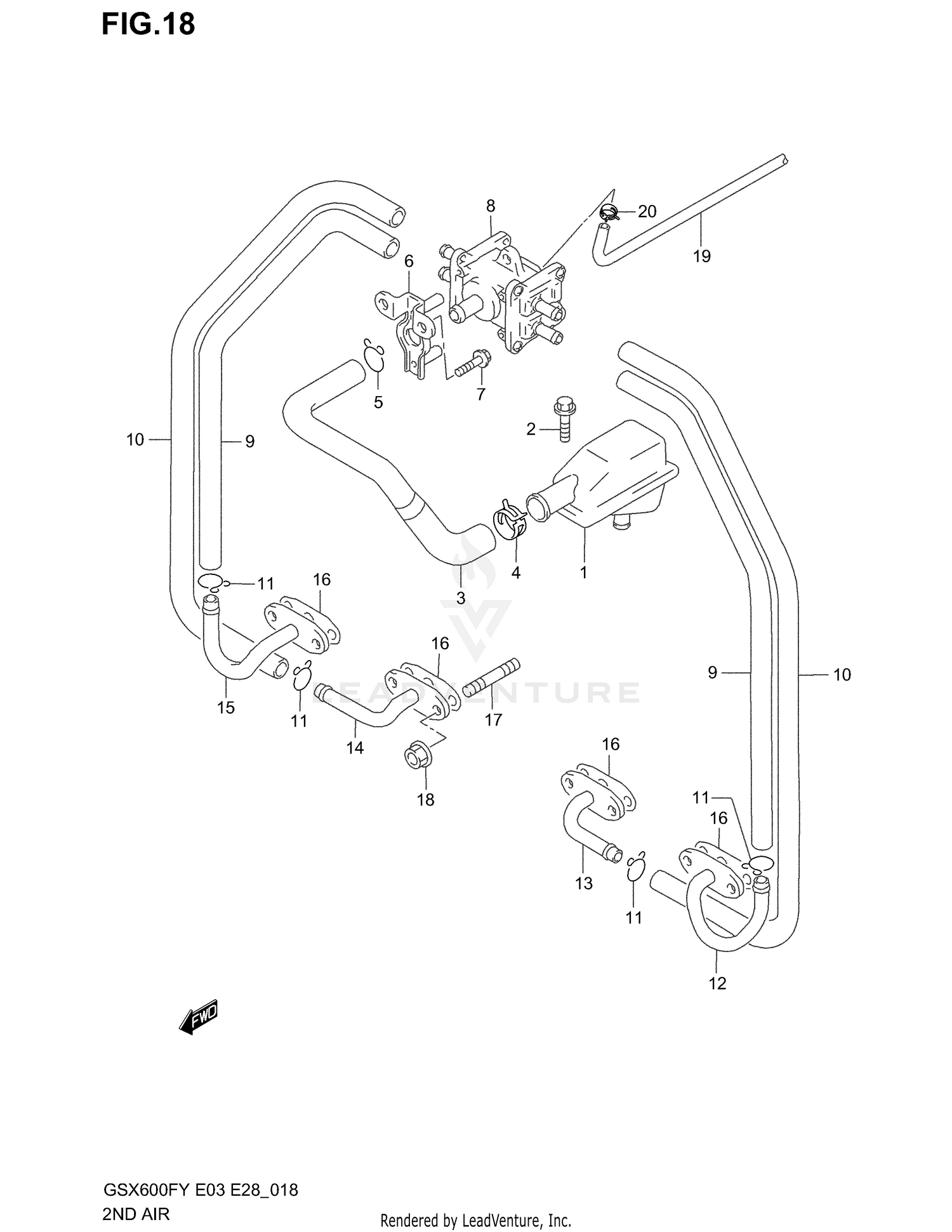

2nd Air (e33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLEANER, 2ND AIR
13800-27E00
|
$58.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
01550-06163
Superseded by 01550-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE, 2ND AIR CLEANER
18711-08F00
|
$14.96 | ||
|
Unavailable |
|||
|
#4
CLIP, NO.1
09401-18404
|
$2.29 | ||
|
Unavailable |
|||
|
#5
CLIP, NO.2
09401-15401
|
$1.76 | ||
|
Unavailable |
|||
|
#6
BRACKET, 2ND AIR VALVE
18610-08F00
|
$21.77 | ||
|
Unavailable |
|||
|
#7
BOLT
01550-06163
Superseded by 01550-0616A
|
$2.45 | ||
|
Unavailable |
|||
|
#8
VALVE ASSY,2ND
18450-33E10
Superseded by 18450-33E13
|
$251.28 | ||
|
Available to order. Add to View Price |
|||
|
#8
VALVE ASSY,2ND
18450-33E12
Superseded by 18450-33E13
|
$251.28 | ||
|
Unavailable |
|||
|
#9
HOSE, 2ND AIR VALVE OUTER
18461-08F00
|
$14.45 | ||
|
Unavailable |
|||
|
#10
HOSE, 2ND AIR VALVE INNER
18471-08F00
|
$18.56 | ||
|
Unavailable |
|||
|
#11
CLIP (ID:13.5)
09401-13409
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIPE, 2ND AIR NO.1
18410-20C00
|
$29.37 | ||
|
Unavailable |
|||
|
#13
PIPE, 2ND AIR NO.2
18420-19C02
|
$28.23 | ||
|
Unavailable |
|||
|
#14
PIPE, 2ND AIR NO.3
18430-19C02
|
$28.23 | ||
|
Unavailable |
|||
|
#15
PIPE, 2ND AIR NO.4
18440-20C00
|
$29.37 | ||
|
Unavailable |
|||
|
#16
GASKET, 2ND AIR PIPE
18441-17C10
Superseded by 18441-17C11
|
$9.64 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET, 2ND AIR PIPE
18441-17C11
|
$9.64 | ||
|
Unavailable |
|||
|
#17
BOLT,STUD
01421-06163
Superseded by 01421-0616A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
08316-10063
Superseded by 08316-1006B
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE, 2ND AIR VALVE VACUUM
09359-45852-600
|
$7.34 | ||
|
Unavailable |
|||
|
#20
CLIP, HOSE
09401-07402
Superseded by 09401-06405
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
