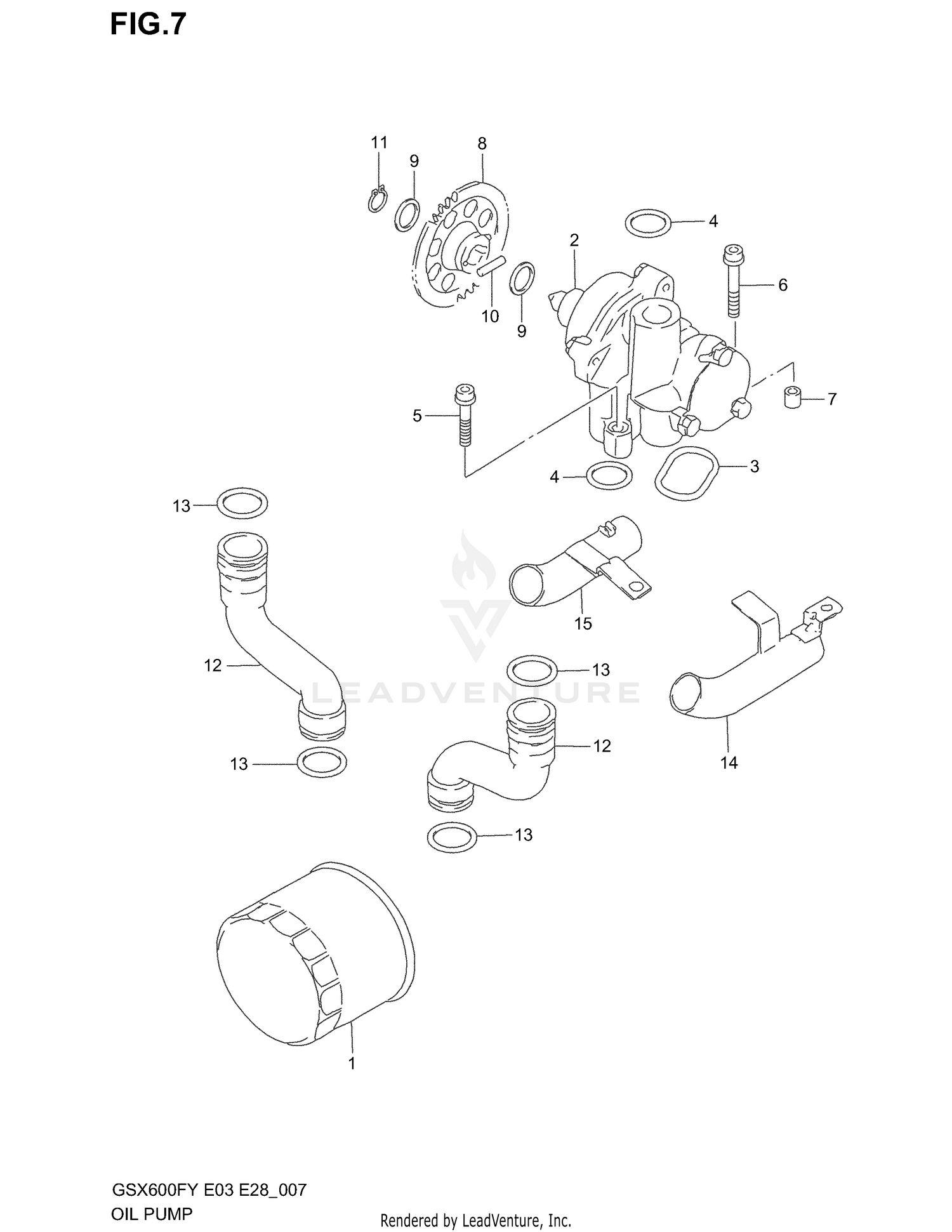

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FILTER ASSY,ENGINE OIL
16510-34E00
Superseded by 16510-07J10
|
$16.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
PUMP ASSY, ENGINE OIL
16400-06B30
Superseded by 16400-06B31
|
$407.19 | ||
|
Available to order. Add to View Price |
|||
|
#3
O RING, OIL PUMP
16491-27A01
|
$10.51 | ||
|
Available to order. Add to View Price |
|||
|
#4
O RING (D:3.2,ID:17.8)
09280-18009
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
07130-06303
Superseded by 07130-0630B
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT (6X30)
09106-06089
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
07130-06353
Superseded by 07130-0635B
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT (6X35)
09106-06088
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN
04211-09129
|
$2.06 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, OIL PUMP DRIVEN
16332-19C00
|
$83.31 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
08221-12205
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN
09261-05006
|
$1.84 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP
08331-31126
Superseded by 08331-3112A
|
$2.21 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
PIPE, OUTLET
16481-17D00
|
$57.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
.O RING (D:3.7,ID:21.7)
09280-22016
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIPE, OIL UNDER,LH
16530-27A02
|
$14.58 | ||
|
Unavailable |
|||
|
#15
PIPE, OIL UNDER,RH
16540-27A02
|
$22.75 | ||
|
Available to order. Add to View Price |
|||
