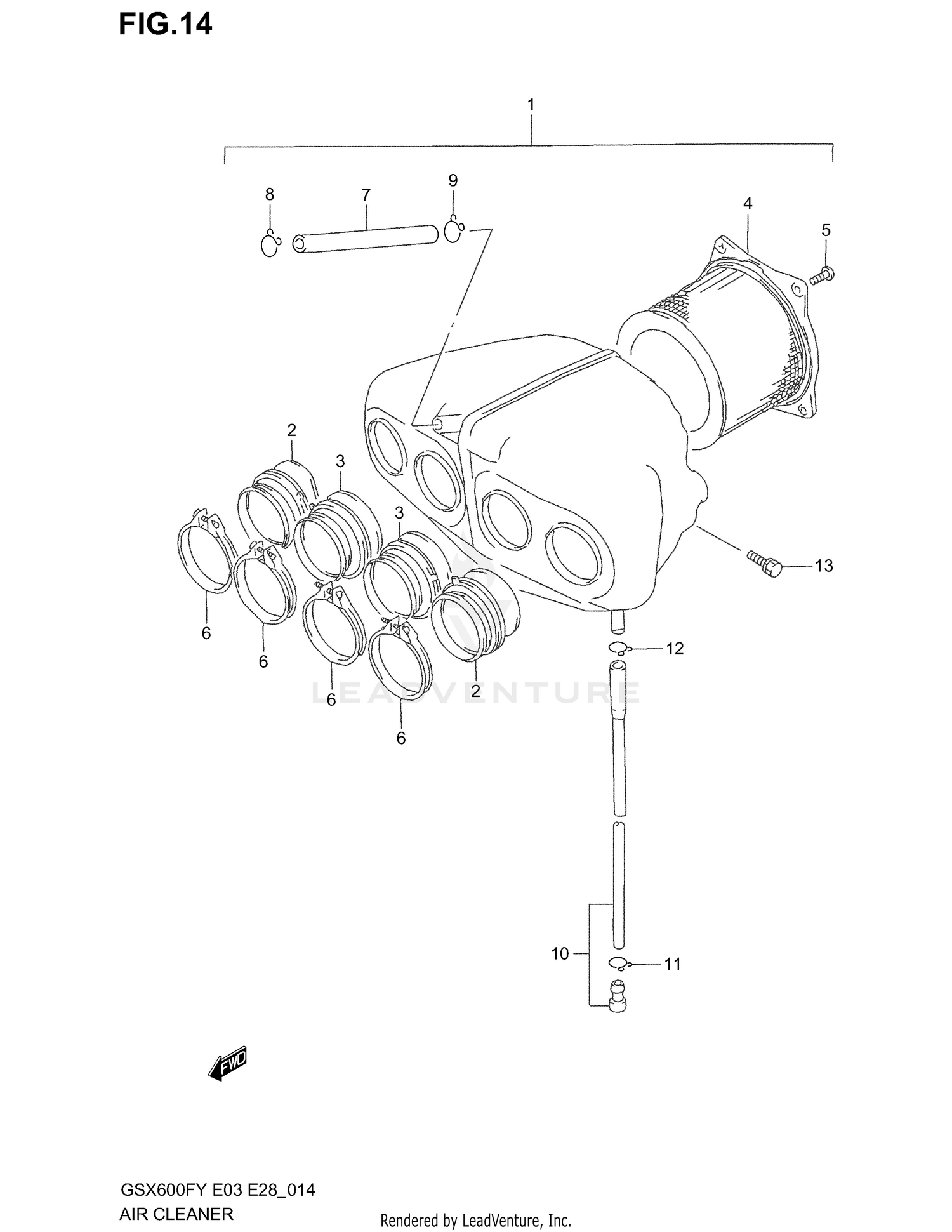

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLEANER ASSY, AIR
13700-19E00
|
$220.59 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTLET OUTSIDE
13881-19E00
|
$30.54 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE, OUTLET INSIDE
13882-19E00
|
$34.23 | ||
|
Available to order. Add to View Price |
|||
|
#4
FILTER
13780-20C00
|
$68.83 | ||
|
Available to order. Add to View Price |
|||
|
#5
.SCREW
02142-05123
Superseded by 02142-0512A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#6
.CLAMP
09402-58208
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
TUBE, BREATHER
13853-19C00
|
$17.41 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP
09401-14301
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP
09401-16401
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#10
TUBE,DRAIN
13870-11458
Superseded by 13870-11459
|
$20.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP (ID:13.5)
09401-13409
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP (ID:13.5)
09401-13409
|
$2.67 | ||
|
Unavailable |
|||
|
#13
BOLT
01580-06163
Superseded by 01580-0616A
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
